[系统运维]《操作系统真象还原》第十五章 ---- 实现系统交互操作系统最终章三十五天的不易与坚持终完结撒花（中）

本书中错误勘误

这两节中 PANIC和ASSERT在书中全部小写
应该改过来全部改成大写即可

在编写pad_print函数中 switch中间刚哥加了个小补丁
补丁下面没有加break 需要加上哈

这个是超级错误终极错误我们最后的buildin_cmd文件要用shell.c的全局变量final_path 如果我们用extern来引用全局变量这里注意千万不能在声明全局变量的时候直接初始化我们尽量在函数里面memset就行了这里如果我们在外面文件要用那么就不能直接初始化注意注意！
就是那个语句
char final_path[MAX_PATH_LEN] = {0}
后面的初始化一定不要！这里的话我把链接贴过来这里说了千万不可不然的话全局变量改变不了
嵌入式—C语言—全局变量和extern的用法

还有我发现需要memset我们的全局变量argv[MAX_ARG_NR] 因为我发现我不重置的话命令输入输的多了就自动停止了直到我memset了才解决了问题不清楚为什么会这个样子

部分缩写熟知

/r 回车
/b 倒格
prompt 立刻迅速的

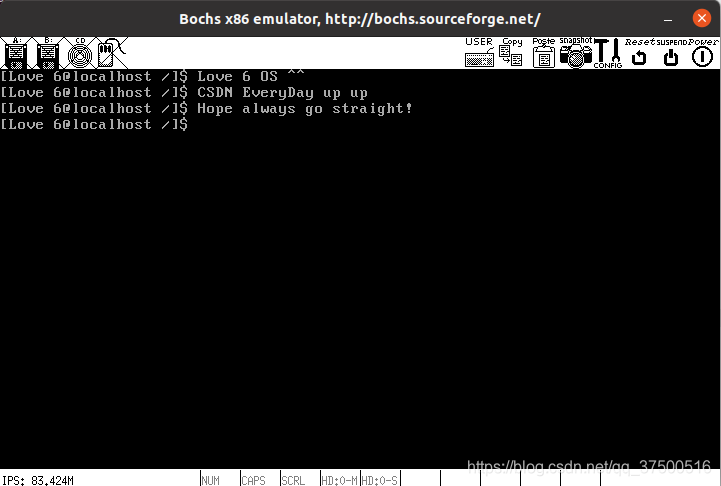

实现shell（仅完成了输出+快捷键+解析字符）

哈哈刚刚在书上面刚刚看到一个比较有意思的东西
在shell.c里面输出提示符刚哥把提示符的字符串写的是
[rabbit@localhost /]$
不知道认真看过这本书每一个字的hxd们知道这个是什么哈哈
rabbit是刚哥的亲爱的老婆王小兔的英文哈哈
尽管说IT人大部分都是追求技术的极客们哈哈性格直心思少
但是还是能看出刚哥的生活和态度还是很让人喜悦的哈哈

看到还是让人忍俊不禁啊哈哈那人家写rabbit
我作为博客博主还是写个Love6吧有始有终毕竟最后一章了毕竟这个操作系统是自己一个字一个字打出来的留下自己的痕迹那就定下来是
[Love 6@localhost /]$吧哈哈

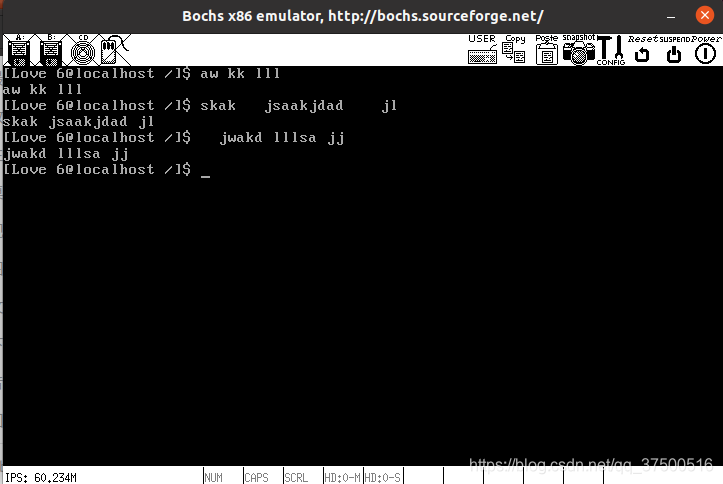

编写完的shell.c（仅完成了输出+快捷键+解析字符）

#include "shell.h"
#include "global.h"
#include "stdint.h"
#include "string.h"
#include "syscall.h"
#include "stdio.h"
#include "../fs/file.h"
#include "../kernel/debug.h"

#define cmd_len    128 //最大支持128个字符
#define MAX_ARG_NR 16  //命令名外支持15个参数

char cmd_line[cmd_len] = {0};
char cwd_cache[64] = {0}; //目录的缓存 执行cd则移动到其他目录去
char* argv[MAX_ARG_NR];   //参数

//固定输出提示副
void print_prompt(void)
{
    printf("[Love 6@localhost %s]$ ",cwd_cache);
}

//最多读入count字节到buf
void readline(char* buf,int32_t count)
{
    ASSERT(buf != NULL && count > 0);
    char* pos = buf;
    //默认没有到回车就不停止 、一个一个字节读
    while(read(stdin_no,pos,1) != -1 && (pos - buf) < count)
    {
        switch(*pos)
        {
            //清屏
            case 'l'-'a':
                *pos = 0;
                clear();
                print_prompt();
                printf("%s",buf);  //把刚刚键入的字符打印出开
                break;

            //清除输入
            case 'u'-'a':
                while(buf != pos)
                {
                    putchar('\b');
                    *(pos--) = 0;
                }
                break;

            //和下面的回车一起
            case '\n':
            case '\r':
                *pos = 0;
                putchar('\n');
                return;

            case '\b':
                if(buf[0] != '\b') //阻止删除不是本次输出的信息
                {
                    --pos;
                    putchar('\b');
                }
                break;

            default:
                putchar(*pos);
                ++pos;
        }
    }
    printf("readline: cant fine entry_key in the cmd_line,max num of char is 128\n");
}

//解析键入的字符 token为分割符号
int32_t cmd_parse(char* cmd_str,char** argv,char token)
{
    ASSERT(cmd_str != NULL);
    int32_t arg_idx = 0;

    //初始化指针数组
    while(arg_idx < MAX_ARG_NR)
    {
        argv[arg_idx] = NULL;
        arg_idx++;
    }
    char* next = cmd_str;
    int32_t argc = 0;
    while(*next)
    {
        while(*next == token)	++next;
        if(*next == 0)	break;	//如果最后一个参数后面是空格 则之后就是结束符号了
        argv[argc] = next;     //无论怎么样 到这里都是有字符的地方 且argc表示目前存在第几个参数字符串

        while(*next && *next != token)  //要不结束了为0 或者到了分割符号
            ++next;

        if(*next)
            *(next++) = 0; //到最后就是设置字符串的末尾0 分割符号位置刚好处理为0 这样字符串有结束末尾了
                        //最后一个参数后面自然有'\0'
        if(argc > MAX_ARG_NR)
            return -1;

        ++argc;
    }
    return argc;        //多少个参数
}

void my_shell(void)
{
    cwd_cache[0] = '/';
    int argc = -1;
    while(1)
    {
        print_prompt();
        memset(cmd_line,0,cmd_len);
        readline(cmd_line,cmd_len);
        if(cmd_line[0] == 0)
            continue;

        argc = -1;
        argc = cmd_parse(cmd_line,argv,' ');
        if(argc == -1)
        {
            printf("num of arguments exceed %d\n",MAX_ARG_NR);
            continue;
        }

        int32_t arg_idx = 0;
        while(arg_idx < argc)
        {
            printf("%s ",argv[arg_idx]);
            arg_idx++;
        }
        printf("\n");
    }
    PANIC("my_shell: should not be here");
}

编写完的shell.h（仅完成了输出+快捷键+解析字符）

#ifndef __SHELL_SHELL_H
#define __SHELL_SHELL_H

#include "stdint.h"

void print_prompt(void);
void readline(char* buf,int32_t count);
void my_shell(void);
int32_t cmd_parse(char* cmd_str,char** argv,char token);

#endif

稍加修改的keyboard.c(intr_keyboard_handler)

void intr_keyboard_handler(void)
{
    bool ctrl_down_last = ctrl_status;
    bool shift_down_last = shift_status;
    bool caps_lock_last = caps_lock_status;

    bool break_code;
    uint16_t scancode = inb(KBD_BUF_PORT);

    if(scancode == 0xe0)	//多字节处理
    {
    	ext_scancode = true;
    	return;
    }

    break_code = ((scancode & 0x0080) != 0); //断码 = 通码 + 0x80 通码最小比0x80小 则只有断码才可以有

    if(break_code)
    {
    	uint16_t make_code = (scancode &= 0xff7f); //多字节不处理
    	if(make_code == ctrl_l_make || make_code == ctrl_r_make) ctrl_status = false;
    	else if(make_code == shift_l_make || make_code == shift_r_make) shift_status = false;
    	else if(make_code == alt_l_make || make_code == alt_r_make) alt_status = false;
    	return;
    }
    else if((scancode > 0x00 && scancode < 0x3b) || (scancode == alt_r_make) || (scancode == ctrl_r_make))
    {
    	bool shift = false; //先默认设置成false
    	if((scancode < 0x0e) || (scancode == 0x29) || (scancode == 0x1a) || \
    	(scancode == 0x1b) || (scancode == 0x2b) || (scancode == 0x27) || \
    	(scancode == 0x28) || (scancode == 0x33) || (scancode == 0x34) || \
    	(scancode == 0x35))
    	{
    	    if(shift_down_last)	shift = true;
    	}
    	else
    	{
    	    if(shift_down_last && caps_lock_last)	shift = false; //效果确实是这样子的 我试了一下
    	    else if(shift_down_last || caps_lock_last) shift = true; //其中任意一个都是大写的作用
    	    else shift = false;
    	}

    	uint8_t index = (scancode & 0x00ff);
        char cur_char = keymap[index][shift];

        if((ctrl_down_last && cur_char == 'l') || (ctrl_down_last && cur_char == 'u'))
            cur_char -= 'a';

        if(cur_char)
        {
        	if(!ioq_full(&ioqueue))
        		ioq_putchar(&ioqueue,cur_char);
        	//put_char(cur_char);
	    	return;
	}

	if(scancode == ctrl_l_make || scancode == ctrl_r_make)
	    ctrl_status = true;
	else if(scancode == shift_l_make || scancode == shift_r_make)
            shift_status = true;
	else if(scancode == alt_l_make || scancode == alt_r_make)
	    alt_status = true;
	else if(scancode == caps_lock_make)
	    caps_lock_status = !caps_lock_status;
	else put_str("unknown key\n");
    }

    return;
}

修改完的main.c

#include "print.h"
#include "init.h"
#include "debug.h"
#include "string.h"
#include "memory.h"
#include "../thread/thread.h"
#include "interrupt.h"
#include "../device/console.h"
#include "../device/ioqueue.h"
#include "../device/keyboard.h"
#include "../userprog/process.h"
#include "../lib/user/syscall.h"
#include "../userprog/syscall-init.h"
#include "../lib/stdio.h"
#include "../lib/kernel/stdio-kernel.h"
#include "../fs/fs.h"
#include "../fs/file.h"
#include "../shell/shell.h"

int main(void)
{
    put_str("I am kernel\n");
    init_all();
    intr_enable();
    cls_screen();
    console_put_str("[Love 6@localhost /]$ ");

    while(1);
    return 0;
}

void init(void)
{
    uint32_t ret_pid = fork();
    if(ret_pid)
        while(1);
    else
        my_shell();
    PANIC("init: should not be here");
}

修改完的MakeFile

BUILD_DIR = ./build
ENTRY_POINT = 0xc0001500
AS = nasm
CC = gcc
LD = ld
LIB = -I lib/ -I lib/kernel/ -I lib/user/ -I kernel/ -I device/
ASFLAGS = -f elf
CFLAGS = -Wall -m32 -fno-stack-protector $(LIB) -c -fno-builtin -W -Wstrict-prototypes -Wmissing-prototypes
LDFLAGS =  -m elf_i386 -Ttext $(ENTRY_POINT) -e main -Map $(BUILD_DIR)/kernel.map
OBJS = $(BUILD_DIR)/main.o $(BUILD_DIR)/init.o $(BUILD_DIR)/interrupt.o \
      $(BUILD_DIR)/timer.o $(BUILD_DIR)/kernel.o $(BUILD_DIR)/print.o $(BUILD_DIR)/switch.o \
      $(BUILD_DIR)/debug.o $(BUILD_DIR)/string.o $(BUILD_DIR)/memory.o \
      $(BUILD_DIR)/bitmap.o $(BUILD_DIR)/thread.o $(BUILD_DIR)/list.o \
      $(BUILD_DIR)/sync.o $(BUILD_DIR)/console.o $(BUILD_DIR)/keyboard.o \
      $(BUILD_DIR)/ioqueue.o $(BUILD_DIR)/tss.o $(BUILD_DIR)/process.o \
      $(BUILD_DIR)/syscall-init.o $(BUILD_DIR)/syscall.o $(BUILD_DIR)/stdio.o \
      $(BUILD_DIR)/stdio-kernel.o $(BUILD_DIR)/ide.o $(BUILD_DIR)/fs.o $(BUILD_DIR)/inode.o \
      $(BUILD_DIR)/file.o $(BUILD_DIR)/dir.o $(BUILD_DIR)/fork.o $(BUILD_DIR)/shell.o

##############     c代码编译     ###############
$(BUILD_DIR)/main.o: kernel/main.c lib/kernel/print.h \
        lib/stdint.h kernel/init.h lib/string.h kernel/memory.h \
        thread/thread.h kernel/interrupt.h device/console.h \
        device/keyboard.h device/ioqueue.h userprog/process.h \
        lib/user/syscall.h userprog/syscall-init.h lib/stdio.h \
        lib/kernel/stdio-kernel.h fs/file.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/init.o: kernel/init.c kernel/init.h lib/kernel/print.h \
        lib/stdint.h kernel/interrupt.h device/timer.h kernel/memory.h \
        thread/thread.h device/console.h device/keyboard.h userprog/tss.h \
        userprog/syscall-init.h device/ide.h fs/fs.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/interrupt.o: kernel/interrupt.c kernel/interrupt.h \
        lib/stdint.h kernel/global.h lib/kernel/io.h lib/kernel/print.h \
        kernel/kernel.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/timer.o: device/timer.c device/timer.h lib/kernel/io.h lib/kernel/print.h \
        kernel/interrupt.h thread/thread.h kernel/debug.h kernel/global.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/debug.o: kernel/debug.c kernel/debug.h \
        lib/kernel/print.h lib/stdint.h kernel/interrupt.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/string.o: lib/string.c lib/string.h \
	kernel/debug.h kernel/global.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/memory.o: kernel/memory.c kernel/memory.h \
	lib/stdint.h lib/kernel/bitmap.h kernel/debug.h lib/string.h kernel/global.h \
	thread/sync.h thread/thread.h lib/kernel/list.h kernel/interrupt.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/bitmap.o: lib/kernel/bitmap.c lib/kernel/bitmap.h kernel/global.h \
	lib/string.h kernel/interrupt.h lib/kernel/print.h kernel/debug.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/thread.o: thread/thread.c thread/thread.h \
	lib/stdint.h lib/string.h kernel/global.h kernel/memory.h \
	kernel/debug.h kernel/interrupt.h lib/kernel/print.h \
	userprog/process.h thread/sync.h lib/user/syscall.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/list.o: lib/kernel/list.c lib/kernel/list.h \
	kernel/interrupt.h lib/stdint.h kernel/debug.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/sync.o: thread/sync.c thread/sync.h \
	lib/stdint.h thread/thread.h kernel/debug.h kernel/interrupt.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/console.o: device/console.c device/console.h \
	lib/kernel/print.h thread/sync.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/keyboard.o: device/keyboard.c device/keyboard.h \
	lib/kernel/print.h lib/kernel/io.h kernel/interrupt.h \
	kernel/global.h lib/stdint.h device/ioqueue.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/ioqueue.o: device/ioqueue.c device/ioqueue.h \
	kernel/interrupt.h kernel/global.h kernel/debug.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/tss.o: userprog/tss.c userprog/tss.h \
	kernel/global.h thread/thread.h lib/kernel/print.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/process.o: userprog/process.c userprog/process.h \
	lib/string.h kernel/global.h kernel/memory.h lib/kernel/print.h \
	thread/thread.h kernel/interrupt.h kernel/debug.h device/console.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/syscall-init.o: userprog/syscall-init.c userprog/syscall-init.h \
	lib/user/syscall.h lib/stdint.h lib/kernel/print.h kernel/interrupt.h thread/thread.h \
	kernel/memory.h fs/file.h userprog/fork.h lib/kernel/stdio-kernel.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/syscall.o: lib/user/syscall.c lib/user/syscall.h fs/file.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/stdio.o: lib/stdio.c lib/stdio.h lib/stdint.h lib/string.h lib/user/syscall.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/stdio-kernel.o: lib/kernel/stdio-kernel.c lib/kernel/stdio-kernel.h \
	lib/stdio.h device/console.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/ide.o: device/ide.c device/ide.h lib/stdint.h kernel/debug.h \
	lib/kernel/stdio-kernel.h lib/stdio.h kernel/global.h thread/sync.h \
	lib/kernel/io.h device/timer.h kernel/interrupt.h lib/kernel/list.h fs/fs.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/fs.o: fs/fs.c fs/fs.h lib/stdint.h kernel/global.h device/ide.h fs/inode.h fs/dir.h \
	fs/super_block.h lib/kernel/stdio-kernel.h lib/string.h kernel/debug.h lib/kernel/list.h \
	fs/file.h thread/thread.h device/ioqueue.h device/keyboard.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/inode.o: fs/inode.c fs/inode.h device/ide.h kernel/debug.h thread/thread.h \
	kernel/memory.h lib/string.h lib/kernel/list.h kernel/interrupt.h lib/kernel/bitmap.h \
	fs/file.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/file.o: fs/file.c fs/file.h lib/kernel/stdio-kernel.h thread/thread.h device/ide.h \
	fs/file.h kernel/global.h kernel/interrupt.h device/console.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/dir.o: fs/dir.c fs/dir.h device/ide.h fs/fs.h fs/inode.h kernel/memory.h lib/string.h lib/stdint.h \
	lib/kernel/stdio-kernel.h kernel/debug.h fs/file.h kernel/memory.h lib/string.h kernel/debug.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/fork.o: userprog/fork.c userprog/fork.h kernel/global.h lib/stdint.h lib/string.h \
	kernel/memory.h kernel/interrupt.h thread/sync.h thread/thread.h  kernel/debug.h userprog/process.h \
	lib/kernel/stdio-kernel.h fs/file.h lib/kernel/list.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/shell.o: shell/shell.c shell/shell.h kernel/global.h lib/stdint.h lib/string.h \
	lib/user/syscall.h lib/stdio.h fs/file.h kernel/debug.h
	$(CC) $(CFLAGS) $< -o $@

##############    汇编代码编译    ###############
$(BUILD_DIR)/kernel.o: kernel/kernel.S
	$(AS) $(ASFLAGS) $< -o $@

$(BUILD_DIR)/print.o: lib/kernel/print.S
	$(AS) $(ASFLAGS) $< -o $@

$(BUILD_DIR)/switch.o: thread/switch.S
	$(AS) $(ASFLAGS) $< -o $@

##############    链接所有目标文件    #############
$(BUILD_DIR)/kernel.bin: $(OBJS)
	$(LD) $(LDFLAGS) $^ -o $@

.PHONY : mk_dir hd clean all

mk_dir:
	if [ ! -d $(BUILD_DIR) ]; then mkdir $(BUILD_DIR); fi

hd:
	dd if=$(BUILD_DIR)/kernel.bin \
           of=/home/cooiboi/bochs/hd60M.img \
           bs=512 count=200 seek=9 conv=notrunc

clean:
	cd $(BUILD_DIR) && rm -f  ./*

build: $(BUILD_DIR)/kernel.bin

all: mk_dir build hd

make all 验证成果（仅完成了输出+快捷键+解析字符）

这里写了输出快捷键和解析字符
当然快捷键不好展示就不展示了就展示一下输出和解析字符的效果
当然后面shell还要做改进这是初代版本我还是想一点点把迭代的代码发出来吧不直接发最终代码那各位看官看下面的效果

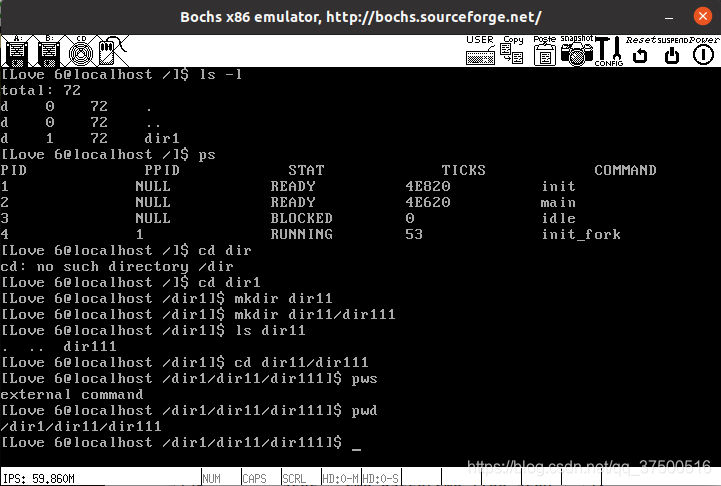

第一幅图忘直接加回车了效果还是有的为了好看就贴的下面的效果哈哈
在这里插入图片描述

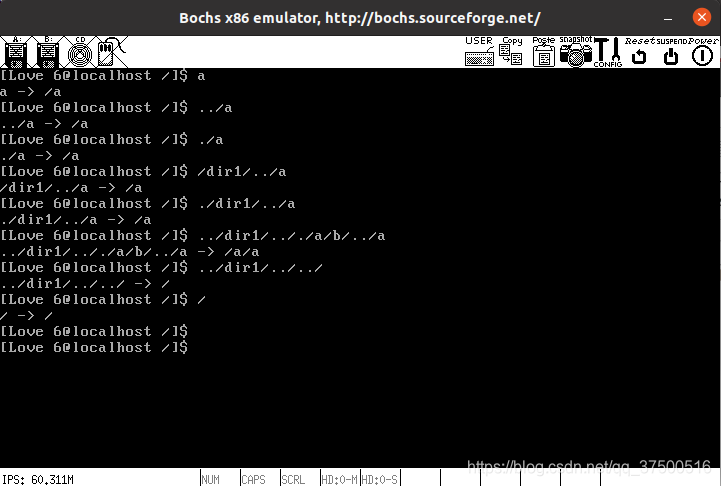

这里就是有间隔符解析字符的效果了还是可以看得出来应该是成功了那我们继续往下走
在这里插入图片描述

实现shell（添加了系统调用 + 实现了内建函数）

啊这部分确实内容超级超级多而且调试起来也是相当的不容易
而且最后的调试部分是依托着我们上一章节的文件系统的创建
这里我们这一章所编写的所有的函数不出错的话仍然要保持不出错只能依托着原来上一章节函数全部都实现正确了

真的每次做到这种内容需要原来的内容作为基础我的脊背都会发冷哈哈开玩笑的但是做到像这种原来的函数本来调试起来就相当不容易这一章编写的函数与原来需要叠用的如果出错了那是真的超级难找到错误

但是总而言之现在各位看官看到这行文字的时候程序此时肯定是我调试过几个小时挑错挑了几个小时的完整实现的代码了哈哈

如果大家的代码其中有问题的话这一章的代码我还是很放心的让大家自己对比找一下错那话不多说内容还有很多没写那下面走着

添加系统调用（syscall.c）

这部分超级超级多方便大家还是直接给代码吧

#include "syscall.h"

#define _syscall0(NUMBER) ({ \
    int retval;		\
    asm volatile ("int $0x80" : "=a"(retval) : "a"(NUMBER) : "memory"); retval; \
    })

#define _syscall1(NUMBER, ARG1) ({ \
    int retval;		\
    asm volatile ("int $0x80" : "=a"(retval) : "a"(NUMBER) , "b"(ARG1) : "memory"); retval; \
    })

#define _syscall2(NUMBER, ARG1, ARG2) ({ \
    int retval;		\
    asm volatile ("int $0x80" : "=a"(retval) : "a"(NUMBER) , "b"(ARG1) , "c"(ARG2): "memory"); retval; \
    })

#define _syscall3(NUMBER, ARG1, ARG2, ARG3) ({ \
    int retval;		\
    asm volatile ("int $0x80" : "=a"(retval) : "a"(NUMBER) , "b"(ARG1) , "c"(ARG2), "d"(ARG3): "memory"); retval; \
    })

uint32_t getpid(void)
{
    return _syscall0(SYS_GETPID);
}

uint32_t write(int fd,const void* buf,int count)
{
    return _syscall3(SYS_WRITE,fd,buf,count);
}

void* malloc(uint32_t size)
{
    return _syscall1(SYS_MALLOC,size);
}

void free(void* ptr)
{
    return _syscall1(SYS_FREE,ptr);
}

int32_t fork(void)
{
    return _syscall0(SYS_FORK);
}

int32_t read(int32_t fd,void* buf,uint32_t count)
{
    return _syscall3(SYS_READ,fd,buf,count);
}

void putchar(const char chr)
{
    return _syscall1(SYS_PUTCHAR,chr);
}

void clear(void)
{
    return _syscall0(SYS_CLEAR);
}

char* getcwd(char* buf,uint32_t size)
{
    return (char*)_syscall2(SYS_GETCWD,buf,size);
}

int32_t open(char* pathname,uint8_t flag)
{
    return _syscall2(SYS_OPEN,pathname,flag);
}

int32_t close(int32_t fd)
{
    return _syscall1(SYS_CLOSE,fd);
}

int32_t lseek(int32_t fd,int32_t offset,uint8_t whence)
{
    return _syscall3(SYS_LSEEK,fd,offset,whence);
}

int32_t unlink(const char* pathname)
{
    return _syscall1(SYS_UNLINK,pathname);
}

int32_t mkdir(const char* pathname)
{
    return _syscall1(SYS_MKDIR,pathname);
}

struct dir* opendir(const char* name)
{
    return (struct dir*)_syscall1(SYS_OPENDIR,name);
}

int32_t closedir(struct dir* dir)
{
    return _syscall1(SYS_CLOSEDIR,dir);
}

int32_t rmdir(const char* pathname)
{
    return _syscall1(SYS_RMDIR,pathname);
}

struct dir_entry* readdir(struct dir* dir)
{
    return (struct dir_entry*)_syscall1(SYS_READDIR,dir);
}

void rewinddir(struct dir* dir)
{
    _syscall1(SYS_REWINDDIR,dir);
}

int32_t stat(const char* path,struct stat* buf)
{
    return _syscall2(SYS_STAT,path,buf);
}

int32_t chdir(const char* path)
{
    return _syscall1(SYS_CHDIR,path);
}

void ps(void)
{
    return _syscall0(SYS_PS);
}

添加系统调用（syscall.h）

#ifndef __LIB_USER_SCSCALL_H
#define __LIB_USER_SCSCALL_H
#include "stdint.h"
#include "../fs/file.h"

enum SYSCALL_NR
{
    SYS_GETPID,
    SYS_WRITE,
    SYS_MALLOC,
    SYS_FREE,
    SYS_FORK,
    SYS_READ,
    SYS_PUTCHAR,
    SYS_CLEAR,
    SYS_GETCWD,
    SYS_OPEN,
    SYS_CLOSE,
    SYS_LSEEK,
    SYS_UNLINK,
    SYS_MKDIR,
    SYS_OPENDIR,
    SYS_CLOSEDIR,
    SYS_CHDIR,
    SYS_RMDIR,
    SYS_READDIR,
    SYS_REWINDDIR,
    SYS_STAT,
    SYS_PS
};

uint32_t getpid(void);
uint32_t write(int fd,const void* buf,int count);
void* malloc(uint32_t size);
void free(void* ptr);
int32_t fork(void);
int32_t read(int32_t fd,void* buf,uint32_t count);
void putchar(const char chr);
void clear(void);
char* getcwd(char* buf,uint32_t size);
int32_t open(char* pathname,uint8_t flag);
int32_t close(int32_t fd);
int32_t lseek(int32_t fd,int32_t offset,uint8_t whence);
int32_t unlink(const char* pathname);
int32_t mkdir(const char* pathname);
struct dir* opendir(const char* name);
int32_t closedir(struct dir* dir);
int32_t rmdir(const char* pathname);
struct dir_entry* readdir(struct dir* dir);
void rewinddir(struct dir* dir);
int32_t stat(const char* path,struct stat* buf);
int32_t chdir(const char* path);
void ps(void);

#endif

编写完的syscall-init.c

–

#include "syscall-init.h"
#include "../lib/user/syscall.h"
#include "stdint.h"
#include "print.h"
#include "interrupt.h"
#include "memory.h"
#include "../thread/thread.h"
#include "../fs/file.h"
#include "fork.h"
#include "../lib/kernel/stdio-kernel.h"

#define syscall_nr 32
typedef void* syscall;
syscall syscall_table[syscall_nr];

uint32_t sys_getpid(void)
{
    return running_thread()->pid;
}

void syscall_init(void)
{
    put_str("syscall_init start\n");
    syscall_table[SYS_GETPID]    = sys_getpid;
    syscall_table[SYS_WRITE]     = sys_write;
    syscall_table[SYS_MALLOC]    = sys_malloc;
    syscall_table[SYS_FREE]      = sys_free;
    syscall_table[SYS_FORK]      = sys_fork;
    syscall_table[SYS_READ]      = sys_read;
    syscall_table[SYS_PUTCHAR]   = sys_putchar;
    syscall_table[SYS_CLEAR]     = cls_screen;
    syscall_table[SYS_GETCWD]    = sys_getcwd;
    syscall_table[SYS_OPEN]      = sys_open;
    syscall_table[SYS_CLOSE]     = sys_close;
    syscall_table[SYS_LSEEK]     = sys_lseek;
    syscall_table[SYS_UNLINK]    = sys_unlink;
    syscall_table[SYS_MKDIR]     = sys_mkdir;
    syscall_table[SYS_OPENDIR]   = sys_opendir;
    syscall_table[SYS_CLOSEDIR]  = sys_closedir;
    syscall_table[SYS_CHDIR]     = sys_chdir;
    syscall_table[SYS_RMDIR]     = sys_rmdir;
    syscall_table[SYS_READDIR]   = sys_readdir;
    syscall_table[SYS_REWINDDIR] = sys_rewinddir;
    syscall_table[SYS_STAT]      = sys_stat;
    syscall_table[SYS_PS]        = sys_ps;
    put_str("syscall_init done\n");
}

编写完的thread.c

我还是觉得先把三个函数给出来吧当然只给局部的代码有些细节就给不出来当然这是最后一章了就原谅原谅我吧后面会专门写博客把所有的代码都贴出来

void pad_print(char* buf,int32_t buf_len,void* ptr,char format)
{
    memset(buf,0,buf_len);
    uint8_t out_pad_0idx = 0;
    switch(format)
    {
        case 's':
            out_pad_0idx = sprintf(buf,"%s",ptr);
            break;
        case 'd':
            out_pad_0idx = sprintf(buf,"%d",*((int16_t*)ptr));
            break;
        case 'x':
            out_pad_0idx = sprintf(buf,"%x",*((uint32_t*)ptr));
    }
    while(out_pad_0idx < buf_len)
    {
        buf[out_pad_0idx] = ' ';
        out_pad_0idx++;
    }
    sys_write(stdout_no,buf,buf_len-1);
}

bool elem2thread_info(struct list_elem* pelem,int arg)
{
    struct task_struct* pthread = elem2entry(struct task_struct,all_list_tag,pelem);
    char out_pad[16] = {0};
    pad_print(out_pad,16,&pthread->pid,'d');

    if(pthread->parent_pid == -1)
    	pad_print(out_pad,16,"NULL",'s');
    else
        pad_print(out_pad,16,&pthread->parent_pid,'d');

    switch(pthread->status)
    {
        case 0:
            pad_print(out_pad,16,"RUNNING",'s');
            break;
        case 1:
            pad_print(out_pad,16,"READY",'s');
            break;
        case 2:
            pad_print(out_pad,16,"BLOCKED",'s');
            break;
        case 3:
            pad_print(out_pad,16,"WAITING",'s');
            break;
        case 4:
            pad_print(out_pad,16,"HANGING",'s');
            break;
        case 5:
            pad_print(out_pad,16,"DIED",'s');
            break;
    }
    pad_print(out_pad,16,&pthread->elapsed_ticks,'x');

    memset(out_pad,0,16);
    ASSERT(strlen(pthread->name) < 17);
    memcpy(out_pad,pthread->name,strlen(pthread->name));
    strcat(out_pad,"\n");
    sys_write(stdout_no,out_pad,strlen(out_pad));
    return false;
}
//打印任务列表
void sys_ps(void)
{
    char* ps_title = "PID             PPID            STAT             TICKS            COMMAND\n";
    sys_write(stdout_no,ps_title,strlen(ps_title));
    list_traversal(&thread_all_list,elem2thread_info,0);
}

编写完的buildin_cmd.c

#include "buildin_cmd.h"
#include "../fs/file.h"
#include "../fs/fs.h"
#include "debug.h"
#include "string.h"
#include "syscall.h"
#include "stdio-kernel.h"
#include "../fs/dir.h"
#include "../fs/fs.h"
#include "stdio.h"
#include "shell.h"

extern char final_path[160];

//在用户态就把路径给解析出来
void wash_path(char* old_abs_path,char* new_abs_path)
{
    ASSERT(old_abs_path[0] == '/');
    char name[MAX_FILE_NAME_LEN] = {0};
    char* sub_path = old_abs_path;
    sub_path = path_parse(sub_path,name);

    //如果直接就是根目录 直接返回即可
    if(name[0] == 0)
    {
        new_abs_path[0] = '/';
        new_abs_path[1] = 0;
        return;
    }
    new_abs_path[0] = 0;
    strcat(new_abs_path,"/");
    while(name[0])
    {
        if(!strcmp("..",name))   //返回上级
        {
            char* slash_ptr = strrchr(new_abs_path,'/'); //等于移动到最偏右的/位置去
            if(slash_ptr != new_abs_path)   //如果为 /aaa 那么移动之后就到/的位置了 如果是/aaa/bbb 那么就会回到/aaa/
                *slash_ptr = 0; // 把/变成0
            else
	        *(slash_ptr+1) = 0; // 如果是 / 或者 /aaa 那么都回到/ 则把最右边+1置零位即可
        }
        else if(strcmp(".",name))  //如果不是到. 增加到后米纳即可 .等于没有作用 继续遍历即可
        {
            if(strcmp(new_abs_path,"/"))  //不是 / 防止出现// 的情况
                strcat(new_abs_path,"/");
            strcat(new_abs_path,name);
        }

        memset(name,0,MAX_FILE_NAME_LEN);
        if(sub_path)
            sub_path = path_parse(sub_path,name);
    }
}

//把path处理 . ..去掉 储存在final_path getcwd得到当前工作目录 + 相对路径 即绝对路径
void make_clear_abs_path(char* path,char* final_path)
{
    char abs_path[MAX_PATH_LEN] = {0};
    if(path[0] != '/')  //如果不是绝对路径就弄成绝对路径
    {
        memset(abs_path,0,MAX_PATH_LEN);
        if(getcwd(abs_path,MAX_PATH_LEN) != NULL)
        {
            if(!((abs_path[0] == '/') && abs_path[1] == 0))
                strcat(abs_path,"/");
        }
    }
    //把path 加到工作目录的头上
    strcat(abs_path,path);
    wash_path(abs_path,final_path);
}

// pwd命令中的内建函数 得到当前工作目录
void buildin_pwd(uint32_t argc,char** argv)
{
    //没有参数才可以
    if(argc != 1)
        printf("pwd: no argument support!\n");
    else
    {
        if(getcwd(final_path,MAX_PATH_LEN) != NULL)
            printf("%s\n",final_path);
        else
            printf("pwd: get current work directory failed\n");
    }
}

// 支持一个参数 改变当前工作目录
char* buildin_cd(uint32_t argc,char** argv)
{
    if(argc > 2)
    {
        printf("cd: only support 1 argument!\n");
        return NULL;
    }
    if(argc == 1)
    {
        final_path[0] = '/';
        final_path[1] = 0;
    }
    else    make_clear_abs_path(argv[1],final_path);

    if(chdir(final_path) == -1)
    {
        printf("cd: no such directory %s\n",final_path);
        return NULL;
    }
    return final_path;
}

// ls内建函数 仅支持-l -h -h等于不支持 哈哈
void buildin_ls(uint32_t argc,char** argv)
{
    char* pathname = NULL;
    struct stat file_stat;
    memset(&file_stat,0,sizeof(struct stat));
    bool long_info = false;
    uint32_t arg_path_nr = 0;
    uint32_t arg_idx = 1;    //第一个字符串是 ls 跳过
    while(arg_idx < argc)    //仅仅支持 ls 或者 ls -l 或者 ls -l path的形式
    {
        if(argv[arg_idx][0] == '-')
        {
            if(!strcmp("-l",argv[arg_idx]))
                long_info = true;
            else if(!strcmp("-h",argv[arg_idx]))
            {
                printf("usage: -l list all all information about the file.\nnot support -h now sry - -\n");
                return;
            }
            else
            {
                printf("ls: invaild option %s\nTry 'ls -l' u can get what u want\n",argv[arg_idx]);
                return;
            }
        }
        else
        {
            if(arg_path_nr == 0)
            {
                pathname = argv[arg_idx];
                arg_path_nr = 1;
            }
            else
            {
                printf("ls: only support one path\n");
                return;
            }
        }
        ++arg_idx;
    }

    if(pathname == NULL) //ls 或者 ls -l
    {
        //得到工作目录
        if(getcwd(final_path,MAX_PATH_LEN) != NULL)
	    pathname = final_path;
	else
	{
	    printf("ls: getcwd for default path failed\n");
	    return;
	}
    }
    else
    {
        make_clear_abs_path(pathname,final_path);
        pathname = final_path;
    }

    //目录下的文件
    if(stat(pathname,&file_stat) == -1)
    {
        printf("ls: cannot access %s: No such file or directory\n",pathname);
        return;
    }

    if(file_stat.st_filetype == FT_DIRECTORY)  //得到目录文件才继续
    {
        struct dir* dir = opendir(pathname); //得到目录指针
        struct dir_entry* dir_e = NULL;
        char sub_pathname[MAX_PATH_LEN] = {0};
        uint32_t pathname_len   = strlen(pathname);
        uint32_t last_char_idx  = pathname_len - 1;
        memcpy(sub_pathname,pathname,pathname_len);

        //方便后面得到当前目录下的文件stat信息
        //加个/ 之后每个文件加文件名stat即可
        if(sub_pathname[last_char_idx] != '/')
        {
            sub_pathname[pathname_len] = '/';
            ++pathname_len;
        }

        rewinddir(dir);  //目录指针指向0  方便readdir遍历目录项
        if(long_info)    // ls -l 这里是目录的ls
        {
            char ftype;
            printf("total: %d\n",file_stat.st_size);
            while((dir_e = readdir(dir)))    //通过readdir来遍历目录项 我还专门回去看了看这个函数
            {
                ftype = 'd';
                if(dir_e->f_type == FT_REGULAR)
                    ftype = '-';
                sub_pathname[pathname_len] = 0; //把字符串末尾设0 方便strcat函数
                strcat(sub_pathname,dir_e->filename);
                memset(&file_stat,0,sizeof(struct stat));
                if(stat(sub_pathname,&file_stat) == -1)
                {
                    printf("ls: cannot access %s:No such file or directory\n",dir_e->filename);
                    return;
                }
                printf("%c    %d    %d    %s\n",ftype,dir_e->i_no,file_stat.st_size,dir_e->filename);
            }
        }
        else  //仅仅是ls 把文件名写出来即可
        {
            while((dir_e = readdir(dir)))
                printf("%s  ",dir_e->filename);
            printf("\n");
        }
        closedir(dir);
    }
    else
    {
        if(long_info)
             printf("-    %d    %d    %s\n",file_stat.st_ino,file_stat.st_size,pathname);
	else
	    printf("%s\n",pathname);
    }
}

void buildin_ps(uint32_t argc,char** argv)
{
     //不应该有参数
    if(argc != 1)
    {
        printf("ps: no argument support!\n");
        return;
    }
    ps();
}

void buildin_clear(uint32_t argc,char** argv)
{
    if(argc != 1)
    {
        printf("clear: no argument support!\n");
        return;
    }
    clear();
}

int32_t buildin_mkdir(uint32_t argc,char** argv)
{
    //必须要有一个 安装路径参数
    int32_t ret = -1;
    if(argc != 2)
        printf("mkdir: only support 1 argument!\n");
    else
    {
        make_clear_abs_path(argv[1],final_path);
        if(strcmp("/",final_path))  //不是根目录 根目录一直都在
        {
            if(mkdir(final_path) == 0)
                ret = 0;
            else
                printf("mkdir: create directory %s failed.\n",argv[1]);
        }
    }
    return ret;
}

int32_t buildin_rmdir(uint32_t argc,char** argv)
{
    int32_t ret = -1;
    if(argc != 2)
        printf("rmdir: only support 1 argument!\n");
    else
    {
        make_clear_abs_path(argv[1],final_path);
        if(strcmp("/",final_path)) // 不能删除根目录
        {
            if(rmdir(final_path) == 0)
                ret = 0;
            else    printf("rmdir: remove %s failed\n");
        }
    }
    return ret;
}

int32_t buildin_rm(uint32_t argc,char** argv)
{
    int32_t ret = -1;
    if(argc != 2)
        printf("rm: only support 1 argument!\n");
    else
    {
        make_clear_abs_path(argv[1],final_path);
        if(strcmp("/",final_path))
        {
            if(unlink(final_path) == 0)
                ret = 0;
            else    printf("rm: delete %s failed\n",argv[1]);
        }
    }
    return ret;
}

编写完的buildin_cmd.h

#ifndef __SHELL_BUILDIN_CMD_H
#define __SHELL_BUILDIN_CMD_H
#include "stdint.h"

void wash_path(char* old_abs_path,char* new_abs_path);
void make_clear_abs_path(char* path,char* final_path);
void buildin_pwd(uint32_t argc,char** argv);
char* buildin_cd(uint32_t argc,char** argv);
void buildin_ls(uint32_t argc,char** argv);
void buildin_ps(uint32_t argc,char** argv);
void buildin_clear(uint32_t argc,char** argv);
int32_t buildin_mkdir(uint32_t argc,char** argv);
int32_t buildin_rmdir(uint32_t argc,char** argv);
int32_t buildin_rm(uint32_t argc,char** argv);

#endif

编写完的shell.c

#include "shell.h"
#include "global.h"
#include "stdint.h"
#include "string.h"
#include "syscall.h"
#include "stdio.h"
#include "../fs/file.h"
#include "../kernel/debug.h"
#include "buildin_cmd.h"
#include "../fs/fs.h"

#define cmd_len    128 //最大支持128个字符
#define MAX_ARG_NR 16  //命令名外支持15个参数

char cmd_line[cmd_len] = {0};
char cwd_cache[64] = {0}; //目录的缓存 执行cd则移动到其他目录去
char final_path[MAX_PATH_LEN];
char* argv[MAX_ARG_NR];   //参数

//固定输出提示副
void print_prompt(void)
{
    printf("[Love 6@localhost %s]$ ",cwd_cache);
}

//最多读入count字节到buf
void readline(char* buf,int32_t count)
{
    ASSERT(buf != NULL && count > 0);
    char* pos = buf;
    //默认没有到回车就不停止 、一个一个字节读
    while(read(stdin_no,pos,1) != -1 && (pos - buf) < count)
    {
        switch(*pos)
        {
            //清屏
            case 'l'-'a':
                *pos = 0;
                clear();
                print_prompt();
                printf("%s",buf);  //把刚刚键入的字符打印出开
                break;

            //清除输入
            case 'u'-'a':
                while(buf != pos)
                {
                    putchar('\b');
                    *(pos--) = 0;
                }
                break;

            //和下面的回车一起
            case '\n':
            case '\r':
                *pos = 0;
                putchar('\n');
                return;

            case '\b':
                if(buf[0] != '\b') //阻止删除不是本次输出的信息
                {
                    --pos;
                    putchar('\b');
                }
                break;

            default:
                putchar(*pos);
                ++pos;
        }
    }
    printf("readline: cant fine entry_key in the cmd_line,max num of char is 128\n");
}

//解析键入的字符 token为分割符号
int32_t cmd_parse(char* cmd_str,char** argv,char token)
{
    ASSERT(cmd_str != NULL);
    int32_t arg_idx = 0;

    //初始化指针数组
    while(arg_idx < MAX_ARG_NR)
    {
        argv[arg_idx] = NULL;
        arg_idx++;
    }
    char* next = cmd_str;
    int32_t argc = 0;
    while(*next)
    {
        while(*next == token)	++next;
        if(*next == 0)	break;	//如果最后一个参数后面是空格 则之后就是结束符号了
        argv[argc] = next;     //无论怎么样 到这里都是有字符的地方 且argc表示目前存在第几个参数字符串

        while(*next && *next != token)  //要不结束了为0 或者到了分割符号
            ++next;

        if(*next)
            *(next++) = 0; //到最后就是设置字符串的末尾0 分割符号位置刚好处理为0 这样字符串有结束末尾了
                        //最后一个参数后面自然有'\0'
        if(argc > MAX_ARG_NR)
            return -1;

        ++argc;
    }
    return argc;        //多少个参数
}

void my_shell(void)
{
    cwd_cache[0] = '/';
    cwd_cache[1] = 0;
    int argc = -1;
    while(1)
    {
        print_prompt();
        memset(cmd_line,0,cmd_len);
        memset(final_path,0,MAX_PATH_LEN);
        memset(argv,0,sizeof(char*) * MAX_ARG_NR);
        readline(cmd_line,cmd_len);
        if(cmd_line[0] == 0)
            continue;

        argc = -1;
        argc = cmd_parse(cmd_line,argv,' ');
        if(argc == -1)
        {
            printf("num of arguments exceed %d\n",MAX_ARG_NR);
            continue;
        }
        if(!strcmp("ls",argv[0]))
            buildin_ls(argc,argv);
        else if(!strcmp("pwd",argv[0]))
            buildin_pwd(argc,argv);
        else if(!strcmp("ps",argv[0]))
            buildin_ps(argc,argv);
        else if(!strcmp("cd",argv[0]))
        {
            if(buildin_cd(argc,argv) != NULL)
            {
                memset(cwd_cache,0,MAX_PATH_LEN);
                strcpy(cwd_cache,final_path);
            }
        }
        else if(!strcmp("clear",argv[0]))
            buildin_clear(argc,argv);
        else if(!strcmp("mkdir",argv[0]))
            buildin_mkdir(argc,argv);
        else if(!strcmp("rmdir",argv[0]))
            buildin_rmdir(argc,argv);
        else if(!strcmp("rm",argv[0]))
            buildin_rm(argc,argv);
        else
            printf("external command\n");
    }
    PANIC("my_shell: should not be here");
}

编写完的shell.h

#ifndef __SHELL_SHELL_H
#define __SHELL_SHELL_H

#include "stdint.h"
#include "../fs/fs.h"

void print_prompt(void);
void readline(char* buf,int32_t count);
void my_shell(void);
int32_t cmd_parse(char* cmd_str,char** argv,char token);

#endif

修改完的MakeFile

BUILD_DIR = ./build
ENTRY_POINT = 0xc0001500
AS = nasm
CC = gcc
LD = ld
LIB = -I lib/ -I lib/kernel/ -I lib/user/ -I kernel/ -I device/
ASFLAGS = -f elf
CFLAGS = -Wall -m32 -fno-stack-protector $(LIB) -c -fno-builtin -W -Wstrict-prototypes -Wmissing-prototypes
LDFLAGS =  -m elf_i386 -Ttext $(ENTRY_POINT) -e main -Map $(BUILD_DIR)/kernel.map
OBJS = $(BUILD_DIR)/main.o $(BUILD_DIR)/init.o $(BUILD_DIR)/interrupt.o \
      $(BUILD_DIR)/timer.o $(BUILD_DIR)/kernel.o $(BUILD_DIR)/print.o $(BUILD_DIR)/switch.o \
      $(BUILD_DIR)/debug.o $(BUILD_DIR)/string.o $(BUILD_DIR)/memory.o \
      $(BUILD_DIR)/bitmap.o $(BUILD_DIR)/thread.o $(BUILD_DIR)/list.o \
      $(BUILD_DIR)/sync.o $(BUILD_DIR)/console.o $(BUILD_DIR)/keyboard.o \
      $(BUILD_DIR)/ioqueue.o $(BUILD_DIR)/tss.o $(BUILD_DIR)/process.o \
      $(BUILD_DIR)/syscall-init.o $(BUILD_DIR)/syscall.o $(BUILD_DIR)/stdio.o \
      $(BUILD_DIR)/stdio-kernel.o $(BUILD_DIR)/ide.o $(BUILD_DIR)/fs.o $(BUILD_DIR)/inode.o \
      $(BUILD_DIR)/file.o $(BUILD_DIR)/dir.o $(BUILD_DIR)/fork.o $(BUILD_DIR)/shell.o \
      $(BUILD_DIR)/buildin_cmd.o

##############     c代码编译     ###############
$(BUILD_DIR)/main.o: kernel/main.c lib/kernel/print.h \
        lib/stdint.h kernel/init.h lib/string.h kernel/memory.h \
        thread/thread.h kernel/interrupt.h device/console.h \
        device/keyboard.h device/ioqueue.h userprog/process.h \
        lib/user/syscall.h userprog/syscall-init.h lib/stdio.h \
        lib/kernel/stdio-kernel.h fs/file.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/init.o: kernel/init.c kernel/init.h lib/kernel/print.h \
        lib/stdint.h kernel/interrupt.h device/timer.h kernel/memory.h \
        thread/thread.h device/console.h device/keyboard.h userprog/tss.h \
        userprog/syscall-init.h device/ide.h fs/fs.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/interrupt.o: kernel/interrupt.c kernel/interrupt.h \
        lib/stdint.h kernel/global.h lib/kernel/io.h lib/kernel/print.h \
        kernel/kernel.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/timer.o: device/timer.c device/timer.h lib/kernel/io.h lib/kernel/print.h \
        kernel/interrupt.h thread/thread.h kernel/debug.h kernel/global.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/debug.o: kernel/debug.c kernel/debug.h \
        lib/kernel/print.h lib/stdint.h kernel/interrupt.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/string.o: lib/string.c lib/string.h \
	kernel/debug.h kernel/global.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/memory.o: kernel/memory.c kernel/memory.h \
	lib/stdint.h lib/kernel/bitmap.h kernel/debug.h lib/string.h kernel/global.h \
	thread/sync.h thread/thread.h lib/kernel/list.h kernel/interrupt.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/bitmap.o: lib/kernel/bitmap.c lib/kernel/bitmap.h kernel/global.h \
	lib/string.h kernel/interrupt.h lib/kernel/print.h kernel/debug.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/thread.o: thread/thread.c thread/thread.h \
	lib/stdint.h lib/string.h kernel/global.h kernel/memory.h \
	kernel/debug.h kernel/interrupt.h lib/kernel/print.h \
	userprog/process.h thread/sync.h lib/user/syscall.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/list.o: lib/kernel/list.c lib/kernel/list.h \
	kernel/interrupt.h lib/stdint.h kernel/debug.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/sync.o: thread/sync.c thread/sync.h \
	lib/stdint.h thread/thread.h kernel/debug.h kernel/interrupt.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/console.o: device/console.c device/console.h \
	lib/kernel/print.h thread/sync.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/keyboard.o: device/keyboard.c device/keyboard.h \
	lib/kernel/print.h lib/kernel/io.h kernel/interrupt.h \
	kernel/global.h lib/stdint.h device/ioqueue.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/ioqueue.o: device/ioqueue.c device/ioqueue.h \
	kernel/interrupt.h kernel/global.h kernel/debug.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/tss.o: userprog/tss.c userprog/tss.h \
	kernel/global.h thread/thread.h lib/kernel/print.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/process.o: userprog/process.c userprog/process.h \
	lib/string.h kernel/global.h kernel/memory.h lib/kernel/print.h \
	thread/thread.h kernel/interrupt.h kernel/debug.h device/console.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/syscall-init.o: userprog/syscall-init.c userprog/syscall-init.h \
	lib/user/syscall.h lib/stdint.h lib/kernel/print.h kernel/interrupt.h thread/thread.h \
	kernel/memory.h fs/file.h userprog/fork.h lib/kernel/stdio-kernel.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/syscall.o: lib/user/syscall.c lib/user/syscall.h fs/file.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/stdio.o: lib/stdio.c lib/stdio.h lib/stdint.h lib/string.h lib/user/syscall.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/stdio-kernel.o: lib/kernel/stdio-kernel.c lib/kernel/stdio-kernel.h \
	lib/stdio.h device/console.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/ide.o: device/ide.c device/ide.h lib/stdint.h kernel/debug.h \
	lib/kernel/stdio-kernel.h lib/stdio.h kernel/global.h thread/sync.h \
	lib/kernel/io.h device/timer.h kernel/interrupt.h lib/kernel/list.h fs/fs.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/fs.o: fs/fs.c fs/fs.h lib/stdint.h kernel/global.h device/ide.h fs/inode.h fs/dir.h \
	fs/super_block.h lib/kernel/stdio-kernel.h lib/string.h kernel/debug.h lib/kernel/list.h \
	fs/file.h thread/thread.h device/ioqueue.h device/keyboard.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/inode.o: fs/inode.c fs/inode.h device/ide.h kernel/debug.h thread/thread.h \
	kernel/memory.h lib/string.h lib/kernel/list.h kernel/interrupt.h lib/kernel/bitmap.h \
	fs/file.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/file.o: fs/file.c fs/file.h lib/kernel/stdio-kernel.h thread/thread.h device/ide.h \
	fs/file.h kernel/global.h kernel/interrupt.h device/console.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/dir.o: fs/dir.c fs/dir.h device/ide.h fs/fs.h fs/inode.h kernel/memory.h lib/string.h lib/stdint.h \
	lib/kernel/stdio-kernel.h kernel/debug.h fs/file.h kernel/memory.h lib/string.h kernel/debug.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/fork.o: userprog/fork.c userprog/fork.h kernel/global.h lib/stdint.h lib/string.h \
	kernel/memory.h kernel/interrupt.h thread/sync.h thread/thread.h  kernel/debug.h userprog/process.h \
	lib/kernel/stdio-kernel.h fs/file.h lib/kernel/list.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/shell.o: shell/shell.c shell/shell.h kernel/global.h lib/stdint.h lib/string.h \
	lib/user/syscall.h lib/stdio.h fs/file.h kernel/debug.h shell/buildin_cmd.h fs/fs.h
	$(CC) $(CFLAGS) $< -o $@

$(BUILD_DIR)/buildin_cmd.o: shell/buildin_cmd.c shell/buildin_cmd.h fs/file.h fs/fs.h kernel/debug.h \
	lib/string.h lib/user/syscall.h fs/dir.h fs/fs.h lib/stdio.h shell/shell.h
	$(CC) $(CFLAGS) $< -o $@

##############    汇编代码编译    ###############
$(BUILD_DIR)/kernel.o: kernel/kernel.S
	$(AS) $(ASFLAGS) $< -o $@

$(BUILD_DIR)/print.o: lib/kernel/print.S
	$(AS) $(ASFLAGS) $< -o $@

$(BUILD_DIR)/switch.o: thread/switch.S
	$(AS) $(ASFLAGS) $< -o $@

##############    链接所有目标文件    #############
$(BUILD_DIR)/kernel.bin: $(OBJS)
	$(LD) $(LDFLAGS) $^ -o $@

.PHONY : mk_dir hd clean all

mk_dir:
	if [ ! -d $(BUILD_DIR) ]; then mkdir $(BUILD_DIR); fi

hd:
	dd if=$(BUILD_DIR)/kernel.bin \
           of=/home/cooiboi/bochs/hd60M.img \
           bs=512 count=200 seek=9 conv=notrunc

clean:
	cd $(BUILD_DIR) && rm -f  ./*

build: $(BUILD_DIR)/kernel.bin

all: mk_dir build hd
