前言
我是一个即将毕业的大学生，超超。如果你也在学习Linux,python，不妨跟着萌新超超一起学习，拿下Linux，python一起加油，共同努力，拿到理想offer！
系列文章
项目实战1 | 基于iptables的SNAT+DNAT与Docker容器发布的项目
概述
项目实战有利于对已学知识的整合归纳，提高对相关知识的掌握程度，本次项目实战利用swarm+Prometheus实现一个双VIP高可用可监控的Web服务器集群，使用Nginx做负载均衡器，同时采用swarm管理的Docker集群并对外提供Web服务，使用keepalived的双vip实现HA，使用Prometheus+Grafana实现对Web服务器的监控。
目录
二、使用swarm实现Web集群部署，实现基于4个节点的swarm集群
三、创建NFS服务服务器为所有的节点提供相同Web数据，使用数据卷，为容器提供一致的Web数据
四、使用Nginx+keepalived实现双VIP负载均衡高可用

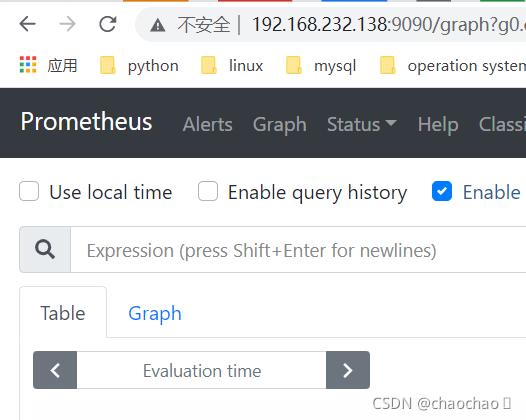

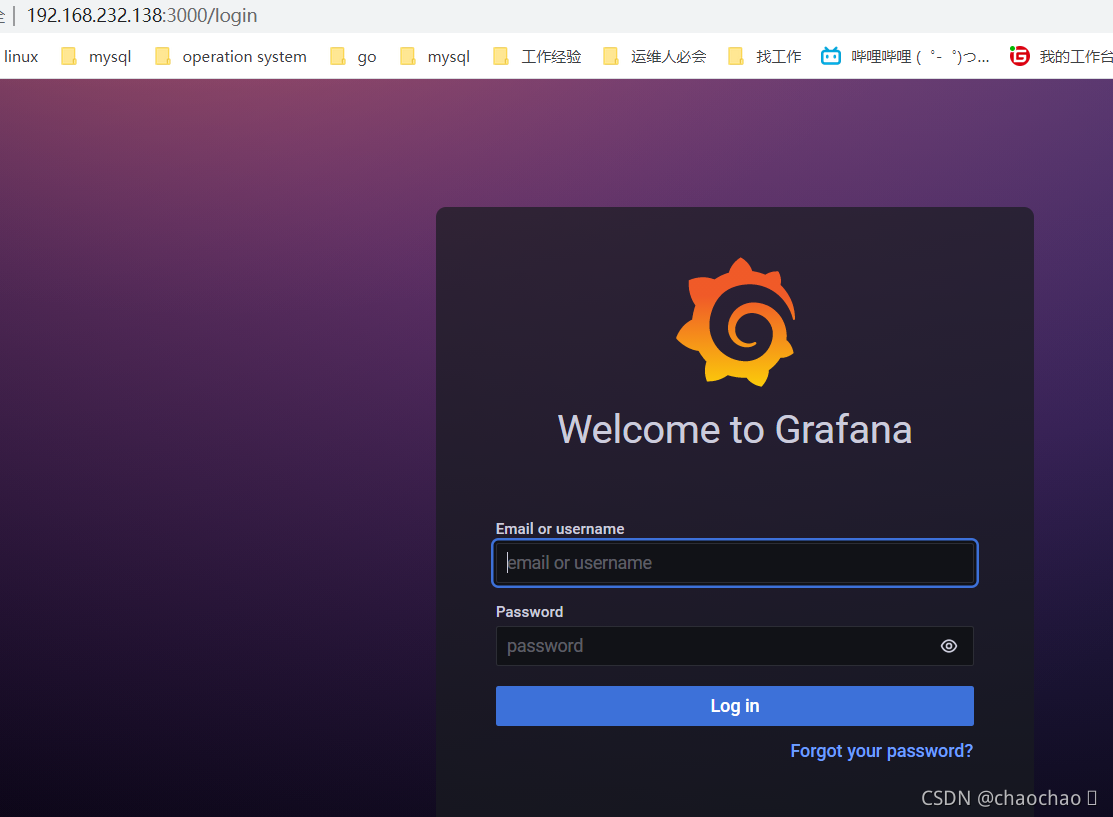

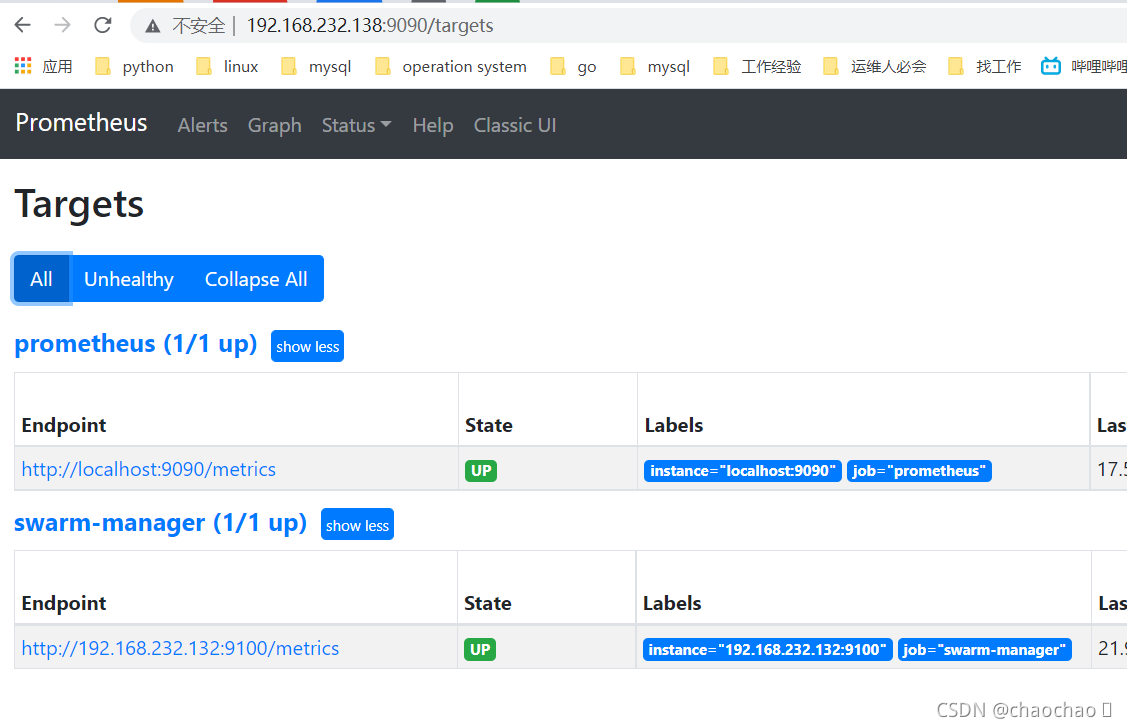

五、使用Prometheus实现对swarm集群的监控，结合Grafana成图工具进行数据展示
项目概述
项目名称：基于Swarm+Prometheus实现双VIP可监控Web高可用集群
项目环境：CentOS8(8台，1核2G),Docker(20.10.8),keepalived(2.1.5),Prometheus(2.29.1),Grafana(8.1.2），Nginx(1.14.1)等
项目描述：利用swarm+Prometheus实现一个双VIP高可用可监控的Web服务器集群，使用Nginx做负载均衡器，同时采用swarm管理的Docker集群并对外提供Web服务，使用keepalived的双vip实现HA，使用Prometheus+Grafana实现对Web服务器的监控。
项目步骤
1.规划整个项目的拓扑结构和项目的思维导图
2.使用swarm实现Web集群部署，实现基于4个节点的swarm集群
3.创建NFS服务服务器为所有的节点提供相同Web数据，实现数据一致性
4.使用数据卷，为容器提供一致的Web数据

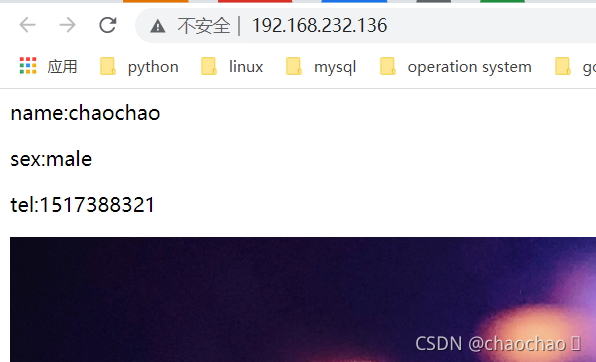

5.使用Nginx+keepalived实现双VIP负载均衡高可用
6.使用Prometheus实现对swarm集群的监控，结合Grafana成图工具进行数据展示
项目心得
1.通过网络拓补图和思维导图的建立，提高了项目整体的落实和效率
2.对于容器编排工具swarm的使用和集群的部署更为熟悉
3.对于keepalived+nginx实现高可用负载均衡更为了解
4.对于Prometheus+Grafana实现系统监控有了更深的理解
5.对于脑裂现象的出现和解决有了更加清晰的认识
6.通过根据官方文档安装与使用swarm到集群整体的部署，进一步提高了自身的自主学习和troubleshooting能力
项目详细代码
一、规划整个项目的拓扑结构和项目的思维导图
网络拓扑图
思维导图
项目服务器如下：
IP：192.168.232.132 主机名：docker-manager-1 担任角色：swarm manager
IP：192.168.232.133 主机名：docker-2 担任角色：swarm worker node1
IP：192.168.232.134 主机名：docker-3 担任角色：swarm worker node2
IP：192.168.232.131 主机(ubuntu)名：chaochao 担任角色：swarm worker node3
IP：192.168.232.135 主机名：nfs-server 担任角色：nfs服务服务器
IP：192.168.232.136 主机名：load-balancer担任角色：负载均衡器(master)
IP：192.168.232.137 主机名：load-balancer担任角色：负载均衡器（backup）
IP：192.168.232.138 主机名：prometheus-server 担任角色：prometheus-server
二、使用swarm实现Web集群部署，实现基于4个节点的swarm集群
1.部署web服务集群机器环境(四台机器，CentOS8与Ubuntu系统)
IP：192.168.232.132 主机名：docker-manager-1 担任角色：swarm manager
IP：192.168.232.133 主机名：docker-2 担任角色：swarm worker node1
IP：192.168.232.134 主机名：docker-3 担任角色：swarm worker node2
IP：192.168.232.131 主机(ubuntu)名：chaochao 担任角色：swarm worker node3
2.配置hosts文件
swarm manager：
[root@docker-manager-1 ~]# cat /etc/hosts
127.0.0.1?? localhost localhost.localdomain localhost4 localhost4.localdomain4
::1???????? localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.232.132 manager
192.168.232.133 worker1
192.168.232.134 worker2
192.168.232.131 worker3
[root@docker-manager-1 ~]# getenforce
Disabled另外三台worker node操作一致
3.设置防火墙和sellinux
关闭四台机器上的防火墙。
如果是开启防火墙，则需要在所有节点的防火墙上依次放行2377/tcp（管理端口）、7946/udp（节点间通信端口）、4789/udp（overlay 网络端口，容器之间）端口。
[root@docker-manager-1 ~]# systemctl disable firewalld
[root@docker-manager-1 ~]#[root@docker-2 ~]# systemctl disable firewalld
[root@docker-2 ~]#另外两台操作一致，不再赘述。
4.重启docker服务，防止导致网络异常
[root@docker-manager-1 ~]# service docker restart
Redirecting to /bin/systemctl restart docker.service
[root@docker-manager-1 ~]#[root@docker-2 ~]# service docker restart
Redirecting to /bin/systemctl restart docker.service
[root@docker-2 ~]#[root@docker-3 ~]# service docker restart
Redirecting to /bin/systemctl restart docker.service
[root@docker-3 ~]#root@chaochao:~# service docker restart
root@chaochao:~#5.创建swarm集群
对于manager：
# 命令：docker swarm init --advertise-addr manager的IP地址
[root@docker-manager-1 ~]# docker swarm init --advertise-addr 192.168.232.132
Swarm initialized: current node (ooauma1x037wufqkh21uj0j7v) is now a manager.
?
To add a worker to this swarm, run the following command:
?
??? docker swarm join --token SWMTKN-1-0200k3nv43fmc6hcuurx8z1iehsqq6uro12qjfeoxrkmk9fmom-1ub4wsmlpl4zhqalzdrgukx3l 192.168.232.132:2377
?
To add a manager to this swarm, run 'docker swarm join-token manager' and follow the instructions.
?
[root@docker-manager-1 ~]#对于三台swarm nodes
输入manager创建的命令： docker swarm join --token ……,此命令在manager创建swarm时会自动生成。
[root@docker-2 ~]# docker swarm join --token SWMTKN-1-0200k3nv43fmc6hcuurx8z1iehsqq6uro12qjfeoxrkmk9fmom-1ub4wsmlpl4zhqalzdrgukx3l 192.168.232.132:2377
This node joined a swarm as a worker.
[root@docker-2 ~]#[root@docker-3 ~]# docker swarm join --token SWMTKN-1-0200k3nv43fmc6hcuurx8z1iehsqq6uro12qjfeoxrkmk9fmom-1ub4wsmlpl4zhqalzdrgukx3l 192.168.232.132:2377
This node joined a swarm as a worker.
[root@docker-3 ~]#root@chaochao:~# docker swarm join --token SWMTKN-1-0200k3nv43fmc6hcuurx8z1iehsqq6uro12qjfeoxrkmk9fmom-1ub4wsmlpl4zhqalzdrgukx3l 192.168.232.132:2377
This node joined a swarm as a worker.
root@chaochao:~#三、创建NFS服务服务器为所有的节点提供相同Web数据，使用数据卷，为容器提供一致的Web数据
1.准备一台服务器担任NFS Server
客户机配置：CentOS8（1核/2G）
IP地址：192.168.232.135
修改好主机名：nfs-server
root@docker-4 ~]# hostnamectl set-hostname nfs-server
[root@docker-4 ~]# su
[root@nfs-server ~]#共享的Web集群服务器信息如下：
IP：192.168.232.132 主机名：docker-manager-1 担任角色：swarm manager
IP：192.168.232.133 主机名：docker-2 担任角色：swarm node1
IP：192.168.232.134 主机名：docker-3 担任角色：swarm node2
IP：192.168.232.131 主机(ubuntu)名：chaochao 担任角色：swarm node3
2.安装和启动nfs服务
[root@nfs-server ~]# yum install nfs-utils -y
[root@nfs-server ~]# service nfs-server start
Redirecting to /bin/systemctl start nfs-server.service
[root@nfs-server ~]#查看nfs服务的进程： ps aux|grep nfs
[root@nfs-server ~]# ps aux|grep nfs
root??????? 2346? 0.0? 0.1? 50108? 2672 ???????? Ss?? 19:39?? 0:00 /usr/sbin/nfsdcld
root??????? 2352? 0.0? 0.0????? 0???? 0 ???????? S??? 19:39?? 0:00 [nfsd]
root??????? 2353? 0.0? 0.0????? 0???? 0 ???????? S??? 19:39?? 0:00 [nfsd]
root??????? 2354? 0.0? 0.0????? 0???? 0 ???????? S??? 19:39?? 0:00 [nfsd]
root??????? 2355? 0.0? 0.0????? 0???? 0 ???????? S??? 19:39?? 0:00 [nfsd]
root??????? 2356? 0.0? 0.0????? 0???? 0 ???????? S??? 19:39?? 0:00 [nfsd]
root??????? 2357? 0.0? 0.0????? 0???? 0 ???????? S??? 19:39?? 0:00 [nfsd]
root??????? 2358? 0.0? 0.0????? 0???? 0 ???????? S??? 19:39?? 0:00 [nfsd]
root??????? 2359? 0.0? 0.0????? 0???? 0 ???????? S??? 19:39?? 0:00 [nfsd]
root??????? 2367? 0.0? 0.0? 12324? 1064 pts/0??? S+?? 19:40?? 0:00 grep --color=auto nfs
[root@nfs-server ~]#3.通过NFS共享文件
编辑/etc/exports,写好共享的具体目录、权限以及共享的网段、IP。
[root@nfs-server /]# vim /etc/exports
[root@nfs-server /]# cat /etc/exports
/web 192.168.232.0/24(rw,all_squash,sync)
/download 192.168.232.0/24(ro,all_squash,sync)
[root@nfs-server /]#刷新输出文件的列表
[root@nfs-server /]# exportfs -rv
exporting 192.168.232.0/24:/download
exporting 192.168.232.0/24:/web
[root@nfs-server /]#
[root@nfs-server /]# cd /download/
[root@nfs-server download]# ls
[root@nfs-server download]# vim chao.txt
[root@nfs-server download]# ls
chao.txt
[root@nfs-server download]# exportfs -rv
exporting 192.168.232.0/24:/download
exporting 192.168.232.0/24:/web
[root@nfs-server download]#4.关闭防火墙和selinux
[root@nfs-server download]# service firewalld stop
Redirecting to /bin/systemctl stop firewalld.service
[root@nfs-server download]# systemctl disable firewalld
[root@nfs-server download]# getenforce
Disabled
[root@nfs-server download]#5.在客户机上挂载宿主机上的NFS服务器共享的目录
在客户机上安装NFS服务：yum install nfs-utils -y
[root@docker-2 lianxi]# yum install nfs-utils -y查看宿主机共享的目录
[root@docker-2 lianxi]# showmount -e 192.168.232.135
Export list for 192.168.232.135:
/download 192.168.232.0/24
/web????? 192.168.232.0/24
[root@docker-2 lianxi]#6.挂载nfs-server上的共享目录到客户机
[root@docker-2 lianxi]# mount 192.168.232.135:/web /web
[root@docker-2 lianxi]# cd /web
[root@docker-2 web]# ls
1.jpg? index.html? rep.html
[root@docker-2 web]#
[root@docker-2 web]# df -Th
文件系统???????????? 类型????? 容量? 已用? 可用 已用% 挂载点
devtmpfs???????????? devtmpfs? 876M???? 0? 876M??? 0% /dev
tmpfs??????????????? tmpfs???? 896M???? 0? 896M??? 0% /dev/shm
tmpfs??????????????? tmpfs???? 896M?? 18M? 878M??? 2% /run
tmpfs??????????????? tmpfs???? 896M???? 0? 896M??? 0% /sys/fs/cgroup
/dev/mapper/cl-root? xfs??????? 17G? 8.2G? 8.9G?? 48% /
/dev/sda1??????????? xfs????? 1014M? 193M? 822M?? 19% /boot
tmpfs??????????????? tmpfs???? 180M???? 0? 180M??? 0% /run/user/0
overlay????????????? overlay??? 17G? 8.2G? 8.9G?? 48% /var/lib/docker/overlay2/c2434295873b6ce0f136d4851cb9a9bf10b1ebf77e80f611841484967b857c94/merged
overlay????????????? overlay??? 17G? 8.2G? 8.9G?? 48% /var/lib/docker/overlay2/8b5420179cd05a4a8ea039ba9357f7d59ddfec2fd3f185702a5a0d97883564f2/merged
overlay????????????? overlay??? 17G? 8.2G? 8.9G?? 48% /var/lib/docker/overlay2/d9f99510abb4c5d5496e54d11ff763be47610ee7851207aec9fdbb1022f14016/merged
overlay????????????? overlay??? 17G? 8.2G? 8.9G?? 48% /var/lib/docker/overlay2/5a87e34567ece3a64a835bcd4cfe59d2ebdf0d36bf74fbd07dff8c82a94f37a2/merged
overlay????????????? overlay??? 17G? 8.2G? 8.9G?? 48% /var/lib/docker/overlay2/b70caa1ed0c781711a41cd82a0a91d465a6e02418633bfa00ce398c92405baff/merged
192.168.232.135:/web nfs4?????? 17G? 7.8G? 9.2G?? 46% /web
[root@docker-2 web]#[root@docker-manager-1 web]# ls
[root@docker-manager-1 web]# mount 192.168.232.135:/web /web
[root@docker-manager-1 web]# ls
[root@docker-manager-1 web]# cd /web
[root@docker-manager-1 web]# ls
1.jpg? index.html? rep.html
[root@docker-manager-1 web]# df -Th
……
overlay????????????? overlay??? 17G? 8.3G? 8.8G?? 49% /var/lib/docker/overlay2/06cbd339366e8aeb492b21561573d953073e203122262e5089461da0d0d316a0/merged
overlay????????????? overlay??? 17G? 8.3G? 8.8G?? 49% /var/lib/docker/overlay2/a132f32c9cff25a1a143e325f2aecd0186630df66748c95984bb3cf2ce9fe8b2/merged
overlay????????????? overlay??? 17G? 8.3G? 8.8G?? 49% /var/lib/docker/overlay2/e1efba32267a46940402f682034d07ed51b8ee200186d5acc0c48144cd9fe31e/merged
192.168.232.135:/web nfs4?????? 17G? 7.8G? 9.2G?? 46% /web
[root@docker-manager-1 web]#[root@docker-3 web]# showmount 192.168.232.135 -e
Export list for 192.168.232.135:
/download 192.168.232.0/24
/web????? 192.168.232.0/24
[root@docker-3 web]# mount 192.168.232.135:/web /web
[root@docker-3 web]# cd /web
[root@docker-3 web]# ls
1.jpg? index.html? rep.html
[root@docker-3 web]# df -TH
文件系统???????????? 类型????? 容量? 已用? 可用 已用% 挂载点
devtmpfs???????????? devtmpfs? 919M???? 0? 919M??? 0% /dev
tmpfs??????????????? tmpfs???? 939M???? 0? 939M??? 0% /dev/shm
tmpfs??????????????? tmpfs???? 939M?? 18M? 921M??? 2% /run
tmpfs??????????????? tmpfs???? 939M???? 0? 939M??? 0% /sys/fs/cgroup
/dev/mapper/cl-root? xfs??????? 19G? 8.8G? 9.6G?? 48% /
/dev/sda1??????????? xfs?????? 1.1G? 202M? 862M?? 19% /boot
tmpfs??????????????? tmpfs???? 188M???? 0? 188M??? 0% /run/user/0
overlay????????????? overlay??? 19G? 8.8G? 9.6G?? 48% /var/lib/docker/overlay2/8b5420179cd05a4a8ea039ba9357f7d59ddfec2fd3f185702a5a0d97883564f2/merged
overlay????????????? overlay??? 19G? 8.8G? 9.6G?? 48% /var/lib/docker/overlay2/c2434295873b6ce0f136d4851cb9a9bf10b1ebf77e80f611841484967b857c94/merged
overlay????????????? overlay??? 19G? 8.8G? 9.6G?? 48% /var/lib/docker/overlay2/6b933ab92577f653a29dcac782a2c5e79bcdbbf219a7ccebb38b585ef117e0b4/merged
overlay????????????? overlay??? 19G? 8.8G? 9.6G?? 48% /var/lib/docker/overlay2/40cc77a0f1c7281915947c1fefeb595837eb75fffec0d808a9994ac1fbde5f90/merged
192.168.232.135:/web nfs4?????? 19G? 8.4G? 9.9G?? 46% /web
[root@docker-3 web]#root@chaochao:~# mkdir /web
root@chaochao:~# mount 192.168.232.135:/web /web
root@chaochao:~# cd /web
root@chaochao:/web# ls
1.jpg? index.html? rep.html
root@chaochao:/web# df -Th
Filesystem??????????????????????? Type????? Size? Used Avail Use% Mounted on
udev????????????????????????????? devtmpfs? 433M???? 0? 433M?? 0% /dev
tmpfs???????????????????????????? tmpfs????? 96M? 1.6M?? 94M?? 2% /run
/dev/mapper/ubuntu--vg-ubuntu--lv ext4?????? 19G? 6.9G?? 11G? 39% /
tmpfs???????????????????????????? tmpfs???? 477M???? 0? 477M?? 0% /dev/shm
tmpfs???????????????????????????? tmpfs???? 5.0M???? 0? 5.0M?? 0% /run/lock
tmpfs???????????????????????????? tmpfs???? 477M???? 0? 477M?? 0% /sys/fs/cgroup
/dev/sda2???????????????????????? ext4????? 976M? 202M? 707M? 23% /boot
/dev/loop1??????????????????????? squashfs?? 70M?? 70M???? 0 100% /snap/lxd/19188
/dev/loop3??????????????????????? squashfs?? 71M?? 71M???? 0 100% /snap/lxd/21029
/dev/loop2??????????????????????? squashfs?? 56M?? 56M???? 0 100% /snap/core18/2074
/dev/loop4??????????????????????? squashfs?? 33M?? 33M???? 0 100% /snap/snapd/12704
/dev/loop5??????????????????????? squashfs?? 32M?? 32M???? 0 100% /snap/snapd/10707
/dev/loop6??????????????????????? squashfs?? 56M?? 56M???? 0 100% /snap/core18/2128
tmpfs???????????????????????????? tmpfs????? 96M???? 0?? 96M?? 0% /run/user/1000
overlay?????????????????????????? overlay??? 19G? 6.9G?? 11G? 39% /var/lib/docker/overlay2/a2d7dea3b856302cf61d9584be91aa69614a8b25db3a7b6c91317d71a6d68a3c/merged
overlay?????????????????????????? overlay??? 19G? 6.9G?? 11G? 39% /var/lib/docker/overlay2/c6188638a4df298b840dce222da041733de01e636362c34c4c0e34cec9a34e08/merged
overlay?????????????????????????? overlay??? 19G? 6.9G?? 11G? 39% /var/lib/docker/overlay2/e94850d48ea1962457edacef2d09cfaa838fad8b9899d4455c9b31caa11c07e1/merged
192.168.232.135:/web????????????? nfs4?????? 17G? 7.8G? 9.2G? 46% /web

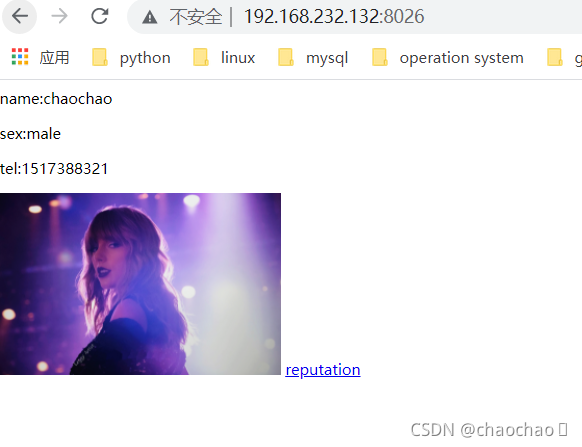

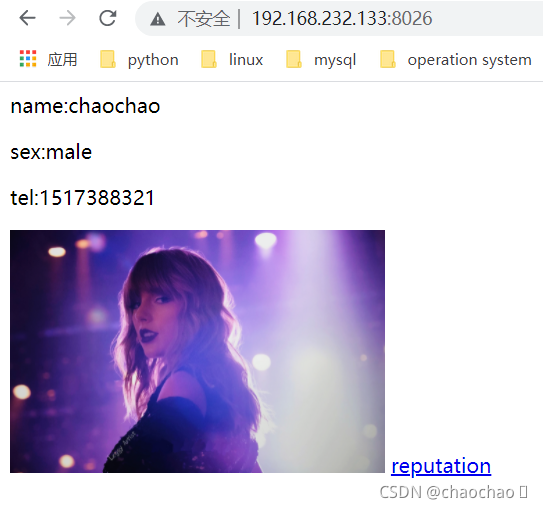

root@chaochao:/web#7.使用nfs服务服务器共享的文件，通过volume数据卷是否共享文件成功
命令：docker service create --name nfs-service-1 --mount 'type=volume,source=nfs-volume,target=/usr/share/nginx/html,volume-driver=local,volume-opt=type=nfs,volume-opt=device=:/web,"volume-opt=o=addr=192.168.232.135,rw,nfsvers=4,async"' --replicas 10 -p 8026:80 nginx:latest
source=nfs-volume? --> docker宿主机上的卷的名字
/usr/share/nginx/html -->容器里存放网页的目录
volume-driver=local? --> 访问本地的某个目录的
volume-opt=type=nfs? --> volume对nfs的支持选项
volume-opt=device=:/web --> 是nfs服务器共享目录
volume-opt=o=addr=192.168.232.135,rw,nfsvers=4,async? 挂载具体的nfs服务器的ip地址和选项
--replicas 10? 副本的数量
nfsvers=4 --> nfs版本
async? --> 异步
?
[root@docker-manager-1 web]# docker service create --name nfs-service-1? --mount 'type=volume,source=nfs-volume,target=/usr/share/nginx/html,volume-driver=local,volume-opt=type=nfs,volume-opt=device=:/web,"volume-opt=o=addr=192.168.232.135,rw,nfsvers=4,async"' --replicas 10 -p 8026:80 nginx:latest
3ws4b26bo2tgi48czckm6jin7
overall progress: 10 out of 10 tasks
1/10: running?? [==================================================>]
2/10: running?? [==================================================>]
3/10: running?? [==================================================>]
4/10: running?? [==================================================>]
5/10: running?? [==================================================>]
6/10: running?? [==================================================>]
7/10: running?? [==================================================>]
8/10: running?? [==================================================>]
9/10: running?? [==================================================>]
10/10: running?? [==================================================>]
verify: Service converged
[root@docker-manager-1 web]#
[root@docker-manager-1 ~]# cd /var/lib/docker/volumes/nfs-volume/_data
[root@docker-manager-1 _data]# ls
1.jpg? index.html? rep.html
[root@docker-manager-1 _data]#
?
[root@docker-2 ~]# cd /var/lib/docker/volumes/nfs-volume/_data
[root@docker-2 _data]# ls
1.jpg? index.html? rep.html
[root@docker-2 _data]#8.访问服务，成功实现文件共享
四、使用Nginx+keepalived实现双VIP负载均衡高可用
首先实现负载均衡，步骤如下：
1.准备两台台客户机作为负载均衡器
IP：192.168.232.136 主机名：load-balancer担任角色：负载均衡器（master）
IP：192.168.232.137 主机名：load-balancer担任角色：负载均衡器（backup）
2.编译脚本
[root@load-balancer ~]# vim onekey_install_lizhichao_nginx_v10.sh
[root@load-balancer ~]# cat onekey_install_lizhichao_nginx_v10.sh
#!/bin/bash
?
#解决软件的依赖关系，需要安装的软件包
yum -y install zlib zlib-devel openssl openssl-devel pcre pcre-devel gcc gcc-c++ autoconf automake make psmisc net-tools lsof vim wget
?
#新建chaochao用户和组
id? chaochao || useradd chaochao -s /sbin/nologin
?
#下载nginx软件
mkdir? /lzc_load_balancing -p
cd /lzc_load_balancing
wget? http://nginx.org/download/nginx-1.21.1.tar.gz
?
#解压软件
tar xf nginx-1.21.1.tar.gz
#进入解压后的文件夹
cd nginx-1.21.1
?
#编译前的配置
./configure --prefix=/usr/local/lzc_load_balancing? --user=chaochao --group=chaochao? --with-http_ssl_module?? --with-threads? --with-http_v2_module? --with-http_stub_status_module? --with-stream
?
#如果上面的编译前的配置失败，直接退出脚本
if (( $? != 0));then
? exit
fi
#编译
make -j 2
#编译安装
make? install
?
#修改PATH变量
echo? "PATH=$PATH:/usr/local/lzc_load_balancing/sbin" >>/root/.bashrc
#执行修改了环境变量的脚本
source /root/.bashrc
?
?
#firewalld and selinux
?
#stop firewall和设置下次开机不启动firewalld
service firewalld stop
systemctl disable firewalld
?
#临时停止selinux和永久停止selinux
setenforce 0
sed? -i '/^SELINUX=/ s/enforcing/disabled/' /etc/selinux/config
?
#开机启动
chmod +x /etc/rc.d/rc.local
echo? "/usr/local/lzc_load_balancing/sbin/nginx" >>/etc/rc.local
?
[root@load-balancer ~]#3.安装运行脚本
[root@load-balacer ~]# bash onekey_install_lizhichao_nginx_v10.sh
……
test -d '/usr/local/lzc_load_balancing/logs' \
|| mkdir -p '/usr/local/lzc_load_balancing/logs'
make[1]: 离开目录“/lzc_load_balancing/nginx-1.21.1”
Redirecting to /bin/systemctl stop firewalld.service
[root@load-balancer ~]#4.启动nginx
命令：
nginx? 启动nginx
nginx -s stop? 关闭nginx
[root@load-balancer nginx-1.21.1]# nginx
[root@load-balancer nginx-1.21.1]#
[root@load-balancer nginx-1.21.1]# ps aux|grep nginx
root??????? 9301? 0.0? 0.2 119148? 2176 ???????? Ss?? 18:20?? 0:00 nginx: master process nginx
nginx?????? 9302? 0.0? 0.9 151824? 7912 ???????? S??? 18:20?? 0:00 nginx: worker process
root??????? 9315? 0.0? 0.1? 12344? 1108 pts/0??? S+?? 18:21?? 0:00 grep --color=auto nginx
[root@load-banlancer nginx-1.21.1]# ss -anplut|grep nginx
tcp???? LISTEN?? 0??????? 128????????????? 0.0.0.0:80??????????? 0.0.0.0:*?????? users:(("nginx",pid=9302,fd=9),("nginx",pid=9301,fd=9))???????????????????????
tcp???? LISTEN?? 0??????? 128???????????????? [::]:80?????????????? [::]:*?????? users:(("nginx",pid=9302,fd=10),("nginx",pid=9301,fd=10))?????????????????????
[root@load-banlancer nginx-1.21.1]#5.配置nginx里的负载均衡功能
[root@load-balancer nginx-1.21.1]# cd /usr/local/lzc_load_balancing/
[root@load-balancer lzc_load_balancing]# ls
conf? html? logs? sbin
[root@load-balancer lzc_load_balancing]# cd conf/
[root@load-balancer conf]# ls
fastcgi.conf????????? fastcgi_params.default? mime.types????????? nginx.conf.default?? uwsgi_params
fastcgi.conf.default? koi-utf???????????????? mime.types.default? scgi_params????????? uwsgi_params.default
fastcgi_params??????? koi-win???????????????? nginx.conf????????? scgi_params.default? win-utf
[root@load-balancer conf]# vim nginx.conf
[root@load-balancer conf]# cat nginx.conf #以下仅显示修改了的脚本部分
http {
??? include?????? mime.types;
??? default_type? application/octet-stream;
?
??? #log_format? main? '$remote_addr - $remote_user [$time_local] "$request" '
??? #????????????????? '$status $body_bytes_sent "$http_referer" '
??? #????????????????? '"$http_user_agent" "$http_x_forwarded_for"';
?
??? #access_log? logs/access.log? main;
?
??? sendfile??????? on;
??? #tcp_nopush???? on;
?
??? #keepalive_timeout? 0;
??? keepalive_timeout? 65;
?
??? #gzip? on;
??? upstream chaoweb{ #定义一个负载均衡器的名字为：chaoweb
??????? server 192.168.232.132:8026;
??????? server 192.168.232.131:8026;
??????? server 192.168.232.133:8026;
??????? server 192.168.232.134:8026;
???????
}
??? server {
??????? listen?????? 80;
??????? server_name? www.lizhichao.com; #设置域名为www.sc.com
?
??????? #charset koi8-r;
?
??????? #access_log? logs/host.access.log? main;
?
??????? location / {
??????? server 192.168.232.134:8026;
?
}
??? server {
??????? listen?????? 80;
??????? server_name? www.lizhichao.com; #设置域名为www.sc.com
??????? location /{
??????????? proxy_pass http://chaoweb; #调用负载均衡器
}
[root@load-balancer conf]# nginx -s reload # 重新加载配置文件
[root@load-banlancer conf]# ps aux|grep nginx
root??????? 9301? 0.0? 1.2 120068? 9824 ???????? Ss?? 18:20?? 0:00 nginx: master process nginx
nginx?????? 9395? 0.1? 1.0 152756? 8724 ???????? S??? 19:16?? 0:00 nginx: worker process
root??????? 9397? 0.0? 0.1? 12344? 1044 pts/0??? S+?? 19:18?? 0:00 grep --color=auto nginx
[root@load-balancer conf]#6.在Windows添加IP映射并查看效果
修改windows的hosts文件，点击此处查看方法
在C:\Windows\System32\drivers\etc的hosts文件
在swarm集群上查看。
[root@docker-manager-1 ~]# vim /etc/hosts
[root@docker-manager-1 ~]# cat /etc/hosts
127.0.0.1?? localhost localhost.localdomain localhost4 localhost4.localdomain4
::1???????? localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.232.132 manager
192.168.232.133 worker1
192.168.232.134 worker2
192.168.232.131 worker3
192.168.232.136 www.lizhichao.com
[root@docker-manager-1 ~]# curl www.lizhichao.com
<html>
<head>
<title>chaochao</title>
</head>
<body>
<p>name:chaochao</p>
<p>sex:male</p>
<p>tel:1517388321</p>
<img src=1.jpg>
<a href=rep.html>reputation</a>
</body>
</html>
[root@docker-manager-1 ~]#7.查看负载均衡的分配情况
用抓包工具来查看：tcpdump
[root@load-balancer ~]# yum install tcpdump -y另一台负载均衡器操作一致，不再赘述。（同时也可以通过克隆客户机快速实现两台负载均衡
接下来展示使用keepalived实现双VIP高可用的步骤：
1.安装keepalived
命令：yum install keepalived -y
[root@load-balancer ~]# yum install keepalived -y[root@load-balancer-2 ~]# yum install keepalived -y2.配置keepalived.conf文件
对于单VIP下的master：
[root@load-balancer ~]# vim /etc/keepalived/keepalived.conf
[root@load-balancer ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
?
global_defs {
?? notification_email {
???? acassen@firewall.loc
???? failover@firewall.loc
???? sysadmin@firewall.loc
?? }
?? notification_email_from Alexandre.Cassen@firewall.loc
?? smtp_server 192.168.200.1
?? smtp_connect_timeout 30
?? router_id LVS_DEVEL
?? vrrp_skip_check_adv_addr
?? #vrrp_strict
?? vrrp_garp_interval 0
?? vrrp_gna_interval 0
}
?
vrrp_instance VI_1 {
??? state MASTER
??? interface ens33
??? virtual_router_id 168
??? priority 220
??? advert_int 1
??? authentication {
??????? auth_type PASS
??????? auth_pass 1111
??? }
??? virtual_ipaddress {
??????? 192.168.232.168
??? }
}
?
vrrp_instance VI_2 {
?? ?state BACKUP
??? interface ens33
?? ?virtual_router_id 169
??? priority 180
??? advert_int 1
??? authentication {
??????? auth_type PASS
??????? auth_pass 1111
??? }
??? virtual_ipaddress {
?????? ?192.168.232.169
??? }
}
?
[root@load-balancer ~]#对于单VIP下的backup：
[root@load-balancer-2 ~]# vim /etc/keepalived/keepalived.conf
[root@load-balancer-2 ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
?
global_defs {
?? notification_email {
???? acassen@firewall.loc
???? failover@firewall.loc
???? sysadmin@firewall.loc
?? }
?? notification_email_from Alexandre.Cassen@firewall.loc
?? smtp_server 192.168.200.1
?? smtp_connect_timeout 30
?? router_id LVS_DEVEL
?? vrrp_skip_check_adv_addr
?? #vrrp_strict
?? vrrp_garp_interval 0
?? vrrp_gna_interval 0
}
?
vrrp_instance VI_1 {
??? state BACKUP
??? interface ens33
??? virtual_router_id 168
??? priority 130
??? advert_int 1
??? authentication {
??????? auth_type PASS
??????? auth_pass 1111
??? }
??? virtual_ipaddress {
??????? 192.168.232.168
}
}
?
vrrp_instance VI_2 {
? ??state MASTER
??? interface ens33
??? virtual_router_id 169
??? priority 200
??? advert_int 1
??? authentication {
??????? auth_type PASS
??????? auth_pass 1111
??? }
??? virtual_ipaddress {
??????? 192.168.232.169
??? }
}
?
[root@load-balancer-2 ~]#2.重启keepalived服务
对于单VIP下的master：
[root@load-balancer ~]# service keepalived restart
Redirecting to /bin/systemctl restart keepalived.service
[root@load-balancer ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
??? link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
??? inet 127.0.0.1/8 scope host lo
?????? valid_lft forever preferred_lft forever
??? inet6 ::1/128 scope host
?????? valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
??? link/ether 00:0c:29:9a:d6:b6 brd ff:ff:ff:ff:ff:ff
??? inet 192.168.232.136/24 brd 192.168.232.255 scope global dynamic noprefixroute ens33
?????? valid_lft 1374sec preferred_lft 1374sec
?? ?inet 192.168.232.168/32 scope global ens33
?????? valid_lft forever preferred_lft forever
??? inet6 fe80::b4cd:b005:c610:7b3b/64 scope link dadfailed tentative noprefixroute
?????? valid_lft forever preferred_lft forever
??? inet6 fe80::40fb:5be0:b6f9:b063/64 scope link dadfailed tentative noprefixroute
?????? valid_lft forever preferred_lft forever
??? inet6 fe80::2513:c641:3555:5eeb/64 scope link dadfailed tentative noprefixroute
?????? valid_lft forever preferred_lft forever
[root@load-balancer ~]#对于单VIP下的backup：
[root@load-balancer-2 ~]# service keepalived restart
Redirecting to /bin/systemctl restart keepalived.service
[root@load-balancer-2 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
??? link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
??? inet 127.0.0.1/8 scope host lo
?????? valid_lft forever preferred_lft forever
??? inet6 ::1/128 scope host
?????? valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
??? link/ether 00:0c:29:04:e5:b4 brd ff:ff:ff:ff:ff:ff
??? inet 192.168.232.137/24 brd 192.168.232.255 scope global dynamic noprefixroute ens33
?????? valid_lft 1435sec preferred_lft 1435sec
?? ?inet 192.168.232.169/32 scope global ens33
?????? valid_lft forever preferred_lft forever
??? inet6 fe80::b4cd:b005:c610:7b3b/64 scope link dadfailed tentative noprefixroute
?????? valid_lft forever preferred_lft forever
??? inet6 fe80::40fb:5be0:b6f9:b063/64 scope link dadfailed tentative noprefixroute
?????? valid_lft forever preferred_lft forever
??? inet6 fe80::2513:c641:3555:5eeb/64 scope link dadfailed tentative noprefixroute
?????? valid_lft forever preferred_lft forever
[root@load-balancer-2 ~]#3.测试是否成功实现
[root@load-balancer-2 ~]# nginx
[root@load-balancer-2 ~]# curl 192.168.232.169
<html>
<head>
<title>chaochao</title>
</head>
<body>
<p>name:chaochao</p>
<p>sex:male</p>
<p>tel:1517388321</p>
<img src=1.jpg>
<a href=rep.html>reputation</a>
</body>
</html>
[root@load-balancer-2 ~]#五、使用Prometheus实现对swarm集群的监控，结合Grafana成图工具进行数据展示
1.环境部署
IP：192.168.232.138 主机名：prometheus-server 担任角色：prometheus-server
IP：192.168.232.136 主机名：load-balancer担任角色：负载均衡器(master)
IP：192.168.232.137 主机名：load-balancer担任角色：负载均衡器（backup）
IP：192.168.232.132 主机名：docker-manager-1 担任角色：swarm manager
IP：192.168.232.133 主机名：docker-2 担任角色：swarm worker node1
IP：192.168.232.134 主机名：docker-3 担任角色：swarm worker node2
IP：192.168.232.131 主机(ubuntu)名：chaochao 担任角色：swarm worker node3
IP：192.168.232.135 主机名：nfs-server 担任角色：nfs服务器
2.下载Prometheus安装包并解压到服务器
[root@prometheus-server ~]# mkdir /prometheus
[root@prometheus-server ~]# cp prometheus-2.29.1.linux-amd64.tar.gz /prometheus/
[root@prometheus-server ~]# cd /prometheus
[root@prometheus-server prometheus]# ls
prometheus-2.29.1.linux-amd64.tar.gz
[root@prometheus-server prometheus]# tar xf prometheus-2.29.1.linux-amd64.tar.gz
[root@prometheus-server prometheus]# ls
prometheus-2.29.1.linux-amd64? prometheus-2.29.1.linux-amd64.tar.gz
[root@prometheus-server prometheus]# cd prometheus-2.29.1.linux-amd64
[root@prometheus-server prometheus-2.29.1.linux-amd64]# ls
console_libraries? consoles? LICENSE? NOTICE? prometheus? prometheus.yml? promtool3.修改环境变量
[root@prometheus-server prometheus-2.29.1.linux-amd64]# PATH=$PATH:/prometheus/prometheus-2.29.1.linux-amd64
[root@prometheus-server prometheus-2.29.1.linux-amd64]# which prometheus
/prometheus/prometheus-2.29.1.linux-amd64/prometheus
[root@prometheus-server prometheus-2.29.1.linux-amd64]#问题：误输入PATH命令导致ls，vim等识别不了
解决方法：输入命令：export PATH=/usr/local/sbin:/usr/local/bin:/sbin:/bin:/usr/sbin:/usr/bin:/root/bin
TIPS：
此步骤可以添加环境变量到.bashrc文件
[root@prometheus-server prometheus-2.29.1.linux-amd64]# cat /root/.bashrc
# .bashrc
?
# User specific aliases and functions
?
alias rm='rm -i'
alias cp='cp -i'
alias mv='mv -i'
?
# Source global definitions
if [ -f /etc/bashrc ]; then
. /etc/bashrc
fi
PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/root/bin:/usr/local/lzc_load_balancing/sbin
PATH=$PATH:/prometheus/prometheus-2.29.1.linux-amd64
[root@prometheus-server prometheus-2.29.1.linux-amd64]#4.启动Prometheus
命令：./prometheus --config.file=prometheus.yml
后台运行命令：nohup?? ./prometheus --config.file=prometheus.yml &
[root@prometheus-server prometheus-2.29.1.linux-amd64]# ./prometheus --config.file=prometheus.yml
level=info ts=2021-08-25T12:00:48.976Z caller=main.go:390 msg="No time or size retention was set so using the default time retention" duration=15d
level=info ts=2021-08-25T12:00:48.977Z caller=main.go:428 msg="Starting Prometheus" version="(version=2.29.1, branch=HEAD, revision=dcb07e8eac34b5ea37cd229545000b857f1c1637)"
level=info ts=2021-08-25T12:00:48.977Z caller=main.go:433 build_context="(go=go1.16.7, user=root@364730518a4e, date=20210811-14:48:27)"5.查看Prometheus进程
[root@prometheus-server prometheus-2.29.1.linux-amd64]# ps aux|grep prometheus
root??????? 1677? 2.6? 8.1 780596 64948 pts/0??? Sl+? 20:00?? 0:01 ./prometheus --config.file=prometheus.yml
root??????? 1733? 0.0? 0.1? 12344? 1060 pts/1??? R+?? 20:01?? 0:00 grep --color=auto prometheus
[root@prometheus-server prometheus-2.29.1.linux-amd64]#6.访问Prometheus
http://localhost:9090/graph? --》web界面的
http://localhost:9090/metrics? ---》查看prometheus的各种指标
接下来在被监控的服务器上安装exporter
在swarm manager上安装exporter为例
1.安装node_exporter
[root@docker-manager-1 ~]# mkdir /exporter
[root@docker-manager-1 ~]# cd /exporter/
[root@docker-manager-1 exporter]# ls
[root@docker-manager-1 exporter]# ls
node_exporter-1.2.2.linux-amd64.tar.gz
[root@docker-manager-1 exporter]#2.运行exporter
命令：nohup ./node_exporter --web.listen-address="0.0.0.0:9100" &
[root@docker-manager-1 node_exporter-1.2.2.linux-amd64]# nohup ./node_exporter --web.listen-address="0.0.0.0:9100" &
[1] 120539
[root@docker-manager-1 node_exporter-1.2.2.linux-amd64]# nohup: 忽略输入并把输出追加到'nohup.out'
[root@docker-manager-1 node_exporter-1.2.2.linux-amd64]# ps aux|grep exporter
root????? 120539? 0.0? 0.6 716436 11888 pts/0??? Sl?? 11:23?? 0:00 ./node_exporter --web.listen-address=0.0.0.0:9100
root????? 120551? 0.0? 0.0? 12324?? 996 pts/0??? S+?? 11:23?? 0:00 grep --color=auto exporter
[root@docker-manager-1 node_exporter-1.2.2.linux-amd64]#3.在Prometheus-server上面修改Prometheus.yml文件
[root@prometheus-server prometheus-2.29.1.linux-amd64]# vim prometheus.yml
[root@prometheus-server prometheus-2.29.1.linux-amd64]# cat prometheus.yml
# my global config
global:
? scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
? evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
? # scrape_timeout is set to the global default (10s).
# Alertmanager configuration
alerting:
? alertmanagers:
??? - static_configs:
??????? - targets:
????????? # - alertmanager:9093
# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
? # - "first_rules.yml"
? # - "second_rules.yml"
# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
? # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
? - job_name: "prometheus"
??? # metrics_path defaults to '/metrics'
??? # scheme defaults to 'http'.
??? static_configs:
????? - targets: ["localhost:9090"]
? - job_name: "swarm-manager"
???
??? # metrics_path defaults to '/metrics'
??? # scheme defaults to 'http'.
??? static_configs:
????? - targets: ["192.168.232.132:9100"]????????????????????????????????? ??????????????????????????????????????????????????????
4.重启Prometheus服务
[root@prometheus-server prometheus-2.29.1.linux-amd64]# ps aux|grep prome
root??????? 1677? 0.0? 5.6 1044504 44944 ??????? Sl?? 05:49?? 0:18 ./prometheus --config.file=prometheus.yml
root??????? 2552? 0.0? 0.1? 12344? 1076 pts/1??? R+?? 11:27?? 0:00 grep --color=auto prome
[root@prometheus-server prometheus-2.29.1.linux-amd64]# kill -9 1677
[root@prometheus-server prometheus-2.29.1.linux-amd64]# ps aux|grep prome
root??????? 2556? 0.0? 0.1? 12344? 1196 pts/1??? R+?? 11:28?? 0:00 grep --color=auto prome
[root@prometheus-server prometheus-2.29.1.linux-amd64]# nohup ./prometheus --config.file=prometheus.yml &
[1] 2640
[root@prometheus-server prometheus-2.29.1.linux-amd64]# nohup: 忽略输入并把输出追加到'nohup.out'
^C
[root@prometheus-server prometheus-2.29.1.linux-amd64]# ps aux|grep prom
root??????? 2640? 4.0 11.5 782384 92084 pts/1??? Sl?? 11:38?? 0:00 ./prometheus --config.file=prometheus.yml
root??????? 2648? 0.0? 0.1? 12344? 1044 pts/1??? S+?? 11:38?? 0:00 grep --color=auto prom5.访问Prometheus
其他三个工具节点操作一致，在这里不再赘述
接下来在Prometheus server进行grafana的安装部署
1.创建grafana.repo文件
[root@prometheus-server yum.repos.d]# vim grafana.repo
[root@prometheus-server yum.repos.d]# cat grafana.repo
[grafana]
name=grafana
baseurl=https://packages.grafana.com/enterprise/rpm
repo_gpgcheck=1
enabled=1
gpgcheck=1
gpgkey=https://packages.grafana.com/gpg.key
sslverify=1
sslcacert=/etc/pki/tls/certs/ca-bundle.crt
[root@prometheus-server yum.repos.d]#2.安装grafana
[root@prometheus-server yum.repos.d]# yum install grafana -y3.运行grafana server
[root@prometheus-server yum.repos.d]# systemctl start grafana-server
[root@prometheus-server yum.repos.d]#
[root@prometheus-server yum.repos.d]# ps aux|grep grafana
root??????? 3019? 0.0? 0.1 169472?? 800 ???????? Ss?? 14:34?? 0:00 gpg-agent --homedir /var/cache/dnf/grafana-ee12c6ab2813e349/pubring --use-standard-socket --daemon
grafana???? 3553? 4.0 10.0 1302412 80140 ??????? Ssl? 14:36?? 0:01 /usr/sbin/grafana-server --config=/etc/grafana/grafana.ini --pidfile=/var/run/grafana/grafana-server.pid --packaging=rpm cfg:default.paths.logs=/var/log/grafana cfg:default.paths.data=/var/lib/grafana cfg:default.paths.plugins=/var/lib/grafana/plugins cfg:default.paths.provisioning=/etc/grafana/provisioning
root??????? 3563? 0.0? 0.1? 12344? 1192 pts/4??? R+?? 14:37?? 0:00 grep --color=auto grafana
[root@prometheus-server yum.repos.d]#
[root@prometheus-server yum.repos.d]# ss -anplut|grep grafana
tcp???? LISTEN?? 0??????? 128??????????????????? *:3000??????????????? *:*?????? users:(("grafana-server",pid=3553,fd=8))??????????????????????????????????????
[root@prometheus-server yum.repos.d]#
[root@prometheus-server yum.repos.d]# grafana-server -v
Version 8.1.2 (commit: 103f8fa094, branch: HEAD)
[root@prometheus-server yum.repos.d]#4.访问grafana
默认账号和密码都是admin
同时导入json格式的监控模板。
导入node-exporter-for-prometheus-dashboard-cn-v20201010_rev24.json模板到grafana,并访问
同时在以下网址中这个里面有很多的模板，可以去下载，但是也有些模板不匹配，导入出错
https://www.cnblogs.com/v-fan/p/14057366.html
https://grafana.com/grafana/dashboards
以上便是本次项目的具体实施步骤，如有疑问以及错误之处，希望大家通过私信反应，超超很期待与各位交流
?创作不易，客官点个赞，评论一下吧！超超和你一起加油?😜
