[系统运维]Prometheus 钉钉告警配置

1、Prometheus使用钉钉告警需要安装插件，本文以docker部署方式演示

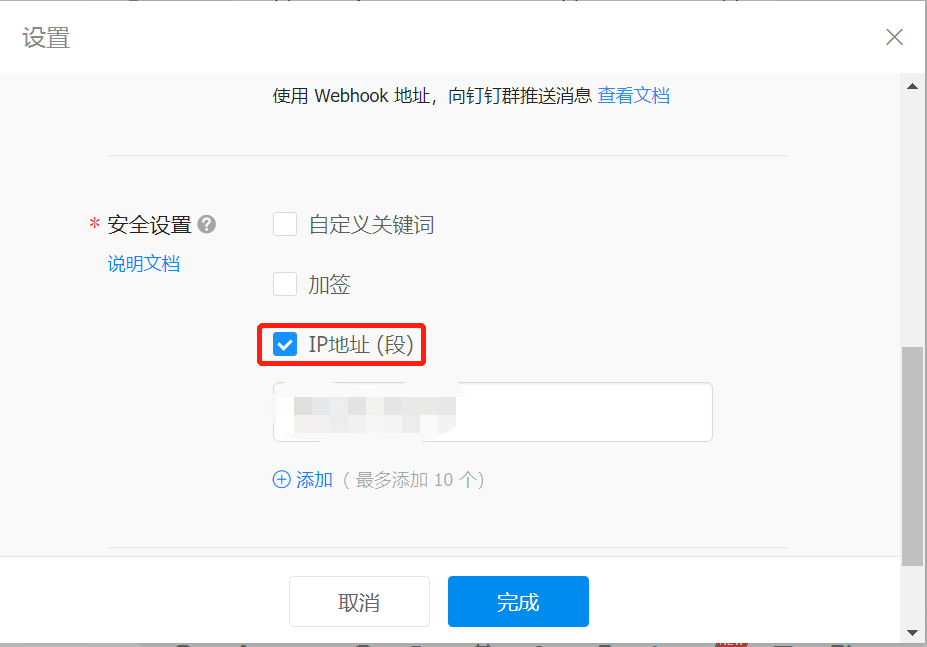

2、说明：本文使用钉钉安全设置中的放通ip段为例演示

3、docker启动钉钉告警插件

docker run -d --restart always -p 8060:8060 --name webhook-dingding -v /root/dingding.tmpl:/root/dingding.tmpl -v /etc/localtime:/etc/localtime timonwong/prometheus-webhook-dingtalk:v0.3.0 --template.file="/root/dingding.tmpl" --ding.profile="webhook1=https://oapi.dingtalk.com/robot/send?access_token=
自己的钉钉token"

--name webhook-dingding     # docker名称
-v /root/dingding.tmpl:/root/dingding.tmp     # 映射告警模板
-v /etc/localtime:/etc/localtime   # 修改时区
--template.file    # 指定模板路径
 --ding.profile  # 指定钉钉api链接

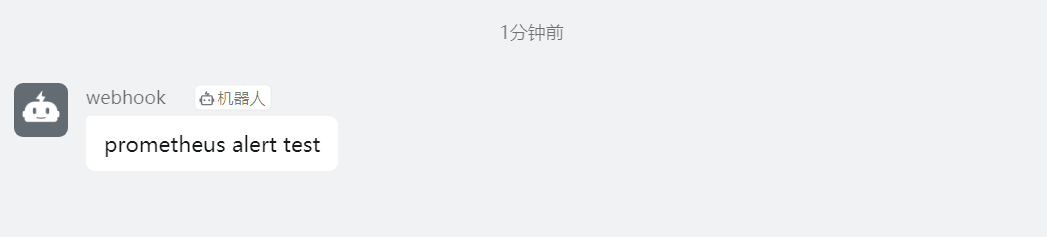

4、启动完成后可以使用如下命令进行测试钉钉是否正常

curl -H "Content-Type: application/json" -d '{"msgtype":"text","text":{"content":"prometheus alert test"}}' https://oapi.dingtalk.com/robot/send?access_token=b81384b8b0c751cbc8ff736e2c064fc1b68c63878128c4082663bf988a101b11

4.1、返回如下内容表示正常

{"errcode":0,"errmsg":"ok"}

5、自定义钉钉告警模板

[root@prometheus ~]# cat dingding.tmpl
{{ define "__subject" }}[{{ .Status | toUpper }}{{ if eq .Status "firing" }}:{{ .Alerts.Firing | len }}{{ end }}] {{ .GroupLabels.SortedPairs.Values | join " " }} {{ if gt (len .CommonLabels) (len .GroupLabels) }}({{ with .CommonLabels.Remove .GroupLabels.Names }}{{ .Values | join " " }}{{ end }}){{ end }}{{ end }}
{{ define "__alertmanagerURL" }}{{ .ExternalURL }}/#/alerts?receiver={{ .Receiver }}{{ end }}

{{ define "__text_alert_list" }}{{ range . }}
告警程序：prometheus_alert
告警级别：{{ .Labels.severity }}
告警类型：{{ .Labels.alertname }}
主机: {{ .Labels.instance }}
命名空间: {{ .Labels.namespace }}
Pod: {{ .Labels.pod }}
告警主题: {{ .Annotations.summary }}
告警描叙: {{ .Annotations.description }}
触发时间: {{ .StartsAt.Format "2006-01-02 15:04:05" }}
------------------------

{{ end }}{{ end }}

{{ define "__text_resolve_list" }}{{ range .  }}
恢复程序：{{ .Labels.alertname }}
主机: {{ .Labels.instance }}
恢复描叙: {{ .Annotations.description }}
触发时间: {{ .StartsAt.Format "2006-01-02 15:04:05" }}
------------------------
{{ end }}{{ end }}


{{ define "ding.link.title" }}{{ template "__subject" . }}{{ end }}
{{ define "ding.link.content" }}#### \[{{ .Status | toUpper }}{{ if eq .Status "firing" }}:{{ .Alerts.Firing | len }}{{ end }}\] **[{{ index .GroupLabels "alertname" }}]({{ template "__alertmanagerURL" . }})**
{{ if gt (len .Alerts.Firing) 0 -}}
![警报 图标](https://ss0.bdstatic.com/70cFuHSh_Q1YnxGkpoWK1HF6hhy/it/u=3626076420,1196179712&fm=15&gp=0.jpg)

**====侦测到故障====**

{{ template "__text_alert_list" .Alerts.Firing }}
{{- end }}
{{ if gt (len .Alerts.Resolved) 0 -}}
恢复列表:
{{ template "__text_resolve_list" .Alerts.Resolved }}
{{- end }}
{{- end }}

6、修改 alertmanager 配置文件

[root@prometheus alertmanager]# cat alertmanager.yml
global:
  resolve_timeout: 5m

route:
  group_by: ['alertname']
  group_wait: 30s
  group_interval: 1m
  repeat_interval: 2m
  receiver: 'web.hook'
receivers:
- name: 'web.hook'
  webhook_configs:
  - url: 'http://localhost:8060/dingtalk/webhook1/send'
    send_resolved: true     # 表示服务恢复后会收到恢复告警
inhibit_rules:
  - source_match:
      alertname: 'ApplicationDown'
      severity: 'critical'
    target_match:
      severity: 'warning'
    equal: ['alertname',"target","job","instance"]

6.1、重启 alertmanager 服务

[root@prometheus alertmanager]# systemctl restart alertmanager

7、修改 prometheus 配置

[root@k8s-node1 prometheus]# cat prometheus.yml
# my global config
global:
  scrape_interval:     15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
  # scrape_timeout is set to the global default (10s).

# Alertmanager configuration
alerting:
  alertmanagers:
  - static_configs:
    - targets:
       - 192.168.33.145:9093

# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
  - "rules/*.yml"        # 修改此处的配置即可。此处表示当前prometheus目录下的rules目录下的所有yml文件全部匹配
  # - "second_rules.yml"

# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: 'prometheus'

    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.

    static_configs:
    - targets: ['localhost:9090']

8、重新加载prometheus即可

[root@k8s-node1 prometheus]# kill -HUP 64254

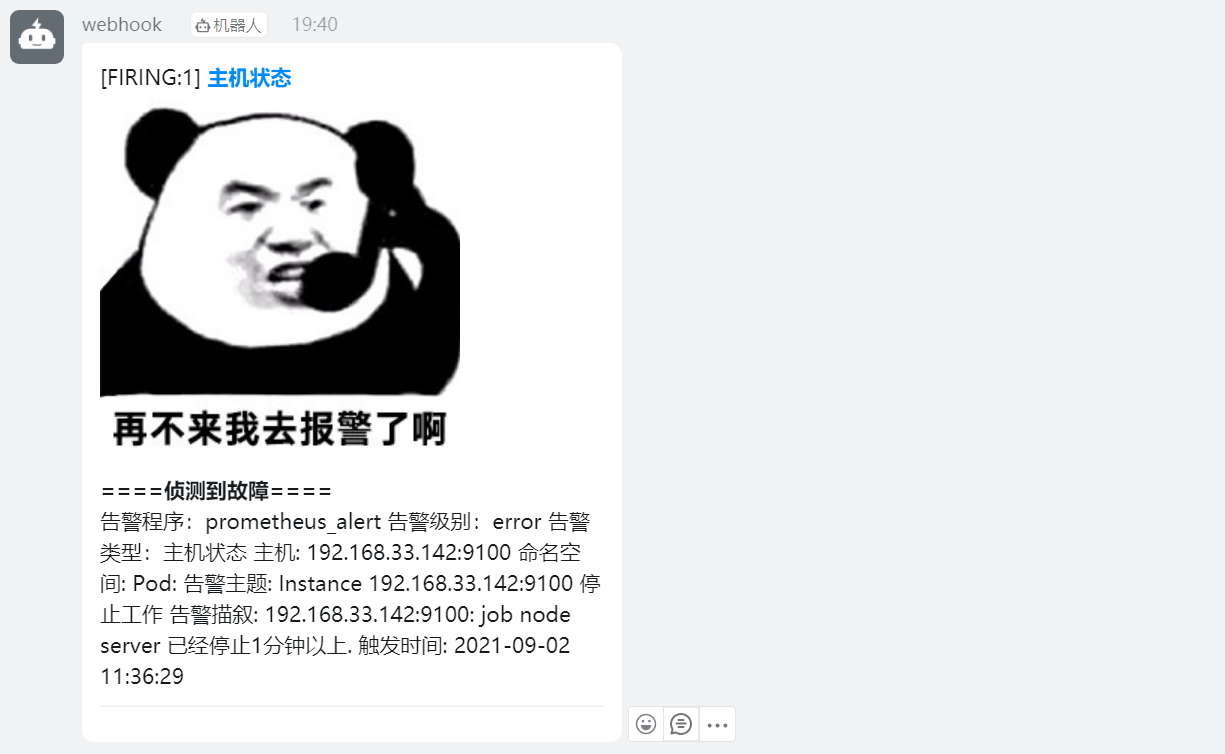

9、钉钉告警示例如下：

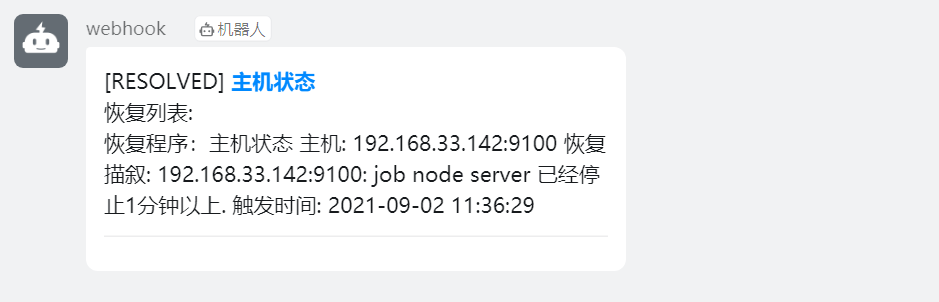

10、服务恢复告警示例如下：
