经过上个星期的摸索，发现了mrjob这个神器，网络上搜出来的教程都是最传统的一个map+一个reduce的Wordcount例子，具体实现参考【神经网络并行训练（上）】。
但是要实现梯度下降算法的并行化远不止这么简单，所以决定好好研究一下如何用其实现梯度下降算法并行化。
思考一：mrjob任务接受的参数只能是一个文件吗？
答案：No，mrjob任务可以接受一个或多个文件，甚至一个文件夹，在执行命令后面加n个文件就会处理n个文件。
example.通过一个简单的wordcount例子来验证一下mrjob任务接受多个文件的情况
代码如下：
#!/usr/bin/python
# -*- coding: utf-8 -*-
from mrjob.job import MRJob
class MRWordCount(MRJob):
def mapper(self, key, line):
for word in line.split():
yield(word, 1)
def reducer(self, word, counts):
yield(word, sum(counts))
if __name__ == '__main__':
count = 1
pairs = "hello\n" \
"map\n" \
"reduce\n" \
"reduce\n" \
"hello\n" \
"world\n" \
"map\n" \
"reduce\n" \
"map\n" \
"a\n" \
"map\n"
for i in range(3):
with open('/home/wuwenjing/Downloads/wordcounttest/test' + str(count) + '.txt', 'w') as f:
f.write("%s\n" % str(pairs))
count = count + 1
#先生成3个待处理文件
MRWordCount.run()
在命令行执行任务
root@ubuntu:/opt/PycharmProjects/Hadoop/WordCount# python3 wordcount.py -r hadoop /home/wuwenjing/Downloads/wordcounttest/test1.txt /home/wuwenjing/Downloads/wordcounttest/test2.txt /home/wuwenjing/Downloads/wordcounttest/test3.txt

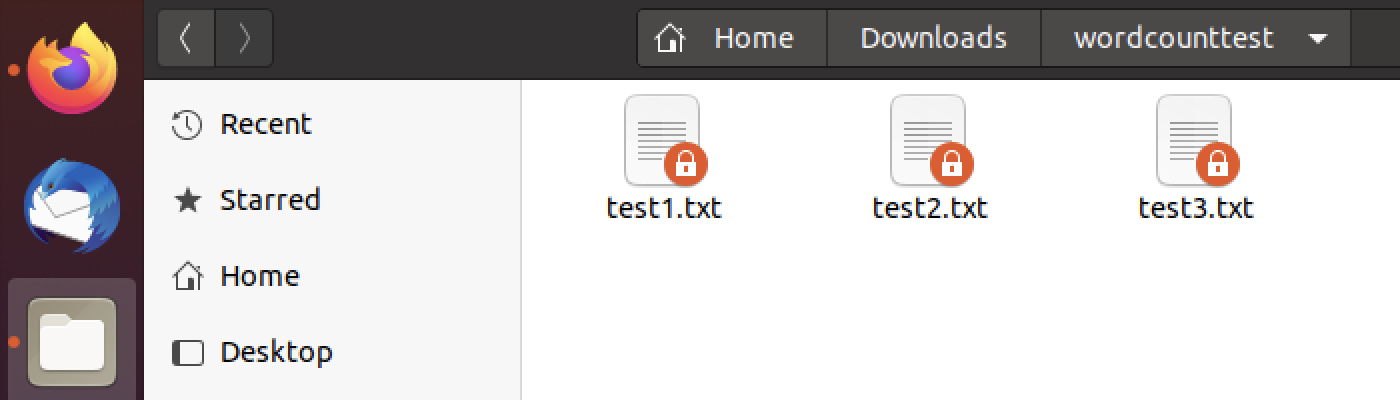

先生成3个.txt文件
运行结果，统计了3个文件中单词的数量
root@ubuntu:/opt/PycharmProjects/Hadoop/WordCount# python3 wordcount.py -r hadoop /home/wuwenjing/Downloads/wordcounttest/test1.txt /home/wuwenjing/Downloads/wordcounttest/test2.txt /home/wuwenjing/Downloads/wordcounttest/test3.txt
No configs found; falling back on auto-configuration
No configs specified for hadoop runner
Looking for hadoop binary in /hadoop/hadoop-2.9.2/bin...
Found hadoop binary: /hadoop/hadoop-2.9.2/bin/hadoop
Using Hadoop version 2.9.2
Looking for Hadoop streaming jar in /hadoop/hadoop-2.9.2...
Found Hadoop streaming jar: /hadoop/hadoop-2.9.2/share/hadoop/tools/lib/hadoop-streaming-2.9.2.jar
Creating temp directory /tmp/wordcount.wuwenjing.20210906.024254.744498
uploading working dir files to hdfs:///user/wuwenjing/tmp/mrjob/wordcount.wuwenjing.20210906.024254.744498/files/wd...
Copying other local files to hdfs:///user/wuwenjing/tmp/mrjob/wordcount.wuwenjing.20210906.024254.744498/files/
Running step 1 of 1...
packageJobJar: [/tmp/hadoop-unjar1871937796876565674/] [] /tmp/streamjob5389097803650413669.jar tmpDir=null
Connecting to ResourceManager at /0.0.0.0:8032
Connecting to ResourceManager at /0.0.0.0:8032
Total input files to process : 3
number of splits:3
yarn.resourcemanager.system-metrics-publisher.enabled is deprecated. Instead, use yarn.system-metrics-publisher.enabled
Submitting tokens for job: job_1630895970017_0001
Submitted application application_1630895970017_0001
The url to track the job: http://ubuntu:8088/proxy/application_1630895970017_0001/
Running job: job_1630895970017_0001
Job job_1630895970017_0001 running in uber mode : false
map 0% reduce 0%
map 67% reduce 0%
map 100% reduce 0%
map 100% reduce 100%
Job job_1630895970017_0001 completed successfully
Output directory: hdfs:///user/wuwenjing/tmp/mrjob/wordcount.wuwenjing.20210906.024254.744498/output
Counters: 49
File Input Format Counters
Bytes Read=174
File Output Format Counters
Bytes Written=46
File System Counters
FILE: Number of bytes read=375
FILE: Number of bytes written=812987
FILE: Number of large read operations=0
FILE: Number of read operations=0
FILE: Number of write operations=0
HDFS: Number of bytes read=645
HDFS: Number of bytes written=46
HDFS: Number of large read operations=0
HDFS: Number of read operations=12
HDFS: Number of write operations=2
Job Counters
Data-local map tasks=3
Launched map tasks=3
Launched reduce tasks=1
Total megabyte-milliseconds taken by all map tasks=29351936
Total megabyte-milliseconds taken by all reduce tasks=5346304
Total time spent by all map tasks (ms)=28664
Total time spent by all maps in occupied slots (ms)=229312
Total time spent by all reduce tasks (ms)=5221
Total time spent by all reduces in occupied slots (ms)=41768
Total vcore-milliseconds taken by all map tasks=28664
Total vcore-milliseconds taken by all reduce tasks=5221
Map-Reduce Framework
CPU time spent (ms)=2820
Combine input records=0
Combine output records=0
Failed Shuffles=0
GC time elapsed (ms)=456
Input split bytes=471
Map input records=36
Map output bytes=303
Map output materialized bytes=387
Map output records=33
Merged Map outputs=3
Physical memory (bytes) snapshot=1008001024
Reduce input groups=5
Reduce input records=33
Reduce output records=5
Reduce shuffle bytes=387
Shuffled Maps =3
Spilled Records=66
Total committed heap usage (bytes)=694157312
Virtual memory (bytes) snapshot=7783809024
Shuffle Errors
BAD_ID=0
CONNECTION=0
IO_ERROR=0
WRONG_LENGTH=0
WRONG_MAP=0
WRONG_REDUCE=0
job output is in hdfs:///user/wuwenjing/tmp/mrjob/wordcount.wuwenjing.20210906.024254.744498/output
Streaming final output from hdfs:///user/wuwenjing/tmp/mrjob/wordcount.wuwenjing.20210906.024254.744498/output...
"a" 3
"hello" 6
"map" 12
"reduce" 9
"world" 3
Removing HDFS temp directory hdfs:///user/wuwenjing/tmp/mrjob/wordcount.wuwenjing.20210906.024254.744498...
Removing temp directory /tmp/wordcount.wuwenjing.20210906.024254.744498...
思考二：mrjob任务是否必须是mapper+reducer的形式？
答案：No，任何包含一个mrjob任务的类都可以通过class.run()的形式去执行任务
并行梯度下降算法的main.py文件如下
from collections import defaultdict
import argparse
import glob
import importlib
import imp
import multiprocessing
import numpy as np
import os
import random
import resource
import sys
from mrjob.job import MRJob
import itertools
try:
import simplejson as json
except:
import json
import logging
logger = logging.getLogger(__name__)
logging.basicConfig(level=logging.DEBUG)
def chunks(iterable, size=10):
iterator = iter(iterable)
for first in iterator:
yield list(itertools.chain([first], itertools.islice(iterator, size - 1)))
def isolated_batch_call(f, arguments):
'''在单独的进程中调用函数 f 并返回结果列表'''
def lf(q):
ret = f(*arguments)
q.put(list(ret))
'''Queue 用来在多个进程间通信。Queue 有两个方法，get 和 put
put：放数据，Queue.put( )默认有block=True和timeout两个参数。当block=True时，写入是阻塞式的，阻塞时间由timeout确定。
get：取数据(默认阻塞),Queue.get([block[, timeout]])获取队列，timeout等待时间
'''
q = multiprocessing.Queue() #创建父进程q
p = multiprocessing.Process(target=lf, args=(q,)) #将父进程传给子进程
p.start() #启动子进程p，执行def lf(q)，把mapper(k,v)返回的数据存在list(ret)里
ret = q.get() #变量ret通过q.get方法获得list(ret)
p.join() #等待p结束
return ret #ret是一个list
def mapreduce(input, MRSGD ,batch_size=50):
# 设置初始随机种子
random.seed(0)
# 运行 mappers
d = defaultdict(list)
for pairs_generator in chunks(input, batch_size):
pairs = list(pairs_generator)
k, v = None, [x[1] for x in pairs]
for k2, v2 in isolated_batch_call(MRSGD.mapper, (k, v)):
if not isinstance(k2, (str, int, float)): #k2是元组(str,int,list)中的一个返回 True，如果k2不是其中一种，则报错
raise Exception("Keys must be strings, ints or floats (provided '%s')!" % k2)
d[k2].append(v2)
# 键和值的随机排列
keys = d.keys()
random.shuffle(keys)
for k in keys:
random.shuffle(d[k])
# 运行 reducers
res = []
if len(keys) > 1:
raise Exception("Only one distinct key expected from mappers.")
k = list(keys)[0] # k为0
v = d[k] # v包含16个w值数组
r = isolated_batch_call(MRSGD.reducer, (k, v))
logger.info("Finished reducing phase!")
return r
def yield_pattern(path):
for i in glob.iglob(path):
if os.path.isfile(i):
with open(i, "r") as fin:
for line in fin:
yield None, line #按行返回
def import_from_file(f):
mod = imp.new_module("mod")
mod.__file__ = "mod"
mod.__package__ = ''
code = compile(f,'','exec')
exec(code, mod.__dict__)
return mod
def evaluate(weights, test_data, transform):
logger.info("Evaluating the solution")
accuracy, total = 0, 0
instances = transform(test_data[:, 1:])
labels = test_data[:, 0].ravel()
if not instances.shape[1] == weights.shape[1]:
logging.error("Shapes of weight vector and transformed "
"data don't match")
logging.error("%s %s", instances.shape, weights.shape)
sys.exit(-3)
for features, label in zip(instances, labels):
if label * np.inner(weights, features) > 0:
accuracy += 1
total += 1
return float(accuracy) / total
class MRSGD(MRJob):
def run(input_pattern):
batch = 5000
source_file = "/opt/PycharmProjects/Hadoop/MRjobSGD/mrjobsgd.py"
with open(source_file, "r") as fin:
source = fin.read() # 读取source_file文件
mod = import_from_file(source) #将source文件转化为一个名为'mod'的模型，从而可以调用里面的方法和函数
input = yield_pattern(input_pattern)
output = mapreduce(input, mod.MRSGD, batch)
weights = np.array(output)
if weights.shape[0] > 1:
logging.error("Incorrect format from reducer")
sys.exit(-2)
test_data = np.loadtxt(test_file, delimiter=" ")
return evaluate(weights, test_data, mod.transform)
if __name__ == "__main__":
MRSGD.run()
并行梯度下降算法的mrsgd.py文件如下
import numpy as np
from mrjob.job import MRJob
# constants
# m is the dimension of the transformed feature vector # m 是变换后的特征向量的维度
m = 3000
# number of iterations of PEGASOS #PEGASOS 的迭代次数
iterations = 300000
# regularization constant #正则化常数
lambda_val = 1e-6
# standard deviation of p in RFF #RFF 中 p 的标准偏差
sigma = 10
# transforms X into m-dimensional feature vectors using RFF and RBF kernel 使用 RFF 和 RBF 核将 X 转换为 m 维特征向量
# Make sure this function works for both 1D and 2D NumPy arrays. 确保此函数适用于 1D 和 2D NumPy 数组。
def transform(X):
np.random.seed(0)
b = np.random.rand(m) * 2 * np.pi
if X.ndim == 1:
w = np.random.multivariate_normal(np.zeros(X.size), sigma**2 * np.identity(X.size), m)
else:
w = np.random.multivariate_normal(np.zeros(X.shape[1]), sigma**2 * np.identity(X.shape[1]), m)
transformed = (2.0 / m)**0.5 * np.cos(np.dot(X, np.transpose(w)) + b)
# feature normalization 特征归一化
transformed = (transformed - np.mean(transformed, 0)) / np.std(transformed, 0)
return transformed
class MRSGD(MRJob):
# key: None
# value: one line of input file
def mapper(key, value): #传进来的value是一个5000*401的列表
# 2D NumPy array containing the original feature vectors 包含原始特征向量的 2维 NumPy 数组（训练数据）
features = np.zeros([len(value), len(value[0].split()) - 1]) #features.shape=(5000，400)
# 1D NumPy array containing the classifications of the training data 包含训练数据分类的一维 NumPy 数组(标签t)
classifications = np.zeros(len(value)) #classifications.shape=(5000，)
# populate features and classifications 填充特征和分类
for i in range(len(value)):
tokens = value[i].split() #tokens是一个1*400的矩阵，共循环5000次
classifications[i] = tokens[0] #5000个标签[-1,-1,+1,……]
features[i] = tokens[1:]
# project features into higher dimensional space 将特征投影到更高维空间
features = transform(features)
# PEGASOS
w = np.zeros(m) # w.shape=(3000,)
for i in range(1, iterations): #iterations = 300000 迭代300000次
w = update_weights(w, features, classifications, i)
yield 0, w
def reducer(key, values):
cumulative_weights = np.zeros(m)
for w in values:
cumulative_weights += w # 求16个w值数组的和
# yield the average of the weights
yield cumulative_weights / len(values) # 求16个w值数组的均值 sum/16
# weight vector update of PEGASOS
def update_weights(w, features, classifications, t):
i = int(np.random.uniform(0, features.shape[0]))
learning_rate = 1 / (lambda_val * t) #lambda_val = 1e-6 正则化常数
new_w = (1 - learning_rate * lambda_val) * w + learning_rate * hinge_loss_gradient(w, features[i], classifications[i])
# optional projection step 可选的投影步骤
#new_w = min(1, ((1 / lambda_val**0.5) / np.linalg.norm(new_w))) * new_w
return new_w
# calculate the gradient of the hinge loss function 计算铰链损失函数的梯度
def hinge_loss_gradient(w, x, y):
if np.dot(w, x) * y >= 1:
return 0
else:
return y * x
