Kubernetes 运维 - 高可用集群方案
一、概述
Keepalived 用于提供 kube-apiserver 对外服务的 VIP 地址
Haproxy 用于监听 VIP 地址，后端连接所有 kube-apiserver 实例，提供监控检查和负载均衡功能
keepalived在运行过程中对本机的haproxy进行状态进行周期性检查，如果检测到haproxy进程异常，则触发重新选主的过程，VIP也将漂移到新选出来的节点上，从而实现VIP的高可用
二、搭建负载均衡高可用
| 节点名 | IP地址 | 使用端口 | K8S版本 |
|---|---|---|---|
| master-01 | 192.168.0.10 | HA(8443) | 1.18.2 |
| master-02 | 192.168.0.20 | HA(8443) | 1.18.2 |
| master-03 | 192.168.0.30 | HA(8443) | 1.18.2 |
1.1 基础环境
1.1.1 配置Hosts文件
192.168.0.10 master-01
192.168.0.20 master-02
192.168.0.30 master-03
1.1.2 配置互信(可选)
ssh-keygen -t rsa
ssh-copy-id 节点名
1.1.3 系统优化
① 关闭防火墙&selinux&swap分区&iptables
systemctl stop firewalld && systemctl disable firewalld
swapoff -a && sed -i '/ swap / s/^\(.*\)$/#\1/g' /etc/fstab
setenforce 0 && sed -i 's/^SELINUX=.*/SELINUX=disabled/' /etc/selinux/config
yum -y install iptables-services
systemctl start iptables && systemctl enable iptables
iptables -F && service iptables save
② 优化内核参数
cat <<EOF > /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF
sysctl --system
cat <<EOF > /etc/sysctl.conf
fs.aio-max-nr=1065535
kernel.pid_max=600000
net.ipv4.tcp_max_syn_backlog=30000
net.core.somaxconn=65535
net.ipv4.tcp_tw_reuse=1
net.ipv4.tcp_timestamps=1
net.ipv4.ip_local_reserved_ports=30000-32767
net.ipv4.ip_local_port_range=30000 65000
net.core.netdev_max_backlog=300000
net.ipv4.tcp_rmem=4096 87380 134217728
net.ipv4.tcp_wmem=4096 87380 134217728
net.ipv4.tcp_sack=0
net.ipv4.tcp_fin_timeout=20
fs.inotify.max_user_watches=102400
EOF
sysctl -p
modprobe br_netfilter
sysctl -p /etc/sysctl.d/k8s.conf
③ 配置时间同步
yum install -y chrony
systemctl enable --now chronyd
timedatectl set-timezone Asia/Shanghai
timedatectl set-local-rtc 0
④ kube-proxy开启ipvs的前置
yum install ipset ipvsadm -y
cat > /etc/sysconfig/modules/ipvs.modules <<EOF
#!/bin/bash
modprobe -- ip_vs
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- ip_vs_sh
modprobe -- nf_conntrack_ipv4
EOF
chmod 755 /etc/sysconfig/modules/ipvs.modules && bash /etc/sysconfig/modules/ipvs.modules && lsmod | grep -e ip_vs -e nf_conntrack_ipv4
1.1.4 安装Docker
本章中部署的K8S版本为1.18.2，需要安装Docker版本为18.09.1
1.1.5 安装Kubernetes
① 配置阿里源
cat > /etc/yum.repos.d/kubernetes.repo << EOF
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF
② 安装kubelet
yum install -y kubelet-1.18.2 kubeadm-1.18.2 kubectl-1.18.2
rpm -qa | grep kube
systemctl enable kubelet
1.2 安装Haproxy
1.2.1 通过yum安装haproxy
yum -y install haproxy
1.2.2 配置文件
vim /etc/haproxy/haproxy.cfg
global
log /dev/log local0
log /dev/log local1 notice
chroot /var/lib/haproxy
stats socket /var/run/haproxy-admin.sock mode 660 level admin
stats timeout 30s
user haproxy
group haproxy
daemon
nbproc 1
defaults
log global
timeout connect 5000
timeout client 10m
timeout server 10m
listen admin_stats
bind 0.0.0.0:10080
mode http
log 127.0.0.1 local0 err
stats refresh 30s
stats uri /status
stats realm welcome login\ Haproxy
stats auth admin:123456
stats hide-version
stats admin if TRUE
listen kube-master
bind 0.0.0.0:8443
mode tcp
option tcplog
balance source
server 192.168.0.10 192.168.0.10:6443 check inter 2000 fall 2 rise 2 weight 1
server 192.168.0.20 192.168.0.20:6443 check inter 2000 fall 2 rise 2 weight 1
server 192.168.0.30 192.168.0.30:6443 check inter 2000 fall 2 rise 2 weight 1
1.2.3 启动并设置开机自启
systemctl enable haproxy && systemctl restart haproxy
netstat -lnpt|grep haproxy
1.3 部署Keepalived
1.3.1 通过yum安装keepalived
yum -y install keepalived
1.3.2 配置文件
vim /etc/keepalived/keepalived.conf
① Master-01
global_defs {
router_id master-01
}
vrrp_script check-haproxy {
#检查所在节点的 haproxy 进程是否正常。如果异常则将权重减少3
script "killall -0 haproxy"
interval 5
weight -3
}
vrrp_instance VI_1 {
state MASTER
#VIP所在接口
interface ens33
dont_track_primary
#VIP末段
virtual_router_id 100
priority 100
advert_int 3
track_script {
check-haproxy
}
virtual_ipaddress {
192.168.0.100/24
}
}
② Master-02
global_defs {
router_id master-01
}
vrrp_script check-haproxy {
script "killall -0 haproxy"
interval 5
weight -3
}
vrrp_instance VI_1 {
state BACKUP
interface ens33
virtual_router_id 100
dont_track_primary
priority 99
advert_int 3
track_script {
check-haproxy
}
virtual_ipaddress {
192.168.0.100/24
}
}
③ Master-03
global_defs {
router_id master-01
}
vrrp_script check-haproxy {
script "killall -0 haproxy"
interval 5
weight -3
}
vrrp_instance VI_1 {
state BACKUP
interface ens33
virtual_router_id 100
dont_track_primary
priority 98
advert_int 3
track_script {
check-haproxy
}
virtual_ipaddress {
192.168.0.100/24
}
}
1.3.3 启动并设置开机自启
systemctl start keepalived && systemctl enable keepalived

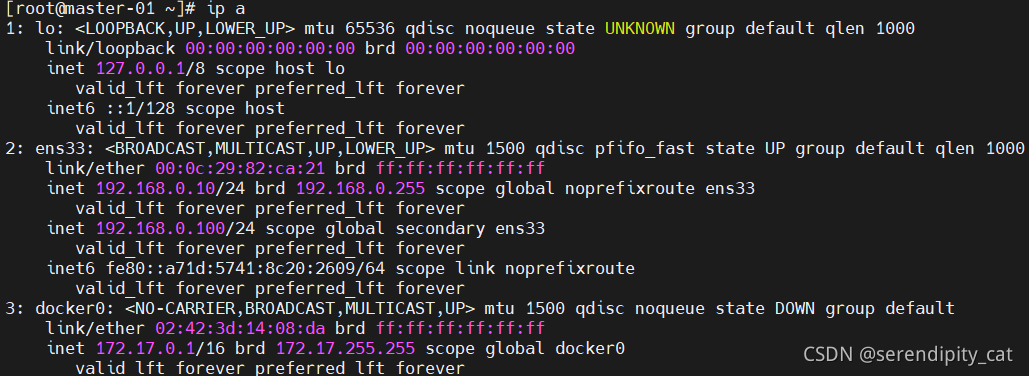

ip a
1.4 初始化集群
1.4.1 创建kubeadm-config文件
mkdir k8s
cd k8s
cat > kubeadm-config.yaml << EOF
apiVersion: kubeadm.k8s.io/v1beta2
kind: ClusterConfiguration
kubernetesVersion: v1.18.2
apiServer:
certSANs:
- 192.168.0.10 #Master-01
- 192.168.0.20 #Master-02
- 192.168.0.30 #Master-03
- 192.168.0.100 #VIP
controlPlaneEndpoint: "192.168.0.100:6443"
imageRepository: registry.aliyuncs.com/google_containers
networking:
podSubnet: "10.244.0.0/16"
serviceSubnet: 10.1.0.0/16
---
apiVersion: kubeproxy.config.k8s.io/v1alpha1
kind: KubeProxyConfiguration
featureGates:
SupportIPVSProxyMode: true
mode: ipvs
EOF

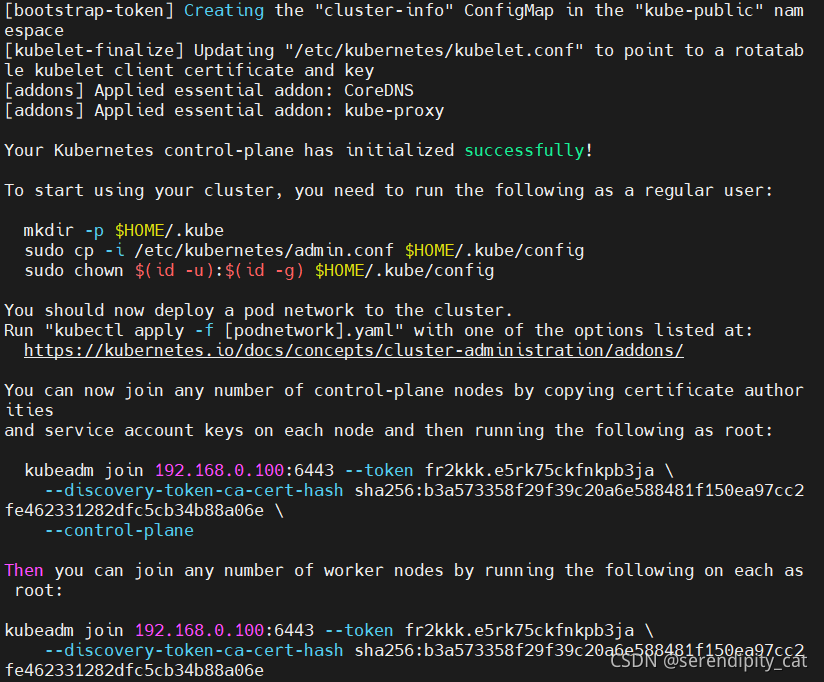

kubeadm init --config=kubeadm-config.yaml
1.4.2 创建目录
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

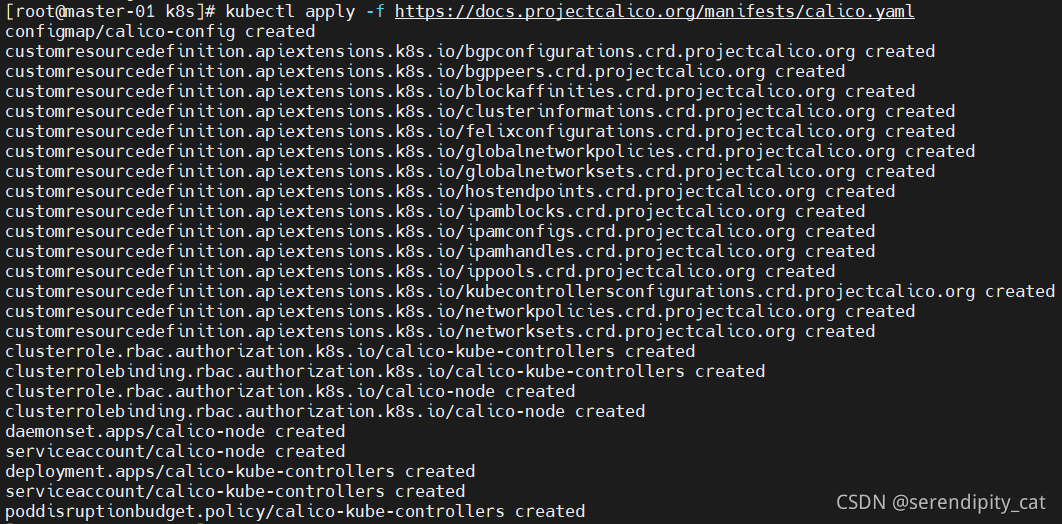

1.4.3 安装calico网络
kubectl apply -f https://docs.projectcalico.org/manifests/calico.yaml
1.4.4 上传证书
先在集群的另外两个Master上创建目录
mkdir -p /etc/kubernetes/pki/etcd
在Master-01创建拷贝脚本
echo 'USER=root
CONTROL_PLANE_IPS="192.168.0.20 192.168.0.30"
for host in ${CONTROL_PLANE_IPS}; do
scp /etc/kubernetes/pki/ca.crt "${USER}"@$host:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/ca.key "${USER}"@$host:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/sa.key "${USER}"@$host:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/sa.pub "${USER}"@$host:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/front-proxy-ca.crt "${USER}"@$host:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/front-proxy-ca.key "${USER}"@$host:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/etcd/ca.crt "${USER}"@$host:/etc/kubernetes/pki/etcd/
scp /etc/kubernetes/pki/etcd/ca.key "${USER}"@$host:/etc/kubernetes/pki/etcd/
done' > ca.sh

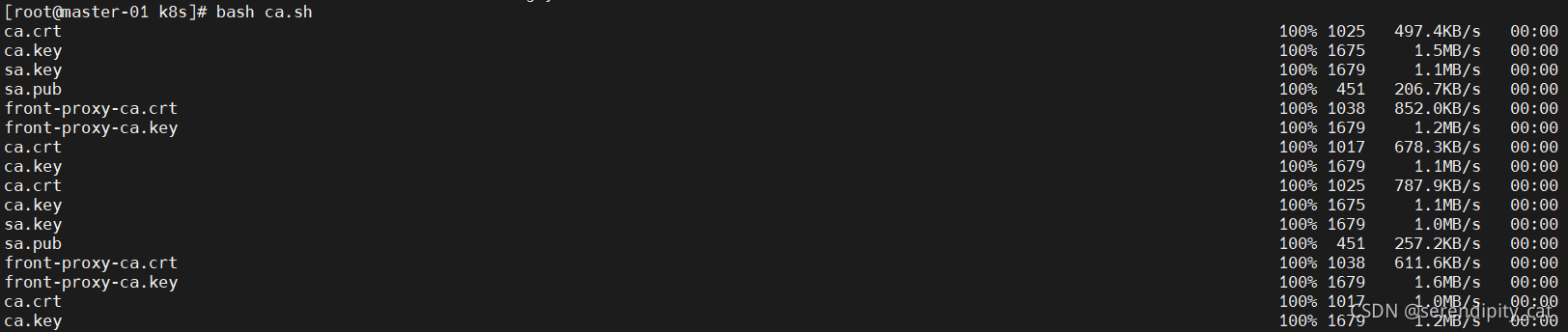

bash ca.sh
1.4.5 将其他Master加入到集群
kubeadm join 192.168.0.100:6443 --token edb58d.82zbfmb419vfwfg2 \
--discovery-token-ca-cert-hash sha256:b3a573358f29f39c20a6e588481f150ea97cc2fe462331282dfc5cb34b88a06e \
--control-plane
1.4.6 查看集群状态

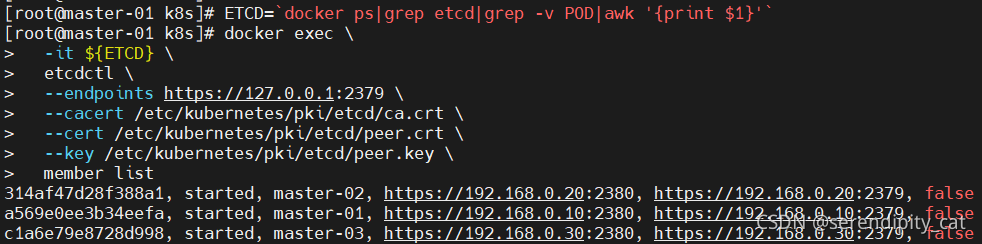

① 检查etcd集群健康状态
ETCD=`docker ps|grep etcd|grep -v POD|awk '{print $1}'`
docker exec \
-it ${ETCD} \
etcdctl \
--endpoints https://127.0.0.1:2379 \
--cacert /etc/kubernetes/pki/etcd/ca.crt \
--cert /etc/kubernetes/pki/etcd/peer.crt \
--key /etc/kubernetes/pki/etcd/peer.key \
member list

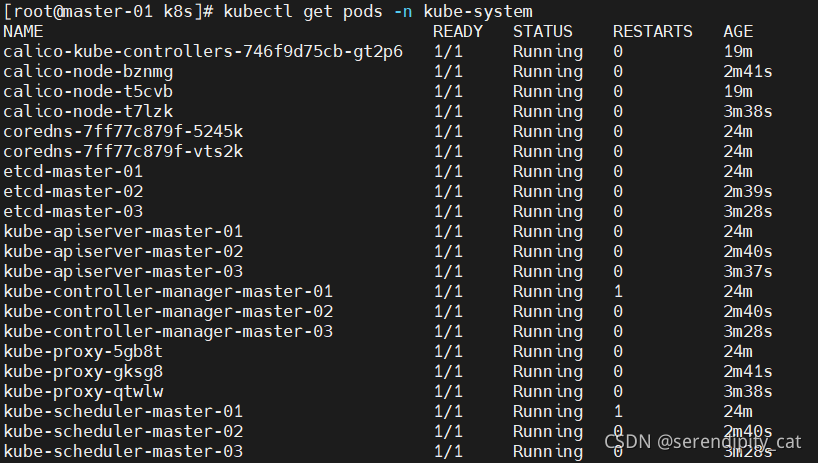

② 检查组件
kubectl get pods -n kube-system
1.4.7 设置污点
使Master参与POD资源负载
kubectl taint nodes master-02 node-role.kubernetes.io/master-
kubectl taint nodes master-03 node-role.kubernetes.io/master-
1.5 测试

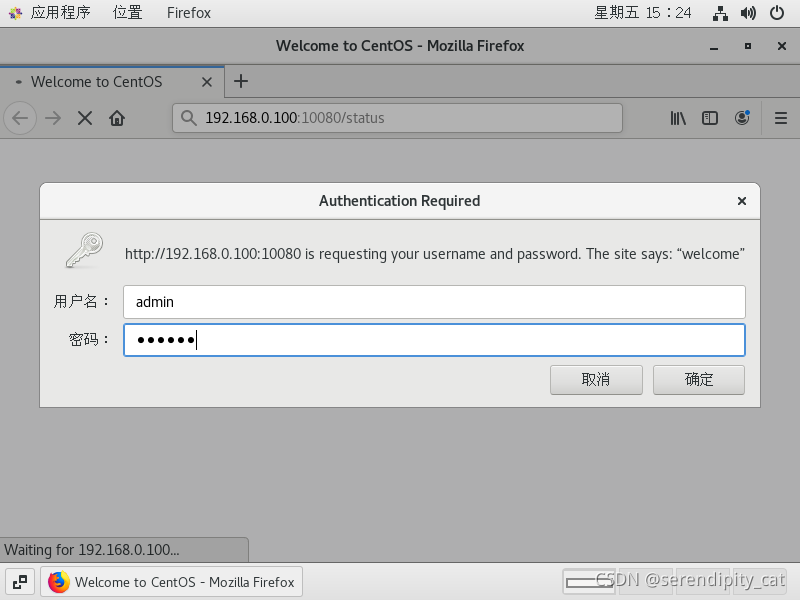

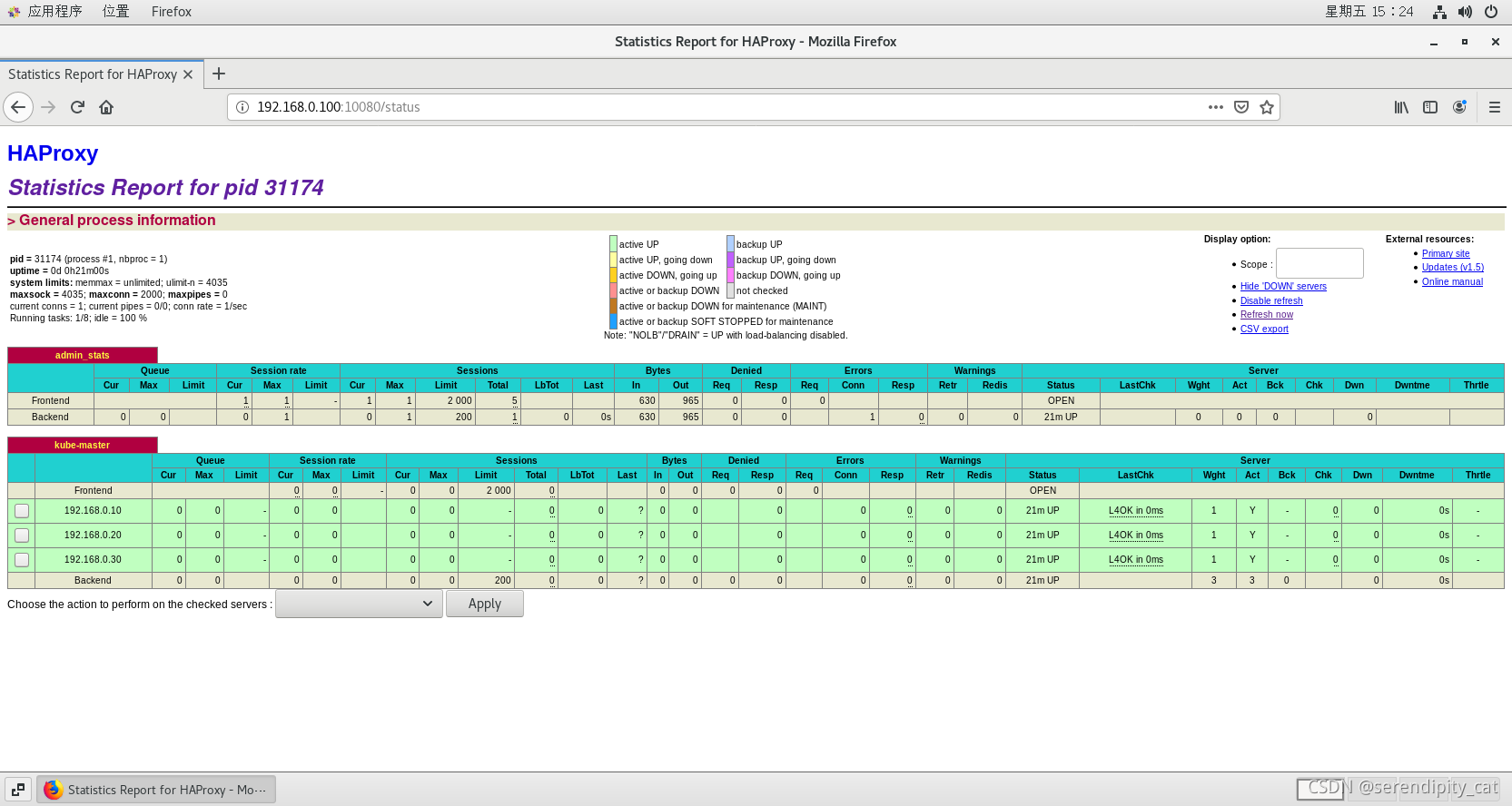

1.5.1 打开haproxy状态页面
账号：admin 密码：123456 [在/etc/haproxy/haproxy.cfg中修改]
#Master-VIP
192.168.0.100:10080/status
