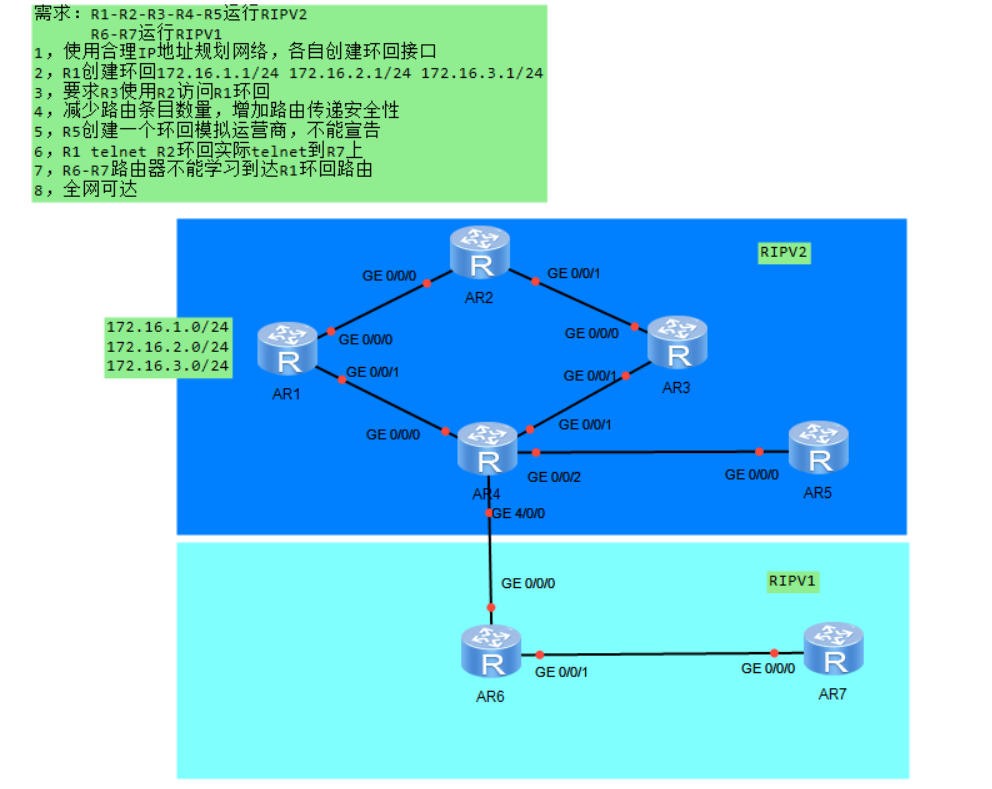

[系统运维]RIP综合实验

对R1

[r1]int l0
[r1-LoopBack0]ip add 1.1.1.1 24

[r1-LoopBack0]int l1
[r1-LoopBack1]ip add 172.16.1.1 24

[r1-LoopBack1]int l2
[r1-LoopBack2]ip add 172.16.2.1 24

[r1-LoopBack2]int l3
[r1-LoopBack3]ip add 172.16.3.1 24

[r1-LoopBack3]int g 0/0/0
[r1-GigabitEthernet0/0/0]ip add 12.0.0.1 24

[r1-GigabitEthernet0/0/0]int g 0/0/1
[r1-GigabitEthernet0/0/1]ip add 14.0.0.1 24

?对R2

[r2]int l0
[r2-LoopBack0]ip add 2.2.2.2 24

[r2-LoopBack0]int g 0/0/0
[r2-GigabitEthernet0/0/0]ip add 12.0.0.2 24

[r2-GigabitEthernet0/0/0]int g 0/0/1
[r2-GigabitEthernet0/0/1]ip add 23.0.0.1 24

对R3

[r3]int l0
[r3-LoopBack0]ip add 3.3.3.3 24

[r3-LoopBack0]int g 0/0/0
[r3-GigabitEthernet0/0/0]ip add 23.0.0.2 24?

[r3-GigabitEthernet0/0/0]int g 0/0/1
[r3-GigabitEthernet0/0/1]ip add 34.0.0.2 24

对R4

[r4]int l0
[r4-LoopBack0]ip add 4.4.4.4 24

[r4-LoopBack0]int g 0/0/0
[r4-GigabitEthernet0/0/0]ip add 14.0.0.2 24

[r4-GigabitEthernet0/0/0]int g 0/0/1
[r4-GigabitEthernet0/0/1]ip add 34.0.0.1 24

[r4-GigabitEthernet0/0/1]int g 0/0/2
[r4-GigabitEthernet0/0/2]ip add 45.0.0.1 24

[r4-GigabitEthernet0/0/2]int g 4/0/0
[r4-GigabitEthernet4/0/0]ip add 46.0.0.1 24

对R5

[r5]int l0
[r5-LoopBack0]ip add 5.5.5.5 24
[r5-LoopBack0]int g 0/0/0
[r5-GigabitEthernet0/0/0]ip add 45.0.0.2 24

对R6

[r6]int l0
[r6-LoopBack0]ip add 6.6.6.6 24

[r6-LoopBack0]int g 0/0/0
[r6-GigabitEthernet0/0/0]ip add 46.0.0.2 24

[r6-GigabitEthernet0/0/0]int g 0/0/1
[r6-GigabitEthernet0/0/1]ip add 67.0.0.1 24

对R7

[r7]int l0
[r7-LoopBack0]ip add 7.7.7.7 24
[r7-LoopBack0]int g 0/0/0
[r7-GigabitEthernet0/0/0]ip add 67.0.0.2 24

宣告

对R1宣告

[r1]rip

[r1-rip-1]version 2

[r1-rip-1]network 1.0.0.0

[r1-rip-1]network 172.16.0.0

[r1-rip-1]network 12.0.0.0

[r1-rip-1]network 14.0.0.0

对R2宣告

[r2]rip

[r2-rip-1]version 2

[r2-rip-1]network 2.0.0.0

[r2-rip-1]network 12.0.0.0

[r2-rip-1]network 23.0.0.0

对R3宣告

[r3]rip

[r3-rip-1]version 2

[r3-rip-1]network 3.0.0.0

[r3-rip-1]network 23.0.0.0

[r3-rip-1]network 34.0.0.0

对R4宣告

[r4]rip

[r4-rip-1]version 2

[r4-rip-1]network 34.0.0.0

[r4-rip-1]network 14.0.0.0

[r4-rip-1]network 45.0.0.0

[r4-rip-1]network 46.0.0.0

[r4-rip-1]network 4.0.0.0

对R5宣告

[r5]rip

[r5-rip-1]version 2

[r5-rip-1]network 45.0.0.0

[r5-rip-1]network 5.0.0.0

对R6宣告

[r6]rip

[r6-rip-1]version 1

[r6-rip-1]network 6.0.0.0

[r6-rip-1]network 46.0.0.0

[r6-rip-1]network 67.0.0.0

对R7宣告

[r7]rip

[r7-rip-1]version 1

[r7-rip-1]network 7.0.0.0

[r7-rip-1]network 67.0.0.0

R1环回汇总

[r1]int g 0/0/0
[r1-GigabitEthernet0/0/0]rip summary-address 172.16.0.0 255.255.252.0

[r1-GigabitEthernet0/0/0]int g 0/0/1
[r1-GigabitEthernet0/0/1]rip summary-address 172.16.0.0 255.255.252.0

R3接口设置ACL和COST值

[r3]acl 2000

[r3-acl-basic-2000]rule permit source 172.16.0.0 0

[r3-acl-basic-2000]rule permit source 1.1.1.0 0

[r3-acl-basic-2000]int g 0/0/1

[r3-GigabitEthernet0/0/1]rip metricin 2000 10

加密认证

[r1]int g 0/0/0

[r1-GigabitEthernet0/0/0]rip authentication-mode md5 usual cipher 123456


[r2]int g 0/0/0

[r2-GigabitEthernet0/0/0]rip authentication-mode md5 usual cipher 123456

R5创建环回，充当ISP，不能宣告

[r5]int l1
[r5-LoopBack1]ip add 10.0.0.1 24

R4配置缺省路由

[r4]ip route-static 0.0.0.0 0 45.0.0.2

[r4]rip

[r4-rip-1]default-route originate

R6配置RIPV2

[r6]int g 0/0/0

[r6-GigabitEthernet0/0/0]rip version 2

R7上创建用户并开启telnet服务

[r7]aaa

[r7-aaa]local-user bai privilege level 15 password cipher 123456

[r7-aaa]local-user bai service-type telnet

[r7]user-interface vty 0 4

[r7-ui-vty0-4]authentication-mode aaa

R2上设置nat

[r2]int g 0/0/0

[r2-GigabitEthernet0/0/0]nat server protocol tcp global interface loopback 0 23 inside 7.7.7.7 23

[r2]acl 2000

[r2-acl-basic-2000]rule permit source 7.0.0.0 0

[r2-acl-basic-2000]int  g 0/0/0

[r2-GigabitEthernet0/0/0]rip metricin 2000 5

R4增大COST值

[r4]acl 2000

[r4-acl-basic-2000]rule permit source 12.0.0.0 0

[r4-acl-basic-2000]int g 0/0/0

[r4-GigabitEthernet0/0/0]rip metricin 2000 10

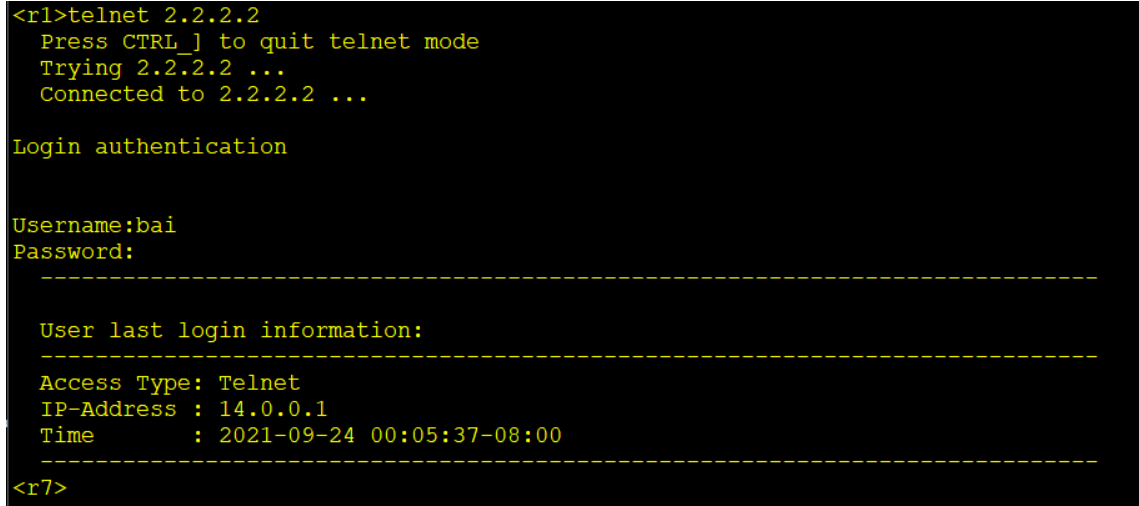

telnet R2 环回登录到R7

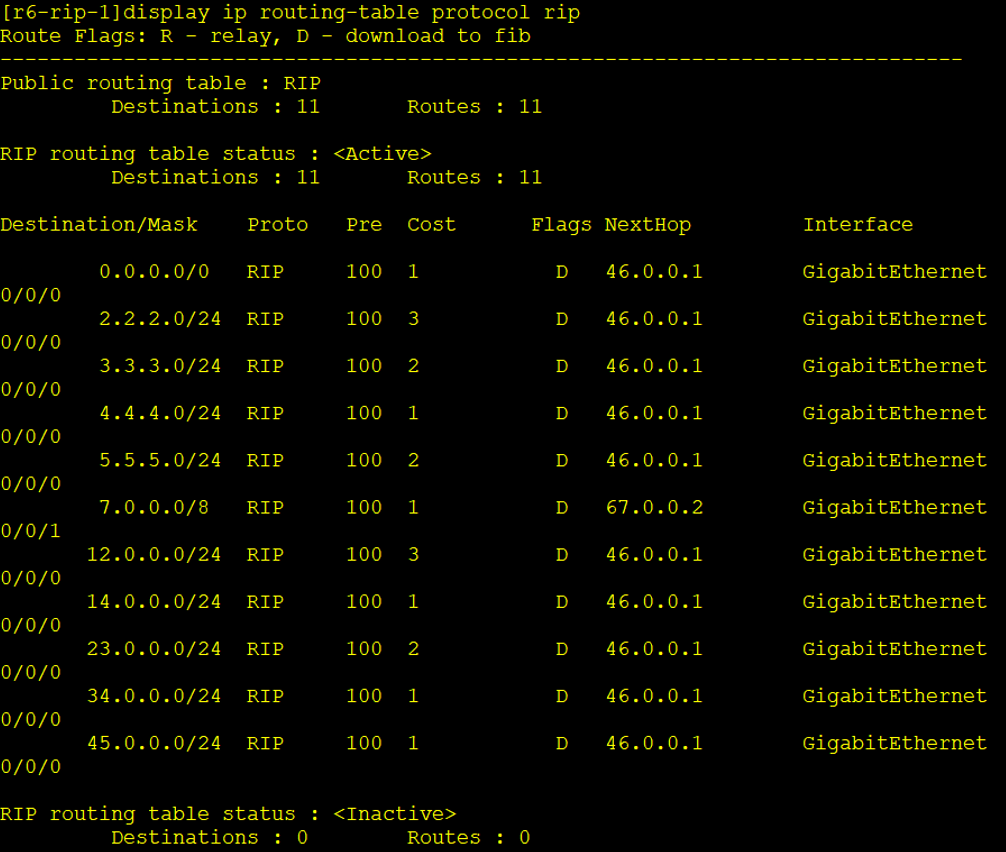

?R6-R7路由器不能学习到达R1环回路由

[r6]acl 2000

[r6-acl-basic-2000]rule deny source 1.1.1.0 0

[r6-acl-basic-2000]rule deny source 172.16.0.0 0.0.255.255

[r6-acl-basic-2000]rule permit source any

[r6-acl-basic-2000]rip

[r6-rip-1]filter-policy 2000 import

?

至此，这个实验就完成了
