Hyperledger Fabric1.2环境搭建（亲测）

本篇文章是博主亲测的能够成功搭建Hyperledger Fabric1.2.0环境的步骤，希望可以帮助有需要的小伙伴在短时间内少走弯路成功上岸。加油呀！

由于博主也是小菜鸡，一些语言表达可能不专业，希望大家理解！！

操作系统

首先，我安装了win11+ubuntu16.04双系统。ubuntu双系统安装参考教程

注意！博主使用的是huawei matebook13，双系统安装完成后重启出现了直接进入win的情况，这里只需按F2将win11系统改成disable，就可以成功看到开机时的系统选择界面啦！

必备工具

1、Git & curl

sudo apt install git
sudo apt install curl

2、docker-ce（执行脚本的时候需要一点时间，要耐心等待一下哦）

curl -fsSL get.docker.com -o get-docker.sh
sudo sh get-docker.sh
安装完后了一测试一下
sudo docker run hello-world

3、docker-compose

sudo apt install docker-compose

4、go
linux 版本Go下载，解压到 /usr/local 目录。
/usr目录在这里哦！
执行命令

mkdir $HOME/go

修改环境配置

vi ~/.bashrc

复制如下三个环境变量（复制粘贴时需要按“i”进入插入模式，复制后，先按"ESC"切换至命令模式，然后“：wq”保存并退出。）

export GOROOT=/usr/local/go
export GOPATH=$HOME/go
export PATH=$PATH:$GOROOT/bin:$GOPATH/bin

让配置文件生效

source ~/.bashrc

下载Fabric、Fabric-samples和二进制工具（建议在home下建立新的文件夹）

bin&config、fabric1.2.0、Fabric-samples1.2.0.

下载Fabric相关镜像

首先，保存以下内容bootstrap.sh

#!/bin/bash
#
# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#

# if version not passed in, default to latest released version
VERSION=2.1.0
# if ca version not passed in, default to latest released version
CA_VERSION=1.4.6
# current version of thirdparty images (couchdb, kafka and zookeeper) released
THIRDPARTY_IMAGE_VERSION=0.4.18
ARCH=$(echo "$(uname -s|tr '[:upper:]' '[:lower:]'|sed 's/mingw64_nt.*/windows/')-$(uname -m | sed 's/x86_64/amd64/g')")
MARCH=$(uname -m)

printHelp() {
    echo "Usage: bootstrap.sh [version [ca_version [thirdparty_version]]] [options]"
    echo
    echo "options:"
    echo "-h : this help"
    echo "-d : bypass docker image download"
    echo "-s : bypass fabric-samples repo clone"
    echo "-b : bypass download of platform-specific binaries"
    echo
    echo "e.g. bootstrap.sh 2.1.0 1.4.6 0.4.18 -s"
    echo "would download docker images and binaries for Fabric v2.1.0 and Fabric CA v1.4.6"
}

# dockerPull() pulls docker images from fabric and chaincode repositories
# note, if a docker image doesn't exist for a requested release, it will simply
# be skipped, since this script doesn't terminate upon errors.

dockerPull() {
    #three_digit_image_tag is passed in, e.g. "1.4.6"
    three_digit_image_tag=$1
    shift
    #two_digit_image_tag is derived, e.g. "1.4", especially useful as a local tag for two digit references to most recent baseos, ccenv, javaenv, nodeenv patch releases
    two_digit_image_tag=$(echo $three_digit_image_tag | cut -d'.' -f1,2)
    while [[ $# -gt 0 ]]
    do
        image_name="$1"
        echo "====> hyperledger/fabric-$image_name:$three_digit_image_tag"
        docker pull "hyperledger/fabric-$image_name:$three_digit_image_tag"
        docker tag "hyperledger/fabric-$image_name:$three_digit_image_tag" "hyperledger/fabric-$image_name"
        docker tag "hyperledger/fabric-$image_name:$three_digit_image_tag" "hyperledger/fabric-$image_name:$two_digit_image_tag"
        shift
    done
}


pullDockerImages() {
    command -v docker >& /dev/null
    NODOCKER=$?
    if [ "${NODOCKER}" == 0 ]; then
        FABRIC_IMAGES=(peer orderer ccenv tools)
        case "$VERSION" in
        1.*)
            FABRIC_IMAGES+=(javaenv)
            shift
            ;;
        2.*)
            FABRIC_IMAGES+=(nodeenv baseos javaenv)
            shift
            ;;
        esac
        echo "FABRIC_IMAGES:" "${FABRIC_IMAGES[@]}"
        echo "===> Pulling fabric Images"
        dockerPull "${FABRIC_TAG}" "${FABRIC_IMAGES[@]}"
        echo "===> Pulling fabric ca Image"
        CA_IMAGE=(ca)
        dockerPull "${CA_TAG}" "${CA_IMAGE[@]}"
        echo "===> Pulling thirdparty docker images"
        THIRDPARTY_IMAGES=(zookeeper kafka couchdb)
        dockerPull "${THIRDPARTY_TAG}" "${THIRDPARTY_IMAGES[@]}"
        echo
        echo "===> List out hyperledger docker images"
        docker images | grep hyperledger
    else
        echo "========================================================="
        echo "Docker not installed, bypassing download of Fabric images"
        echo "========================================================="
    fi
}

DOCKER=true
SAMPLES=true
BINARIES=true

# Parse commandline args pull out
# version and/or ca-version strings first
if [ -n "$1" ] && [ "${1:0:1}" != "-" ]; then
    VERSION=$1;shift
    if [ -n "$1" ]  && [ "${1:0:1}" != "-" ]; then
        CA_VERSION=$1;shift
        if [ -n  "$1" ] && [ "${1:0:1}" != "-" ]; then
            THIRDPARTY_IMAGE_VERSION=$1;shift
        fi
    fi
fi

# prior to 1.2.0 architecture was determined by uname -m
if [[ $VERSION =~ ^1\.[0-1]\.* ]]; then
    export FABRIC_TAG=${MARCH}-${VERSION}
    export CA_TAG=${MARCH}-${CA_VERSION}
    export THIRDPARTY_TAG=${MARCH}-${THIRDPARTY_IMAGE_VERSION}
else
    # starting with 1.2.0, multi-arch images will be default
    : "${CA_TAG:="$CA_VERSION"}"
    : "${FABRIC_TAG:="$VERSION"}"
    : "${THIRDPARTY_TAG:="$THIRDPARTY_IMAGE_VERSION"}"
fi

BINARY_FILE=hyperledger-fabric-${ARCH}-${VERSION}.tar.gz
CA_BINARY_FILE=hyperledger-fabric-ca-${ARCH}-${CA_VERSION}.tar.gz

# then parse opts
while getopts "h?dsb" opt; do
    case "$opt" in
        h|\?)
            printHelp
            exit 0
            ;;
        d)  DOCKER=false
            ;;
        s)  SAMPLES=false
            ;;
        b)  BINARIES=false
            ;;
    esac
done

if [ "$DOCKER" == "true" ]; then
    echo
    echo "Pull Hyperledger Fabric docker images"
    echo
    pullDockerImages
fi

运行脚本前我们需要先配置阿里云镜像加速器
进入阿里云官网，注册一个属于自己的帐号，然后依次进入“控制台”-“产品与服务”，搜索“容器镜像服务**”根据教程进行配置即可。
然后就可以执行脚本啦。出现下图就成功啦。

修改脚本权限
chmod 755 bootstrap.sh
执行脚本并指定版本号
sudo ./bootstrap.sh 1.2.0 1.2.0 0.4.10

配置环境变量
环境变量配置路径是自己存放bin的路径
例如我的bin路径是/home/hyfa/fabric/fabric-samples/bin

vi ~/.bashrc
export PATH=$PATH:$GOROOT/bin:$GOPATH/bin:/home/hyfa/fabric/fabric-samples/bin
source ~/.bashrc

激动人心的时刻到来啦！测试环境是否搭建成功。

在存放first-network所在目录下进行启动。

./byfn.sh generate
./byfn.sh up

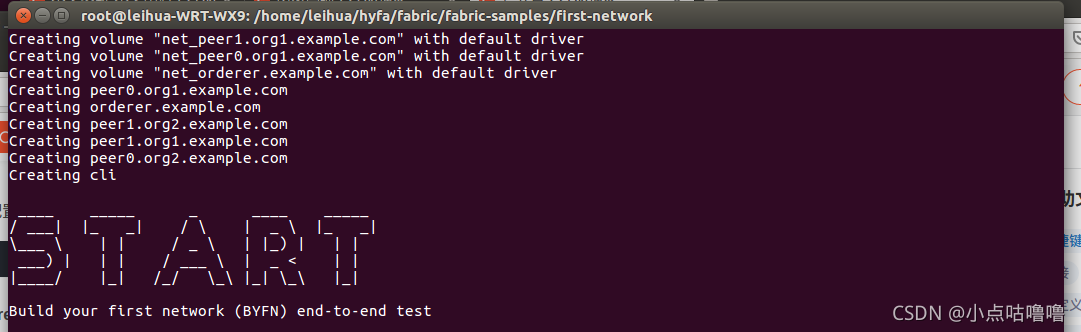

如果你成功看到了图片中的结果，那么你就和我一样上岸啦！

!!!在这里特别鸣谢“万生世代teikin”小姐姐，让我成功上岸！ 小姐姐的原教程在这里哦！
