protected void populateBean(String beanName, RootBeanDefinition mbd, @Nullable BeanWrapper bw) {
if (bw == null) {
if (mbd.hasPropertyValues()) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Cannot apply property values to null instance");
}
else {
// Skip property population phase for null instance.
return;
}
}
// Give any InstantiationAwareBeanPostProcessors the opportunity to modify the
// state of the bean before properties are set. This can be used, for example,
// to support styles of field injection.
boolean continueWithPropertyPopulation = true;
if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof InstantiationAwareBeanPostProcessor) {
InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
if (!ibp.postProcessAfterInstantiation(bw.getWrappedInstance(), beanName)) {
continueWithPropertyPopulation = false;
break;
}
}
}
}
// 如果上面设置continueWithPropertyPopulation = false，表明用户可能已经自己填充了
// bean的属性，不需要Spring帮忙填充了。此时直接返回即可
if (!continueWithPropertyPopulation) {
return;
}
// pvs是一个MutablePropertyValues实例，里面实现了PropertyValues接口，
// 提供属性的读写操作实现，同时可以通过调用构造函数实现深拷贝
// 获取BeanDefinition里面为Bean设置上的属性值
PropertyValues pvs = (mbd.hasPropertyValues() ? mbd.getPropertyValues() : null);
int resolvedAutowireMode = mbd.getResolvedAutowireMode();
if (resolvedAutowireMode == AUTOWIRE_BY_NAME || resolvedAutowireMode == AUTOWIRE_BY_TYPE) {
MutablePropertyValues newPvs = new MutablePropertyValues(pvs);
// Add property values based on autowire by name if applicable.
if (resolvedAutowireMode == AUTOWIRE_BY_NAME) {
autowireByName(beanName, mbd, bw, newPvs);
}
// Add property values based on autowire by type if applicable.
if (resolvedAutowireMode == AUTOWIRE_BY_TYPE) {
autowireByType(beanName, mbd, bw, newPvs);
}
pvs = newPvs;
}
boolean hasInstAwareBpps = hasInstantiationAwareBeanPostProcessors();
boolean needsDepCheck = (mbd.getDependencyCheck() != AbstractBeanDefinition.DEPENDENCY_CHECK_NONE);
PropertyDescriptor[] filteredPds = null;
if (hasInstAwareBpps) {
if (pvs == null) {
pvs = mbd.getPropertyValues();
}
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof InstantiationAwareBeanPostProcessor) {
InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
// 在这里会对@Autowired标记的属性进行依赖注入
PropertyValues pvsToUse = ibp.postProcessProperties(pvs, bw.getWrappedInstance(), beanName);
if (pvsToUse == null) {
if (filteredPds == null) {
filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
}
pvsToUse = ibp.postProcessPropertyValues(pvs, filteredPds, bw.getWrappedInstance(), beanName);
if (pvsToUse == null) {
return;
}
}
pvs = pvsToUse;
}
}
}
// 依赖检查，对应depend-on属性，3.0已经弃用此属性
if (needsDepCheck) {
// 过滤出所有需要进行依赖检查的属性编辑器
if (filteredPds == null) {
filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
}
checkDependencies(beanName, mbd, filteredPds, pvs);
}
if (pvs != null) {
// 最终将属性注入到Bean的Wrapper实例里，这里的注入主要是供
// 显式配置了autowiredbyName或者ByType的属性注入，
// 针对注解来讲，由于在AutowiredAnnotationBeanPostProcessor已经完成了注入，
// 所以此处不执行
applyPropertyValues(beanName, mbd, bw, pvs);
}
}

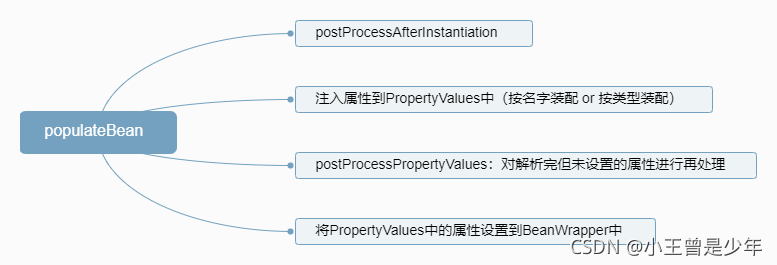

完成了按名字或按类型自动装配后，来到脑图里第三步，对解析完但还未设置的属性进行再处理。
这里需要关注AutowiredAnnotationBeanPostProcessor实现的postProcessProperties方法
@Override
public PropertyValues postProcessProperties(PropertyValues pvs, Object bean, String beanName) {
// 获取指定类中@Autowired相关注解的元信息
InjectionMetadata metadata = findAutowiringMetadata(beanName, bean.getClass(), pvs);
try {
// 对Bean的属性进行自动注入
metadata.inject(bean, beanName, pvs);
}
catch (BeanCreationException ex) {
throw ex;
}
catch (Throwable ex) {
throw new BeanCreationException(beanName, "Injection of autowired dependencies failed", ex);
}
return pvs;
}
首先会去尝试获取InjectionMetadata对象，findAutowiringMetadata方法之前在分析该类的postProcessMergedBeanDefinition方法时，已经获取到了存储有该bean实例里被@Autowired或@Value标签修饰的属性列表的InjectionMetaData对象，并且将其已经放置到了缓存中。再次进入findAutowiringMetadata
在此次调用时，相关的InjectionMetadata实例已经从缓存中获取到了，不需要再进到if里面去解析bean了，此时又回到postProcessProperties方法里，取到了InjectionMetadata实例之后直接对bean注入属性
metadata.inject(bean, beanName, pvs);
public void inject(Object target, @Nullable String beanName, @Nullable PropertyValues pvs) throws Throwable {
Collection<InjectedElement> checkedElements = this.checkedElements;
// 要注入的字段集合
Collection<InjectedElement> elementsToIterate =
(checkedElements != null ? checkedElements : this.injectedElements);
if (!elementsToIterate.isEmpty()) {
// 遍历每个字段并进行注入
for (InjectedElement element : elementsToIterate) {
if (logger.isTraceEnabled()) {
logger.trace("Processing injected element of bean '" + beanName + "': " + element);
}
element.inject(target, beanName, pvs);
}
}
}
该方法遍历每一个属性元素去调用元素的inject方法，进入inject发现又回到了AutowiredAnnotationBeanPostProcessor类里：
@Override
protected void inject(Object bean, @Nullable String beanName, @Nullable PropertyValues pvs) throws Throwable {
// 获取要注入的成员变量
Field field = (Field) this.member;
Object value;
// 如果成员变量的值先前缓存过
if (this.cached) {
// 从缓存中获取成员变量的值
value = resolvedCachedArgument(beanName, this.cachedFieldValue);
}
// 没有缓存
else {
// 创建一个成员变量的依赖描述符实例
DependencyDescriptor desc = new DependencyDescriptor(field, this.required);
desc.setContainingClass(bean.getClass());
Set<String> autowiredBeanNames = new LinkedHashSet<>(1);
Assert.state(beanFactory != null, "No BeanFactory available");
// 获取容器的类型转换器
TypeConverter typeConverter = beanFactory.getTypeConverter();
try {
// 获取注入的值
value = beanFactory.resolveDependency(desc, beanName, autowiredBeanNames, typeConverter);
}
catch (BeansException ex) {
throw new UnsatisfiedDependencyException(null, beanName, new InjectionPoint(field), ex);
}
synchronized (this) {
if (!this.cached) {
if (value != null || this.required) {
this.cachedFieldValue = desc;
registerDependentBeans(beanName, autowiredBeanNames);
if (autowiredBeanNames.size() == 1) {
String autowiredBeanName = autowiredBeanNames.iterator().next();
if (beanFactory.containsBean(autowiredBeanName) &&
beanFactory.isTypeMatch(autowiredBeanName, field.getType())) {
this.cachedFieldValue = new ShortcutDependencyDescriptor(
desc, autowiredBeanName, field.getType());
}
}
}
else {
this.cachedFieldValue = null;
}
this.cached = true;
}
}
}
if (value != null) {
ReflectionUtils.makeAccessible(field);
field.set(bean, value);
}
}
}
在调用的过程中复用了其他类的装配能力，此时是给boyfriend装配上girlfriend实例，首先去缓存里看下之前是否解析过girlfriend，第一次执行会进入到else里，先用DependencyDescriptor包装一下属性field：
DependencyDescriptor desc = new DependencyDescriptor(field, this.required);
之后给desc注册上宿主的类名（Boyfriend）：
desc.setContainingClass(bean.getClass());
之后会尝试获取之前容器初始化时注册上去的转换器TypeConverter：
TypeConverter typeConverter = beanFactory.getTypeConverter();
converter用来做类型转换，默认获取spring自带的simpleTypeConverter用来处理简单类型的转换，之后执行
// 获取注入的值
value = beanFactory.resolveDependency(desc, beanName, autowiredBeanNames, typeConverter);
进入resolveDependency方法里：
@Override
@Nullable
public Object resolveDependency(DependencyDescriptor descriptor, @Nullable String requestingBeanName,
@Nullable Set<String> autowiredBeanNames, @Nullable TypeConverter typeConverter) throws BeansException {
descriptor.initParameterNameDiscovery(getParameterNameDiscoverer());
if (Optional.class == descriptor.getDependencyType()) {
return createOptionalDependency(descriptor, requestingBeanName);
}
else if (ObjectFactory.class == descriptor.getDependencyType() ||
ObjectProvider.class == descriptor.getDependencyType()) {
return new DependencyObjectProvider(descriptor, requestingBeanName);
}
else if (javaxInjectProviderClass == descriptor.getDependencyType()) {
return new Jsr330Factory().createDependencyProvider(descriptor, requestingBeanName);
}
else {
Object result = getAutowireCandidateResolver().getLazyResolutionProxyIfNecessary(
descriptor, requestingBeanName);
if (result == null) {
result = doResolveDependency(descriptor, requestingBeanName, autowiredBeanNames, typeConverter);
}
return result;
}
}
在方法里会依据依赖描述符的不同类型进行不同的处理，但是最终都会到else里，真正起作用的是doResolveDependency方法
@Nullable
public Object doResolveDependency(DependencyDescriptor descriptor, @Nullable String beanName,
@Nullable Set<String> autowiredBeanNames, @Nullable TypeConverter typeConverter) throws BeansException {
InjectionPoint previousInjectionPoint = ConstructorResolver.setCurrentInjectionPoint(descriptor);
try {
// 该方法最终调用了beanFactory.getBean(String, Class)，从容器中获取依赖
Object shortcut = descriptor.resolveShortcut(this);
// 如果容器缓存中存在所需依赖，这里进行短路路操作，提前结束依赖解析逻辑
if (shortcut != null) {
return shortcut;
}
Class<?> type = descriptor.getDependencyType();
// 处理@Value注解
Object value = getAutowireCandidateResolver().getSuggestedValue(descriptor);
if (value != null) {
if (value instanceof String) {
String strVal = resolveEmbeddedValue((String) value);
BeanDefinition bd = (beanName != null && containsBean(beanName) ?
getMergedBeanDefinition(beanName) : null);
value = evaluateBeanDefinitionString(strVal, bd);
}
TypeConverter converter = (typeConverter != null ? typeConverter : getTypeConverter());
try {
return converter.convertIfNecessary(value, type, descriptor.getTypeDescriptor());
}
catch (UnsupportedOperationException ex) {
// A custom TypeConverter which does not support TypeDescriptor resolution...
return (descriptor.getField() != null ?
converter.convertIfNecessary(value, type, descriptor.getField()) :
converter.convertIfNecessary(value, type, descriptor.getMethodParameter()));
}
}
// 如果标识@Autowired注解的成员变量是复合类型，如Array，Collection，Map
// 从这个方法获取@Autowired里的值
Object multipleBeans = resolveMultipleBeans(descriptor, beanName, autowiredBeanNames, typeConverter);
if (multipleBeans != null) {
return multipleBeans;
}
Map<String, Object> matchingBeans = findAutowireCandidates(beanName, type, descriptor);
if (matchingBeans.isEmpty()) {
if (isRequired(descriptor)) {
raiseNoMatchingBeanFound(type, descriptor.getResolvableType(), descriptor);
}
return null;
}
String autowiredBeanName;
Object instanceCandidate;
if (matchingBeans.size() > 1) {
autowiredBeanName = determineAutowireCandidate(matchingBeans, descriptor);
if (autowiredBeanName == null) {
if (isRequired(descriptor) || !indicatesMultipleBeans(type)) {
return descriptor.resolveNotUnique(descriptor.getResolvableType(), matchingBeans);
}
else {
// In case of an optional Collection/Map, silently ignore a non-unique case:
// possibly it was meant to be an empty collection of multiple regular beans
// (before 4.3 in particular when we didn't even look for collection beans).
return null;
}
}
instanceCandidate = matchingBeans.get(autowiredBeanName);
}
else {
// We have exactly one match.
Map.Entry<String, Object> entry = matchingBeans.entrySet().iterator().next();
autowiredBeanName = entry.getKey();
instanceCandidate = entry.getValue();
}
if (autowiredBeanNames != null) {
autowiredBeanNames.add(autowiredBeanName);
}
if (instanceCandidate instanceof Class) {
instanceCandidate = descriptor.resolveCandidate(autowiredBeanName, type, this);
}
Object result = instanceCandidate;
if (result instanceof NullBean) {
if (isRequired(descriptor)) {
raiseNoMatchingBeanFound(type, descriptor.getResolvableType(), descriptor);
}
result = null;
}
if (!ClassUtils.isAssignableValue(type, result)) {
throw new BeanNotOfRequiredTypeException(autowiredBeanName, type, instanceCandidate.getClass());
}
return result;
}
finally {
ConstructorResolver.setCurrentInjectionPoint(previousInjectionPoint);
}
}
首先尝试调用依赖描述符实例的resolveShortcut方法，尝试从容器缓存里获取属性名对应的bean实例
@Nullable
public Object resolveShortcut(BeanFactory beanFactory) throws BeansException {
return null;
}
相对于注解的这种情况，并没有实现该方法。
之后尝试从依赖描述符实例里面去获取目标实例的属性
Class<?> type = descriptor.getDependencyType();
这里的目标实例是girlfriend，之后就会调用注解候选解析器的getSuggestedValue方法尝试获取属性值，但是对于@Autowired修饰的属性来说，这一步无法获取到值
@Override
@Nullable
public Object getSuggestedValue(DependencyDescriptor descriptor) {
Object value = findValue(descriptor.getAnnotations());
if (value == null) {
MethodParameter methodParam = descriptor.getMethodParameter();
if (methodParam != null) {
value = findValue(methodParam.getMethodAnnotations());
}
}
return value;
}
该方法调用findValue方法
@Nullable
protected Object findValue(Annotation[] annotationsToSearch) {
if (annotationsToSearch.length > 0) { // qualifier annotations have to be local
AnnotationAttributes attr = AnnotatedElementUtils.getMergedAnnotationAttributes(
AnnotatedElementUtils.forAnnotations(annotationsToSearch), this.valueAnnotationType);
if (attr != null) {
return extractValue(attr);
}
}
return null;
}
该方法主要是提取@Value修饰的属性值的
回到doResolveDependency方法
在if里会视情况对获取到的value进行类型转换。
之后来到resolveMultipleBeans方法
// 如果标识@Autowired注解的成员变量是复合类型，如Array，Collection，Map
// 从这个方法获取@Autowired里的值
Object multipleBeans = resolveMultipleBeans(descriptor, beanName, autowiredBeanNames, typeConverter);
@Nullable
private Object resolveMultipleBeans(DependencyDescriptor descriptor, @Nullable String beanName,
@Nullable Set<String> autowiredBeanNames, @Nullable TypeConverter typeConverter) {
final Class<?> type = descriptor.getDependencyType();
// 首先是stream类型的处理
if (descriptor instanceof StreamDependencyDescriptor) {
Map<String, Object> matchingBeans = findAutowireCandidates(beanName, type, descriptor);
if (autowiredBeanNames != null) {
autowiredBeanNames.addAll(matchingBeans.keySet());
}
Stream<Object> stream = matchingBeans.keySet().stream()
.map(name -> descriptor.resolveCandidate(name, type, this))
.filter(bean -> !(bean instanceof NullBean));
if (((StreamDependencyDescriptor) descriptor).isOrdered()) {
stream = stream.sorted(adaptOrderComparator(matchingBeans));
}
return stream;
}
// 判断要注入的是不是一个数组，可见除了集合注入外，也可以以数组的形式注入bean
else if (type.isArray()) {
Class<?> componentType = type.getComponentType();
ResolvableType resolvableType = descriptor.getResolvableType();
Class<?> resolvedArrayType = resolvableType.resolve(type);
if (resolvedArrayType != type) {
componentType = resolvableType.getComponentType().resolve();
}
if (componentType == null) {
return null;
}
Map<String, Object> matchingBeans = findAutowireCandidates(beanName, componentType,
new MultiElementDescriptor(descriptor));
if (matchingBeans.isEmpty()) {
return null;
}
if (autowiredBeanNames != null) {
autowiredBeanNames.addAll(matchingBeans.keySet());
}
TypeConverter converter = (typeConverter != null ? typeConverter : getTypeConverter());
Object result = converter.convertIfNecessary(matchingBeans.values(), resolvedArrayType);
if (result instanceof Object[]) {
Comparator<Object> comparator = adaptDependencyComparator(matchingBeans);
if (comparator != null) {
Arrays.sort((Object[]) result, comparator);
}
}
return result;
}
// 判断注入的是不是集合的接口类（List，Set等）
else if (Collection.class.isAssignableFrom(type) && type.isInterface()) {
Class<?> elementType = descriptor.getResolvableType().asCollection().resolveGeneric();
if (elementType == null) {
return null;
}
Map<String, Object> matchingBeans = findAutowireCandidates(beanName, elementType,
new MultiElementDescriptor(descriptor));
if (matchingBeans.isEmpty()) {
return null;
}
if (autowiredBeanNames != null) {
autowiredBeanNames.addAll(matchingBeans.keySet());
}
TypeConverter converter = (typeConverter != null ? typeConverter : getTypeConverter());
Object result = converter.convertIfNecessary(matchingBeans.values(), type);
if (result instanceof List) {
Comparator<Object> comparator = adaptDependencyComparator(matchingBeans);
if (comparator != null) {
((List<?>) result).sort(comparator);
}
}
return result;
}
// 判断要注入的是不是map类
else if (Map.class == type) {
ResolvableType mapType = descriptor.getResolvableType().asMap();
Class<?> keyType = mapType.resolveGeneric(0);
if (String.class != keyType) {
return null;
}
Class<?> valueType = mapType.resolveGeneric(1);
if (valueType == null) {
return null;
}
Map<String, Object> matchingBeans = findAutowireCandidates(beanName, valueType,
new MultiElementDescriptor(descriptor));
if (matchingBeans.isEmpty()) {
return null;
}
if (autowiredBeanNames != null) {
autowiredBeanNames.addAll(matchingBeans.keySet());
}
return matchingBeans;
}
else {
return null;
}
}
该方法主要是针对复合类型（stream类型、数组类型、集合类型、map类型）的值进行解析处理，无论是哪种复合类型，最终都会调用findAutowireCandidates方法去获取注入的候选者列表（可能有多个）
由于测试时并非用的复合类型的数据，所以此处的multipleBeans为空
回到doResolveDependency，继续执行后续的逻辑
// 如果标识@Autowired注解的属性是非复合类型
// 从这个方法获取@Autowired里的值
Map<String, Object> matchingBeans = findAutowireCandidates(beanName, type, descriptor);
if (matchingBeans.isEmpty()) {
// 没有找到，检验@Autowire的require是否为true
if (isRequired(descriptor)) {
raiseNoMatchingBeanFound(type, descriptor.getResolvableType(), descriptor);
}
return null;
}
??处理被@Autowired标记的非复合类型的逻辑，同样会调用处理复合逻辑类型里的findAutowireCandidates方法尝试从容器里面根据属性的类型获取到对应的bean名字，
protected Map<String, Object> findAutowireCandidates(
@Nullable String beanName, Class<?> requiredType, DependencyDescriptor descriptor) {
// 查找出所有符合类型的beanName
String[] candidateNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
this, requiredType, true, descriptor.isEager());
Map<String, Object> result = new LinkedHashMap<>(candidateNames.length);
// resolvableDependencies记录了属性类型--值的映射
for (Map.Entry<Class<?>, Object> classObjectEntry : this.resolvableDependencies.entrySet()) {
Class<?> autowiringType = classObjectEntry.getKey();
if (autowiringType.isAssignableFrom(requiredType)) {
Object autowiringValue = classObjectEntry.getValue();
// key值是我们需要的类型
autowiringValue = AutowireUtils.resolveAutowiringValue(autowiringValue, requiredType);
if (requiredType.isInstance(autowiringValue)) {
result.put(ObjectUtils.identityToString(autowiringValue), autowiringValue);
break;
}
}
}
// 遍历候选数组
for (String candidate : candidateNames) {
// 候选Bean不是自引用（即要注入的类不能是类本身，会触发无限递归注入）
if (!isSelfReference(beanName, candidate) && isAutowireCandidate(candidate, descriptor)) {
addCandidateEntry(result, candidate, descriptor, requiredType);
}
}
if (result.isEmpty()) {
boolean multiple = indicatesMultipleBeans(requiredType);
// Consider fallback matches if the first pass failed to find anything...
DependencyDescriptor fallbackDescriptor = descriptor.forFallbackMatch();
for (String candidate : candidateNames) {
if (!isSelfReference(beanName, candidate) && isAutowireCandidate(candidate, fallbackDescriptor) &&
(!multiple || getAutowireCandidateResolver().hasQualifier(descriptor))) {
addCandidateEntry(result, candidate, descriptor, requiredType);
}
}
if (result.isEmpty() && !multiple) {
// Consider self references as a final pass...
// but in the case of a dependency collection, not the very same bean itself.
for (String candidate : candidateNames) {
if (isSelfReference(beanName, candidate) &&
(!(descriptor instanceof MultiElementDescriptor) || !beanName.equals(candidate)) &&
isAutowireCandidate(candidate, fallbackDescriptor)) {
addCandidateEntry(result, candidate, descriptor, requiredType);
}
}
}
}
return result;
}
首先调用BeanFactoryUtils.beanNamesForTypeIncludingAncestors，尝试获取针对于该属性的候选名单，beanNamesForTypeIncludingAncestors会尝试从各层容器里寻找符合该属性类型的bean的名字。
Map<String, Object> result会存放girlfriend。
之后会尝试去从已经注册到容器里的依赖关系里，去寻找先前有没有注入过girlfriend属性的依赖，这里相当于缓存的作用，由于是第一次所以肯定没有。
之后for循环会轮询候选列表做一些必要的检查，过滤掉自己依赖于自己的，再看看是否是支持注入的，满足条件就将其添加到候选人的列表当中
之后如果result为空的话会对依赖描述符做一个降级处理（一般进不来这个逻辑里）
DependencyDescriptor fallbackDescriptor = descriptor.forFallbackMatch();
这一步可以理解为在容器里找不到和当前类型匹配的bean时，会尝试去到可以替代该类的类中查找，比如girlfriend的父类看看能不能找到候选者
回到doResolveDependency，如果选出的bean个数大于1的话，就会选出最佳的候选者
if (matchingBeans.size() > 1) {
// 如果被@Autowired标记的有两个以上同样的类型。
// 就需要依据@Primary以及@Priority注解标签选择了
autowiredBeanName = determineAutowireCandidate(matchingBeans, descriptor);
if (autowiredBeanName == null) {
if (isRequired(descriptor) || !indicatesMultipleBeans(type)) {
// 无法选出唯一的，则直接报错
return descriptor.resolveNotUnique(descriptor.getResolvableType(), matchingBeans);
}
else {
// In case of an optional Collection/Map, silently ignore a non-unique case:
// possibly it was meant to be an empty collection of multiple regular beans
// (before 4.3 in particular when we didn't even look for collection beans).
return null;
}
}
instanceCandidate = matchingBeans.get(autowiredBeanName);
}
进入到determineAutowireCandidate方法，用于选择最佳的候选bean：
@Nullable
protected String determineAutowireCandidate(Map<String, Object> candidates, DependencyDescriptor descriptor) {
Class<?> requiredType = descriptor.getDependencyType();
// 根据@Primary注解标签来选择最优解
String primaryCandidate = determinePrimaryCandidate(candidates, requiredType);
if (primaryCandidate != null) {
return primaryCandidate;
}
// 根据@Order，@PriorityOrder，及实现Order接口的序号来选择最优解，选序号最小的
String priorityCandidate = determineHighestPriorityCandidate(candidates, requiredType);
if (priorityCandidate != null) {
return priorityCandidate;
}
// Fallback
for (Map.Entry<String, Object> entry : candidates.entrySet()) {
String candidateName = entry.getKey();
Object beanInstance = entry.getValue();
if ((beanInstance != null && this.resolvableDependencies.containsValue(beanInstance)) ||
matchesBeanName(candidateName, descriptor.getDependencyName())) {
return candidateName;
}
}
return null;
}
- 先找候选bean里是否有被@Primary标记的，有则直接选择；
- 没有的话再据@Order，@PriorityOrder，及实现Order接口的序号来选择最优解，选序号最小的；
- 没有的话降级看看有没有合适的bean，用属性的名字或别名找有没有相关的bean返回。
从上面的逻辑可以看出，@Autowired并非一定按照类型来查找。
回到doResolveDependency，由于在我们的例子里只有一个候选者，所以会来到else
else {
// We have exactly one match.
Map.Entry<String, Object> entry = matchingBeans.entrySet().iterator().next();
autowiredBeanName = entry.getKey();
instanceCandidate = entry.getValue();
}
在这里会获取到对应的属性名，以及属性对应的class对象，此时只是拿到了girlfriend的名字和class，还没有创建出其实例，因为在最终确认之前没必要创建多余的bean实例。
之后调用resolveCandidate去解析类的实例：
if (instanceCandidate instanceof Class) {
instanceCandidate = descriptor.resolveCandidate(autowiredBeanName, type, this);
}
public Object resolveCandidate(String beanName, Class<?> requiredType, BeanFactory beanFactory)
throws BeansException {
return beanFactory.getBean(beanName);
}
所谓的解析其实就是根据bean的名字去调用容器的getBean方法去获取/创建出bean实例，如果经过aop包装的话，获取出的属性也会是经过aop包装的。
剩下后续就是一些验证了逻辑了，验证完之后就执行完成整个doResolveDependency方法了，此时resolveDependency方法就获得了girlfriend对应的bean实例了，再上一层回到AutowiredAnnotationBeanPostProcessor的inject方法执行的地方，获取到girlfriend的bean实例之后，就会去注册相关的依赖关系
synchronized (this) {
if (!this.cached) {
// 成员变量的值不为null，并且required属性为true
if (value != null || this.required) {
this.cachedFieldValue = desc;
// 为指定Bean注册依赖Bean
registerDependentBeans(beanName, autowiredBeanNames);
if (autowiredBeanNames.size() == 1) {
String autowiredBeanName = autowiredBeanNames.iterator().next();
// 如果容器中有指定名称的Bean对象
if (beanFactory.containsBean(autowiredBeanName) &&
// 依赖对象类型和字段类型匹配，默认按类型注入
beanFactory.isTypeMatch(autowiredBeanName, field.getType())) {
this.cachedFieldValue = new ShortcutDependencyDescriptor(
desc, autowiredBeanName, field.getType());
}
}
}
else {
this.cachedFieldValue = null;
}
this.cached = true;
}
}
注册完依赖关系后就会将bean实例放入到缓存里，在inject方法最后就是调用反射机制来给field设置上该bean实例了
// 如果字段值不为null
if (value != null) {
// 使用反射机制来赋值
ReflectionUtils.makeAccessible(field);
field.set(bean, value);
}
之后回到AbstractAutowireCapableBeanFactory的populateBean方法
// 在这里会对@Autowired标记的属性进行依赖注入
PropertyValues pvsToUse = ibp.postProcessProperties(pvs, bw.getWrappedInstance(), beanName);
这时这里执行完毕了，boyfriend就会设置上girlfriend的bean实例，接下来来到依赖检查，
// 依赖检查，对应depend-on属性，3.0已经弃用此属性
if (needsDepCheck) {
// 过滤出所有需要进行依赖检查的属性编辑器
if (filteredPds == null) {
filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
}
checkDependencies(beanName, mbd, filteredPds, pvs);
}
这里是对显式指定depends-on来检查的，默认不开启，所以会来到
if (pvs != null) {
// 最终将属性注入到Bean的Wrapper实例里，这里的注入主要是供
// 显式配置了autowiredbyName或者ByType的属性注入，
// 针对注解来讲，由于在AutowiredAnnotationBeanPostProcessor已经完成了注入，
// 所以此处不执行
applyPropertyValues(beanName, mbd, bw, pvs);
}
进入到applyPropertyValues方法里：
protected void applyPropertyValues(String beanName, BeanDefinition mbd, BeanWrapper bw, PropertyValues pvs) {
if (pvs.isEmpty()) {
return;
}
if (System.getSecurityManager() != null && bw instanceof BeanWrapperImpl) {
// 设置安全上下文，JDK安全机制
((BeanWrapperImpl) bw).setSecurityContext(getAccessControlContext());
}
MutablePropertyValues mpvs = null;
List<PropertyValue> original;
if (pvs instanceof MutablePropertyValues) {
mpvs = (MutablePropertyValues) pvs;
if (mpvs.isConverted()) {
// Shortcut: use the pre-converted values as-is.
// 若属性值已经转换了，则直接赋值
try {
bw.setPropertyValues(mpvs);
return;
}
catch (BeansException ex) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Error setting property values", ex);
}
}
// 若没有被转换，先将没转换前的原始类型值给记录下来
original = mpvs.getPropertyValueList();
}
else {
// 如果pvs不是MutablePropertyValues类型，则直接使用原始类型
original = Arrays.asList(pvs.getPropertyValues());
}
// 获取用户的自定义类型转换
TypeConverter converter = getCustomTypeConverter();
if (converter == null) {
converter = bw;
}
// 创建一个Bean定义属性值解析器，将BeanDefinition中的属性值解析为Bean实例对象的实际值
BeanDefinitionValueResolver valueResolver = new BeanDefinitionValueResolver(this, beanName, mbd, converter);
// Create a deep copy, resolving any references for values.
// 为属性需要解析的值创建一个副本，将副本的数据注入Bean实例
List<PropertyValue> deepCopy = new ArrayList<>(original.size());
boolean resolveNecessary = false;
for (PropertyValue pv : original) {
// 不需要转换的属性值直接添加
if (pv.isConverted()) {
deepCopy.add(pv);
}
else {
String propertyName = pv.getName();
// 保留转换前的属性值
Object originalValue = pv.getValue();
// 如果是被Autowired标记的实例，则把Bean里面关于set此属性的方法给记录下来，
if (originalValue == AutowiredPropertyMarker.INSTANCE) {
Method writeMethod = bw.getPropertyDescriptor(propertyName).getWriteMethod();
if (writeMethod == null) {
throw new IllegalArgumentException("Autowire marker for property without write method: " + pv);
}
originalValue = new DependencyDescriptor(new MethodParameter(writeMethod, 0), true);
}
Object resolvedValue = valueResolver.resolveValueIfNecessary(pv, originalValue);
Object convertedValue = resolvedValue;
boolean convertible = bw.isWritableProperty(propertyName) &&
!PropertyAccessorUtils.isNestedOrIndexedProperty(propertyName);
if (convertible) {
convertedValue = convertForProperty(resolvedValue, propertyName, bw, converter);
}
// Possibly store converted value in merged bean definition,
// in order to avoid re-conversion for every created bean instance.
if (resolvedValue == originalValue) {
if (convertible) {
pv.setConvertedValue(convertedValue);
}
deepCopy.add(pv);
}
else if (convertible && originalValue instanceof TypedStringValue &&
!((TypedStringValue) originalValue).isDynamic() &&
!(convertedValue instanceof Collection || ObjectUtils.isArray(convertedValue))) {
pv.setConvertedValue(convertedValue);
deepCopy.add(pv);
}
else {
resolveNecessary = true;
deepCopy.add(new PropertyValue(pv, convertedValue));
}
}
}
if (mpvs != null && !resolveNecessary) {
mpvs.setConverted();
}
// Set our (possibly massaged) deep copy.
try {
// 进行属性的依赖注入
bw.setPropertyValues(new MutablePropertyValues(deepCopy));
}
catch (BeansException ex) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Error setting property values", ex);
}
}
针对注解的情况，直接返回
if (pvs.isEmpty()) {
return;
}
该方法主要是视情况做各种属性值的类型转换，毕竟获取到的是字符串类型的Type，需要这些字符串的type转换成对应的类型，首先看一下缓存里有没有，如果没有再做转换，转换完成后最终会调用
bw.setPropertyValues(new MutablePropertyValues(deepCopy));
给bean设置上属性值。
回到AbstractAutowireCapableBeanFactory的doCreateBean方法，执行完
populateBean(beanName, mbd, instanceWrapper);
之后调用
// 初始化bean，过程如下：
// 1. 判断是否实现了BeanNameAware，BeanClassLoaderAware
// BeanFactoryAware方法，如果有，则设置相关的属性
// 2. 调用bean初始化的前置（BeanPostProcessor）操作
// 3. 执行初始化的方法
// 如果有initializingBean，则调用afterPropertiesSet
// 如果有InitMethod，则调用初始方法
// 4. 调用bean初始化的后置（BeanPostProcessor）操作
exposedObject = initializeBean(beanName, exposedObject, mbd);
protected Object initializeBean(final String beanName, final Object bean, @Nullable RootBeanDefinition mbd) {
if (System.getSecurityManager() != null) {
AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
invokeAwareMethods(beanName, bean);
return null;
}, getAccessControlContext());
}
else {
invokeAwareMethods(beanName, bean);
}
Object wrappedBean = bean;
if (mbd == null || !mbd.isSynthetic()) {
wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);
}
try {
invokeInitMethods(beanName, wrappedBean, mbd);
}
catch (Throwable ex) {
throw new BeanCreationException(
(mbd != null ? mbd.getResourceDescription() : null),
beanName, "Invocation of init method failed", ex);
}
if (mbd == null || !mbd.isSynthetic()) {
wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
}
return wrappedBean;
}
跳过前面检查的逻辑之后执行
invokeAwareMethods(beanName, bean);
private void invokeAwareMethods(final String beanName, final Object bean) {
if (bean instanceof Aware) {
if (bean instanceof BeanNameAware) {
((BeanNameAware) bean).setBeanName(beanName);
}
if (bean instanceof BeanClassLoaderAware) {
ClassLoader bcl = getBeanClassLoader();
if (bcl != null) {
((BeanClassLoaderAware) bean).setBeanClassLoader(bcl);
}
}
if (bean instanceof BeanFactoryAware) {
((BeanFactoryAware) bean).setBeanFactory(AbstractAutowireCapableBeanFactory.this);
}
}
}
该方法判断bean是否实现了相关的一些bean级别的Aware接口的set方法，如果实现了就将其set进去
回到initializeBean，执行完
invokeAwareMethods(beanName, bean);
之后就会判断
if (mbd == null || !mbd.isSynthetic()) {
wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
}
如果bean实例不是spring内置的一些特殊的bean，就会调用applyBeanPostProcessorsAfterInitialization方法去处理
@Override
public Object applyBeanPostProcessorsAfterInitialization(Object existingBean, String beanName)
throws BeansException {
Object result = existingBean;
for (BeanPostProcessor processor : getBeanPostProcessors()) {
Object current = processor.postProcessAfterInitialization(result, beanName);
if (current == null) {
return result;
}
result = current;
}
return result;
}
发现该方法又使用了责任链模式，此时调用的是通用的bean后置处理器
Object current = processor.postProcessAfterInitialization(result, beanName);
此时该方法的执行节点是在bean构造完成之后，并且bean里面的初始化方法InitMethod被执行之前，在该责任链中，如果其中某个processor处理之后为空则中止执行，同时会返回最近的一个processor对bean处理的结果
回到initializeBean方法里，接下来会执行
invokeInitMethods(beanName, wrappedBean, mbd);
protected void invokeInitMethods(String beanName, final Object bean, @Nullable RootBeanDefinition mbd)
throws Throwable {
// 如果当前bean是InitializingBean类型的 && afterPropertiesSet这个方法没有注册为外部管理的初始化方法
// 就回调afterPropertiesSet方法
boolean isInitializingBean = (bean instanceof InitializingBean);
if (isInitializingBean && (mbd == null || !mbd.isExternallyManagedInitMethod("afterPropertiesSet"))) {
if (logger.isTraceEnabled()) {
logger.trace("Invoking afterPropertiesSet() on bean with name '" + beanName + "'");
}
if (System.getSecurityManager() != null) {
try {
AccessController.doPrivileged((PrivilegedExceptionAction<Object>) () -> {
((InitializingBean) bean).afterPropertiesSet();
return null;
}, getAccessControlContext());
}
catch (PrivilegedActionException pae) {
throw pae.getException();
}
}
else {
((InitializingBean) bean).afterPropertiesSet();
}
}
if (mbd != null && bean.getClass() != NullBean.class) {
String initMethodName = mbd.getInitMethodName();
// 如果设置了initMethod方法的话也会执行用户配置的初始话方法
// 并且这个类不是InitializingBean类型和不是afterPropertiesSet方法；
// 才能执行用户配置的方法
// 样例<bean id="person" class="com.wjw.Person" init-method="init" destroy-method="destory"/>
if (StringUtils.hasLength(initMethodName) &&
!(isInitializingBean && "afterPropertiesSet".equals(initMethodName)) &&
!mbd.isExternallyManagedInitMethod(initMethodName)) {
invokeCustomInitMethod(beanName, bean, mbd);
}
}
}
先判断bean是否实现了InitializingBean这个初始化接口，如果实现了里面的afterPropertiesSet方法就会调用实现类里面的该方法进行一些初始化操作，
((InitializingBean) bean).afterPropertiesSet();
如果没有实现的话，就会去看是否指定了和注释样例里一样的init-method属性，有的话就执行对应的方法
回到initializeBean方法里，之后执行：
if (mbd == null || !mbd.isSynthetic()) {
wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
}
@Override
public Object applyBeanPostProcessorsAfterInitialization(Object existingBean, String beanName)
throws BeansException {
Object result = existingBean;
for (BeanPostProcessor processor : getBeanPostProcessors()) {
Object current = processor.postProcessAfterInitialization(result, beanName);
if (current == null) {
return result;
}
result = current;
}
return result;
}
同样也是执行通用的BeanPostProcessor逻辑，只要有一次结果是空就返回，postProcessAfterInitialization是spring aop的核心，之后会专门分析。
