[系统运维]脚本一键部署k8s

使用rke部署集群时，虽然已经很方便了，但是如果节点个数较多，每个节点要手动配置，防火墙，selinux, iptables等等。还是挺麻烦的， 这些配置每个节点都一样，完全可以通过脚本批量配置。

过程参考RKE部署K8S

脚本主要分为四个部分：

1. 批量配置服务器环境
2. 配置免密登录
3. 自动生成cluster.yml文件
4. 下载安装RKE,部署集群。

主要使用的工具就是expecet, 关于expcet的使用参考expect用法

在配置固定时， 我们只需要了解，节点的ip, 账号及密码。 先将这些信息写入ip.txt

[root@VM-16-15-centos ~]# cat ip.txt
10.206.16.8 root 123456
10.206.16.4 root 123456
10.206.16.7 root 123456
10.206.16.9 root 123456
10.206.16.2 root 123456

脚本如下：

#!/bin/bash
help ()
{
    echo  ' ================================================================ '
    echo  ' 脚本没有参数，请在ip.txt中写入ip地址，用户及其密码'
    echo  ' 如果rke或kubectl下载失败请手动下载或者翻墙或者国外节点'
    echo  ' ================================================================'
}
case "$1" in
    -h|--help) help; exit;;
esac
rke_user="rke"
rpm -qa | grep "expect"
if [ $? -eq 0 ]
then
  echo "expect installed"
else
  yum install -y expect
fi
cat ip.txt | while read line  #使用while命令循环登录主机进行配置
do
  ip=`echo ${line}|awk  '{print $1}'`  #ip地址
  user=`echo ${line}|awk  '{print $2}'`
  passwd=`echo ${line}|awk  '{print $3}'`
  set timeout 30
  expect << EOF
    spawn ssh $user@$ip
    expect {
        "yes/no" { send "yes\r";exp_continue }
        "password" { send "$passwd\r";exp_continue }
        "already installed" { send "\r"}
      }
    # expect "yes/no"; send "yes\r"
    # expect "password"; send "$passwd\r"
    # 基本配置
    expect "*root" ; send  "hostnamectl set-hostname node${ip: 6}\r"
     # 配置hostname
    expect "*root" ; send  "systemctl stop firewalld\r"
     # 关闭防火墙
    expect "*root" ; send  "systemctl disable firewalld\r"
     # 关闭防火墙自启动
    expect "*root" ; send  "echo \`date +\"%Y-%m-%d %H:%M:%S\"\` firewalld diabled > /root/.k8s.log\r"
     # 日志
    expect "*root" ; send  "swapoff -a\r"
      # 关闭swap
    expect "*root" ; send  "sed -ri 's/.*swap.*/#&/' /etc/fstab\r"
     # 永久关闭swap
    expect "*root" ; send  "echo \`date +\"%Y-%m-%d %H:%M:%S\"\` swap diabled >> /root/.k8s.log\r"
     # 日志

    expect "*root" ; send  "setenforce 0\r"
     #  关闭selinux
    expect "*root" ; send  "sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config\r"
      # 永久关闭selinux
    # expect "*root" ; send  "yum install ntpdate -y\r "  # 安装ntpdate
    expect "*root" ; send  "ntpdate time.windows.com\r"
     # 时间同步
    expect "*root" ; send  "cat >> /etc/sysctl.conf<<EOF
net.ipv4.ip_forward=1
net.bridge.bridge-nf-call-iptables=1
net.ipv4.neigh.default.gc_thresh1=4096
net.ipv4.neigh.default.gc_thresh2=6144
net.ipv4.neigh.default.gc_thresh3=8192
EOF\r"
      # kernel性能调优
    expect "*root" ; send  "cp /etc/sysctl.conf /etc/sysctl.conf_copy\r"
    expect "*root" ; send  "sort -n /etc/sysctl.conf_copy | uniq >/etc/sysctl.conf\r"
    expect "*root" ; send  "rm -f /etc/sysctl.conf_copy\r"
    expect "*root" ; send  "sysctl -p\r"
     # 加载配置文件
    expect "*root" ; send  "yum -y install lrzsz\r"
    # expect "*root" ; send  "yum -y install lrzsz vim gcc glibc openssl openssl-devel net-tools wget curl\r"
      # 安装基础软件包
    expect "*root" ; send  "echo \"test soft\" >> test.txt\r"
    # 安装docker

    expect "*root" ; send  "install -y yum-utils device-mapper-persistent-data lvm2\r"
    expect "*root" ; send  "yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo\r"
    expect "*root" ; send  "yum -y install docker-ce-18.09.9-3.el7 docker-ce-cli-18.09.9-3.el7\r"
    expect "*root" ; send  "systemctl start docker\r"
    expect "*root" ; send  "cat > /etc/docker/daemon.json <<EOF
{
  \"oom-score-adjust\": -1000,
  \"registry-mirrors\": \[\"https://7bezldxe.mirror.aliyuncs.com/\",\"https://kw88y6eh.mirror.aliyuncs.com\"\],
  \"storage-driver\": \"overlay2\",
  \"storage-opts\": \[\"overlay2.override_kernel_check=true\"\]
}
EOF\r"
    expect "*root" ; send  "echo \`date +\"%Y-%m-%d %H:%M:%S\"\` docker installed >> /root/.k8s.log\r"
    # 日志
    # 创建rke用户
    expect "*root" ; send  "useradd $rke_user -G docker\r"
    expect "*root" ; send  "echo \"123456\" | passwd --stdin $rke_user\r"
    expect "*root" ; send  "echo \`date +\"%Y-%m-%d %H:%M:%S\"\`  user $rke_user created >> /root/.k8s.log\r"
    expect "*root" ; send  "exit\r"
    expect eof
EOF
done
# 判断id_rsa密钥文件是否存在， 没有则创建
rke_user="rke"

if [ ! -e /home/$rke_user/.ssh ];then
  runuser -l $rke_user -c "mkdir /home/$rke_user/.ssh"
fi
if [ ! -f /home/$rke_user/.ssh/id_rsa ];then
  runuser -l $rke_user -c "ssh-keygen -t rsa -P \"\" -f /home/$rke_user/.ssh/id_rsa"
else
 echo "id_rsa has created ..."
fi

#密钥分发到各个节点
while read line
  do
    ip=`echo $line | cut -d " " -f 1`
    expect <<EOF
      set timeout 30
      spawn su rke
        expect "rke"; send "ssh-copy-id -i /home/$rke_user/.ssh/id_rsa.pub $rke_user@$ip\r"
        expect {
          "yes/no" { send "yes\r";exp_continue }
          "password" { send "123456\r";exp_continue }
          "WARNING" {send "exit\r"}
        }
EOF
  done <  ip.txt

# 创建cluster.yml
path_cluster_yml="/home/$rke_user/cluster.yml"
if [ ! -e $path_cluster_yml ]
then
  cat > $path_cluster_yml << EOF
nodes:
EOF
  while read line
    do
    ip=`echo $line | cut -d " " -f 1`
    cat >> $path_cluster_yml << EOF
  - address: $ip
    internal_address: $ip
    user: $rke_user
    role: [controlplane,worker,etcd]
EOF
  done < ip.txt

  cat >> $path_cluster_yml << EOF
services:
  etcd:
    snapshot: true
    creation: 6h
    retention: 24h
EOF
fi
# 安装rke
if [ -e /usr/bin/rke ]
then
  echo "rke already installed"
else
  wget https://github.com/rancher/rke/releases/download/v1.3.0/rke_linux-amd64
  chmod +x rke_linux-amd64
  mv rke_linux-amd64 /usr/bin/rke
fi
# 安装kubectl
if [ -e /usr/local/bin/kubectl ]
then
  echo "kubectl already installed"
else
  wget http://rancher-mirror.cnrancher.com/kubectl/v1.21.4/linux-amd64-v1.21.4-kubectl
  mv linux-amd64-v1.21.4-kubectl /usr/local/bin/kubectl
  chmod +x /usr/local/bin/kubectl
fi

# 部署集群
runuser -l $rke_user -c "rke up --config /home/$rke_user/cluster.yml"
export KUBECONFIG=/home/$rke_user/kube_config_cluster.yml
echo "cluster nodes:"
kubectl get no

使用方法，登录其中一个节点。

chmod +x ./main.sh
# ip.txt在同一个目录下
./main.sh

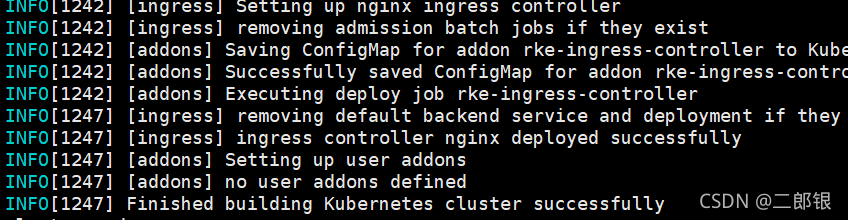

然后等待， 结果：

脚本缺点：

上面的脚本只是简单实现了功能， 并没有深入去写，存在一些问题。 比如：

1. 异常处理并没有怎么做。 如果更进一步改进，可以加ip.txt文件的检查，格式检查，docker等软件是否安装的检查，环境配置检查等。
2. 脚本安装rke的下载链接并不稳定，我没找到国内的rke安装包镜像， 可能下载的很慢。 没有下载成功需要手动下载安装rke。
