linux运维14
一、简述CGI与FASTCGI区别
- CGI模式：当用户访问网站的动态资源时，httpd服务会生成一个子进程处理php语言，处理后再返回内容给用户，在这个过程中，php语言的解释依赖于httpd服务，属于临时进程，php不是单独以守护进程方式运行。
- FASTCGI模式：当用户访问网站的动态资源时，httpd服务会把php语言转发给php守护进程，php进程解释完成后再返回httpd进程，2个进程之间相互独立，互不影响。
二、 编译安装基于fastcgi模式的多虚拟主机的wordpress和discuz的LAMP架构
下载链接：
httpd：httpd下载
apr和apr-utils：apr和apr-tuils下载
mysql：mysql下载
php：php下载
wordpress：wordpress下载
doscuz：discuz下载
- centos 7最小版初始环境配置：
yum install -y wget
systemctl disable firewalld 关闭防火墙
setenforce 0
sed -i 's/SELINUX=enforcing$/SELINUX=disabled/g' /etc/selinux/config 关闭selinux
- httpd编译安装：
yum install -y gcc expat-devel 安装依赖包
cd /root 在目录下载文件
wget http://archive.apache.org/dist/httpd/httpd-2.4.46.tar.gz --no-check-certificate
wget https://dlcdn.apache.org/apr/apr-util-1.6.1.tar.gz --no-check-certificate
wget https://dlcdn.apache.org/apr/apr-1.7.0.tar.gz --no-check-certificate
mkdir /httpd 创建安装目录
#编译apr
cd /root 切回目录
tar xf apr-1.7.0.tar.gz
cd apr-1.7.0
sed -ri 's@\$RM "\$cfgfile"@\# \$RM "\$cfgfile"@g' configure
./configure --prefix=/httpd/apr
make && make install
#编译apr-tuils
cd /root 切回目录
tar xf apr-util-1.6.1.tar.gz
cd apr-util-1.6.1
./configure --prefix=/httpd/apr-util --with-apr=/httpd/apr/
make && make install
#编译httpd
cd /root 切回目录
tar xf httpd-2.4.46.tar.gz
cd httpd-2.4.46
./configure --prefix=/httpd \
--enable-so \
--enable-ssl \
--enable-cgi \
--enable-rewrite \
--with-zlib \
--with-pcre \
--with-apr=/httpd/apr/ \
--with-apr-util=/httpd/apr-util/ \
--enable-modules=most \
--enable-mpms-shared=all \
--with-mpm=event
make && make install
#配置httpd
useradd -s /sbin/nologin -r apache 创建账户
cd /httpd/conf/
sed -ri -e 's/User daemon/User apache/g' -e 's/Group daemon/Group apache/g' httpd.conf 修改运行账户
echo "PATH=/httpd/bin:$PATH" >/etc/profile.d/httpd.sh 创建变量
source /etc/profile.d/httpd.sh
vi /usr/lib/systemd/system/httpd.service 创建httpd的service
[Unit]
Description=The Apache HTTP Server
After=network.target remote-fs.target nss-lookup.target
Documentation=man:httpd(8)
Documentation=man:apachectl(8)
[Service]
Type=forking
ExecStart=/httpd/bin/apachectl start
ExecReload=/httpd/bin/apachectl graceful
ExecStop=/httpd/bin/apachectl stop
KillSignal=SIGCONT
PrivateTmp=true
[Install]
WantedBy=multi-user.target
systemctl daemon-reload
chown apache.apache -R /httpd/
systemctl start httpd
systemctl enable httpd
查看httpd是否安装成功，直接访问对应的网页
curl http://192.168.116.130
- mysql编译安装：
yum -y install libaio numactl-libs
groupadd mysql
useradd -r -g mysql -s /bin/false mysql
cd /root
wget https://cdn.mysql.com/archives/mysql-8.0/mysql-8.0.23-linux-glibc2.12-x86_64.tar.xz
xz -d mysql-8.0.23-linux-glibc2.12-x86_64.tar.xz
tar xf mysql-8.0.23-linux-glibc2.12-x86_64.tar -C /usr/local/
cd /usr/local/
ln -s mysql-8.0.23-linux-glibc2.12-x86_64/ mysql
echo 'PATH=/usr/local/mysql/bin:$PATH' > /etc/profile.d/mysql.sh
source /etc/profile.d/mysql.sh
cp /etc/my.cnf{,.bak}
vi /etc/my.cnf 把文件内容删除，替换为下面
[mysqld]
datadir=/data/mysql
skip_name_resolve=1
socket=/data/mysql/mysql.sock
log-error=/data/mysql/mysql.log
pid-file=/data/mysql/mysql.pid
[client]
socket=/data/mysql/mysql.sock
!includedir /etc/my.cnf.d/
mkdir /data/mysql -p 创建数据库目录
mysqld --initialize-insecure --user=mysql --datadir=/data/mysql 初始化数据
chown -R mysql.mysql /data/mysql/
cp /usr/local/mysql/support-files/mysql.server /etc/init.d/mysqld
service mysqld start 启动mysql
chkconfig --add mysqld 设置开机启动
mysql 确认版本
- 编译安装php
安装阿里yum源，要不然有些依赖包安装不了
cd /etc/yum.repos.d/
wget http://mirrors.aliyun.com/repo/Centos-7.repo
wget http://mirrors.aliyun.com/repo/epel-7.repo
yum -y install gcc libxml2-devel bzip2-devel libmcrypt-devel sqlite-devel oniguruma-devel
cd /root
wget https://www.php.net/distributions/php-7.4.19.tar.gz
tar xf php-7.4.19.tar.gz -C /usr/local/
cd /usr/local/php-7.4.19/
./configure \
--prefix=/php74 \
--enable-mysqlnd \
--with-mysqli=mysqlnd \
--with-pdo-mysql=mysqlnd \
--with-openssl \
--with-zlib \
--with-config-file-path=/etc \
--with-config-file-scan-dir=/etc/php.d \
--enable-mbstring \
--enable-xml \
--enable-sockets \
--enable-fpm \
--enable-maintainer-zts \
--disable-fileinfo
make && make install
在安装目录/usr/local/php-7.4.19/下，不要切回/root
cp php.ini-production /etc/php.ini
cp sapi/fpm/php-fpm.service /usr/lib/systemd/system/ 复制service
echo 'PATH=/php74/bin:$PATH' >/etc/profile.d/php.sh
source /etc/profile.d/php.sh
mv /php74/etc/php-fpm.conf.default /php74/etc/php-fpm.conf
mv /php74/etc/php-fpm.d/www.conf.default /php74/etc/php-fpm.d/www.conf
vi /php74/etc/php-fpm.d/www.conf 修改启动用户，把nobody改为apache
user = apache
group = apache
mkdir /etc/php.d 创建php模块目录，启动php-opcache加速模块
vi /etc/php.d/opcache.ini
[opcache]
zend_extension=opcache.so
opcache.enable=1
chown apache.apache -R /php74/
systemctl daemon-reload
systemctl start php-fpm
ss -tnl 确认端口运行
httpd 80
mysql 3306,33060
php 9000
- httpd配置php连接
mkdir /httpd/conf.d
vi /httpd/conf/httpd.conf 修改配置文件
<IfModule dir_module>
DirectoryIndex index.php
</IfModule>
ServerName 127.0.0.1:80
#把#删了，开启模块支持
LoadModule proxy_module modules/mod_proxy.so
LoadModule proxy_fcgi_module modules/mod_proxy_fcgi.so
#文件底部添加
AddType application/x-httpd-php .php
ProxyRequests Off
IncludeOptional /httpd/conf.d/*.conf
systemctl restart httpd
httpd -M |grep proxy 确认模块开启
wordpress搭建：
数据库配置：
mysql
CREATE DATABASE wordpress;
create user wordpress@'%' identified by 'wordpress';
grant all on wordpress.* to wordpress@'%';
FLUSH PRIVILEGES;
exit
下载wordpress
mkdir /httpd/html
cd /root
wget https://cn.wordpress.org/wordpress-5.7.1-zh_CN.tar.gz
tar xf wordpress-5.7.1-zh_CN.tar.gz -C /httpd/html/
chown apache.apache -R /httpd/html/
httpd配置文件配置
vi /httpd/conf.d/wordpress.conf
<virtualhost *:80>
documentroot /httpd/html
<directory /httpd/html>
require all granted
</directory>
ProxyPassMatch ^/(.*\.php)$ fcgi://127.0.0.1:9000/httpd/html/$1
CustomLog "/httpd/logs/access_wordpress_log" common
</virtualhost>
systemctl restart httpd 重启配置

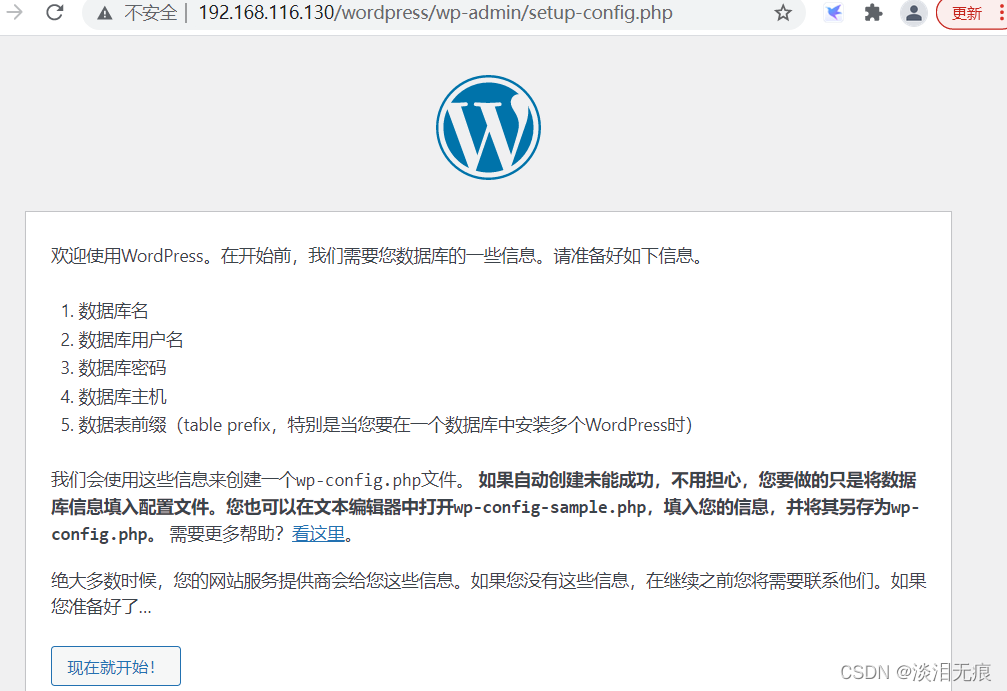

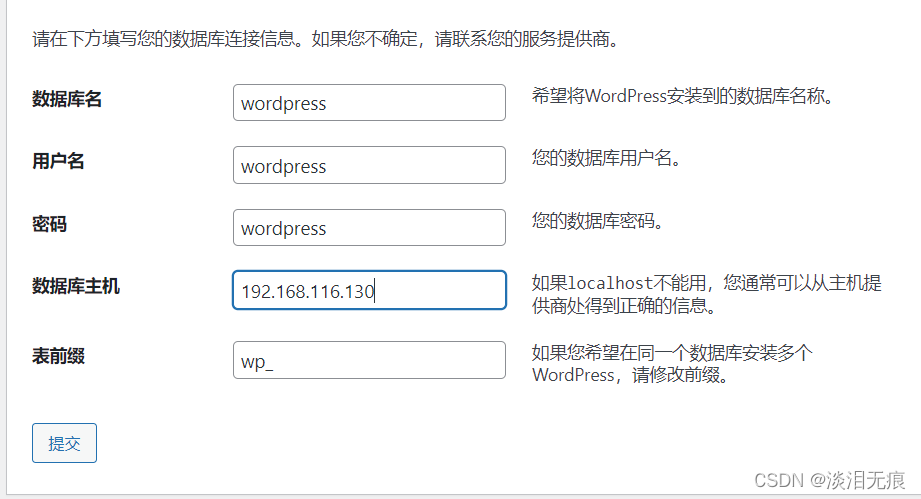

开始安装wordpress
http://192.168.116.130/wordpress/wp-admin/setup-config.php 访问网页

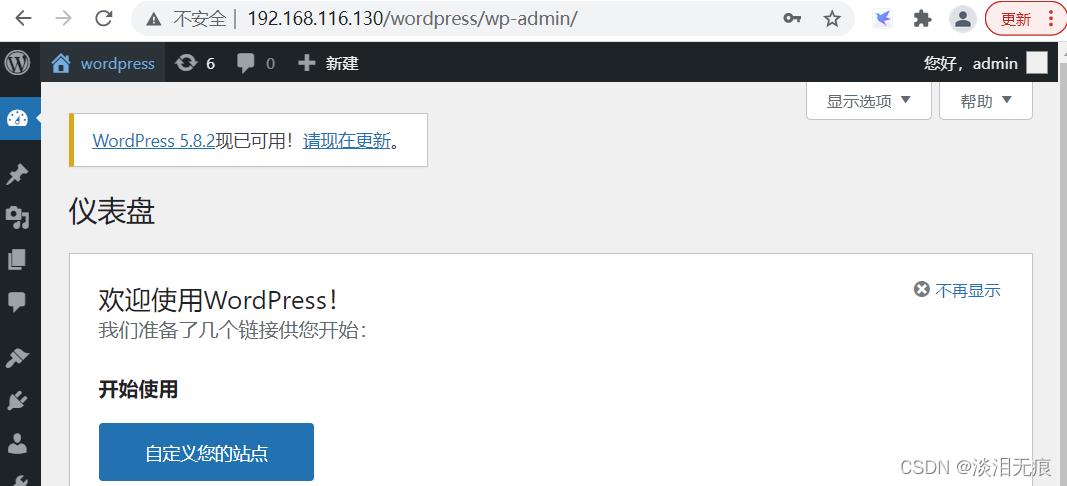

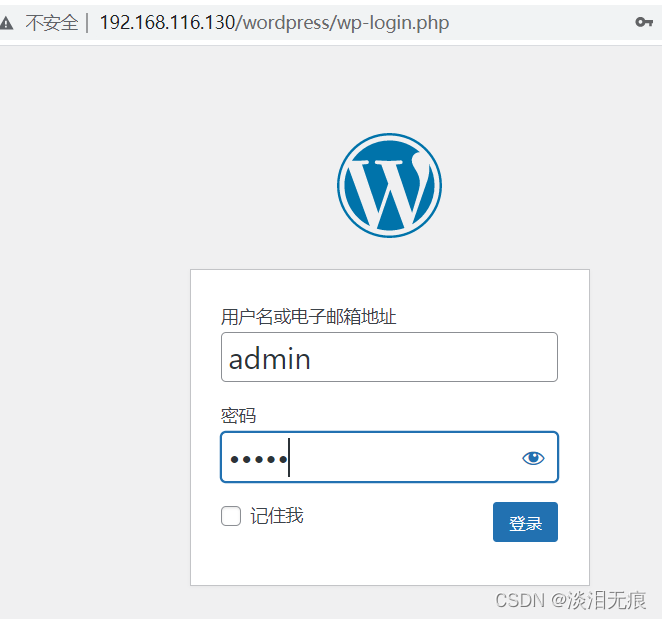

登录后台
http://192.168.116.130/wordpress/wp-login.php

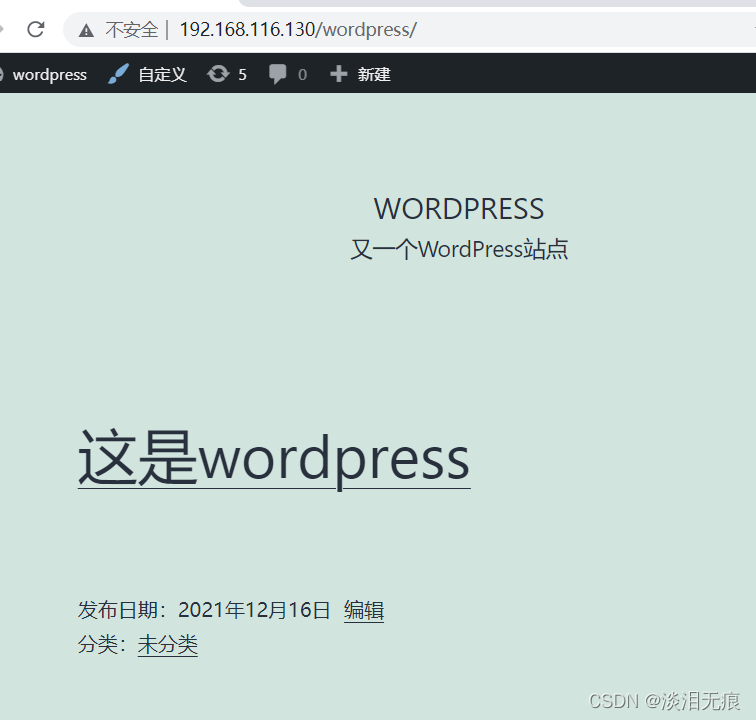

发布文章，测试网站是否能工作
discuz搭建：
数据库配置：
mysql
CREATE DATABASE discuz;
create user discuz@'%' identified by 'discuz';
grant all on discuz.* to discuz@'%';
FLUSH PRIVILEGES;
exit
下载discuz：
cd /root
wget https://www.dismall.com/forum.php?mod=attachment&aid=MTA0fDA3MzUyYzNlfDE2Mzk2MjI1MDZ8MHw3Mw%3D%3D
yum install -y unzip
unzip Discuz_X3.4_SC_UTF8_20211124.zip
mkdir /httpd/html/discuz
cp -ar /root/upload/* /httpd/html/discuz/
chown apache.apache -R /httpd/html/discuz/
discuz的httpd文件配置：
vi /httpd/conf.d/discuz.conf
<virtualhost *:80>
documentroot /httpd/html
<directory /httpd/html>
require all granted
</directory>
ProxyPassMatch ^/(.*\.php)$ fcgi://127.0.0.1:9000/httpd/html/$1
CustomLog "/httpd/logs/access_wordpress_log" common
</virtualhost>
systemctl restart httpd

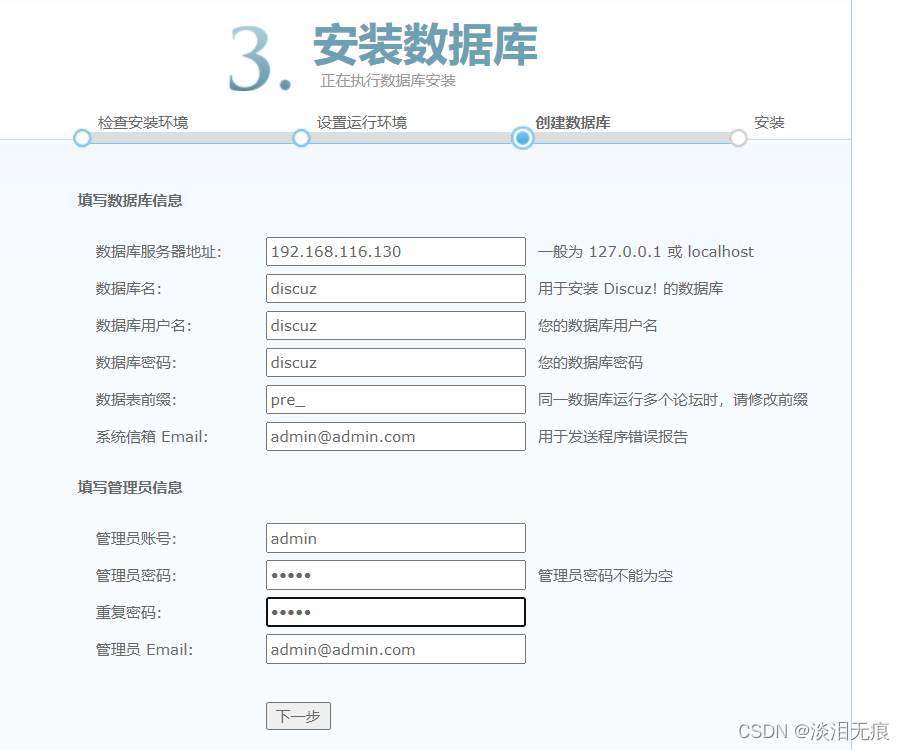

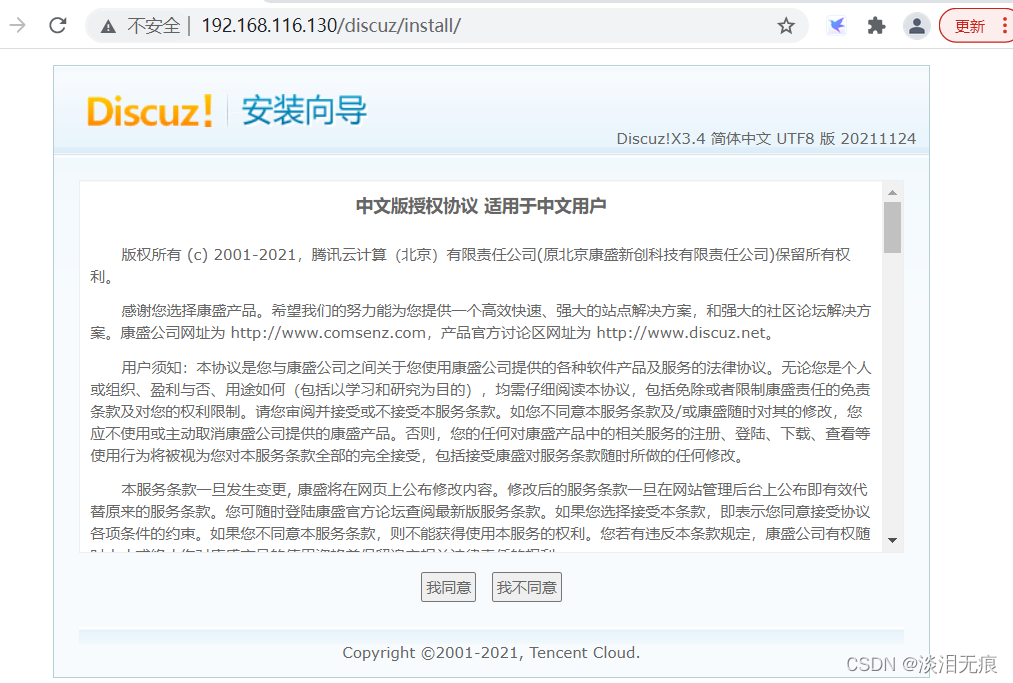

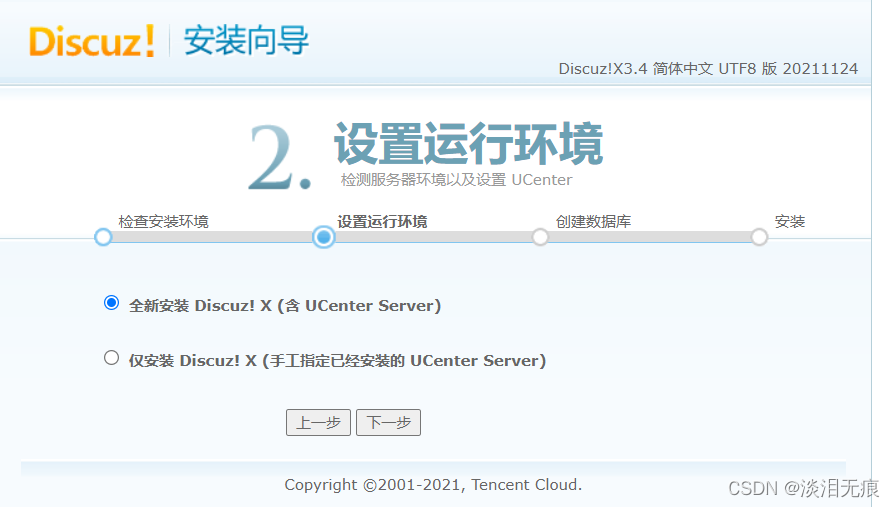

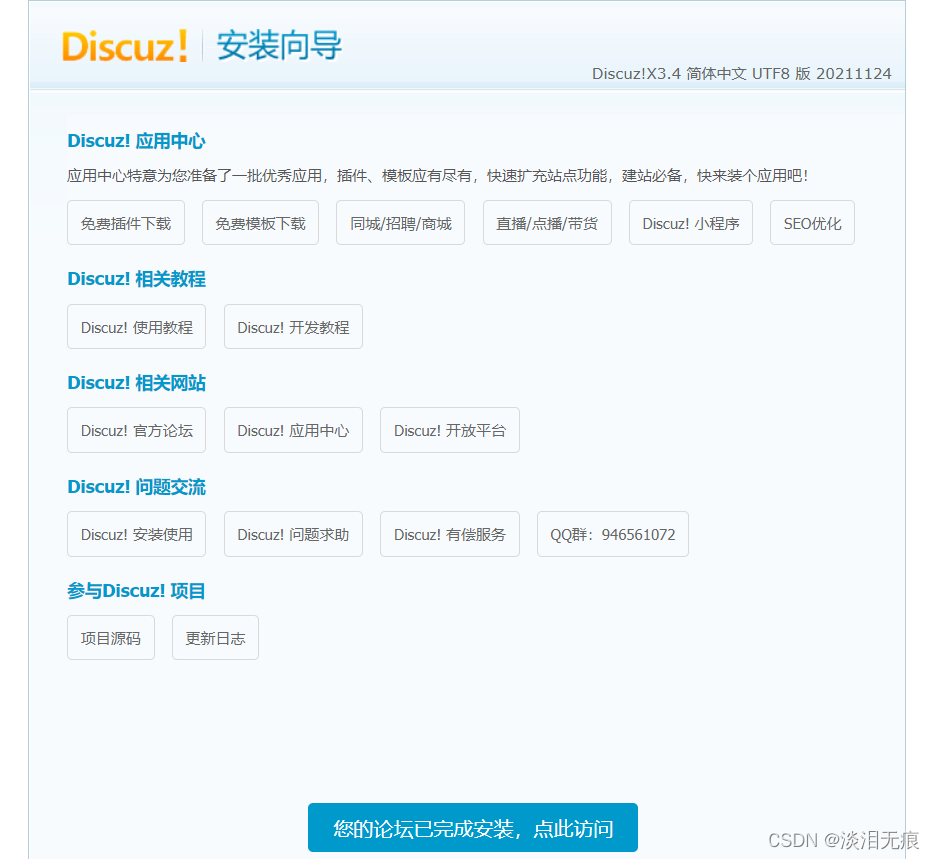

开始安装discuz
http://192.168.116.130/discuz/install/ 访问网站
确认环境都是显示绿色

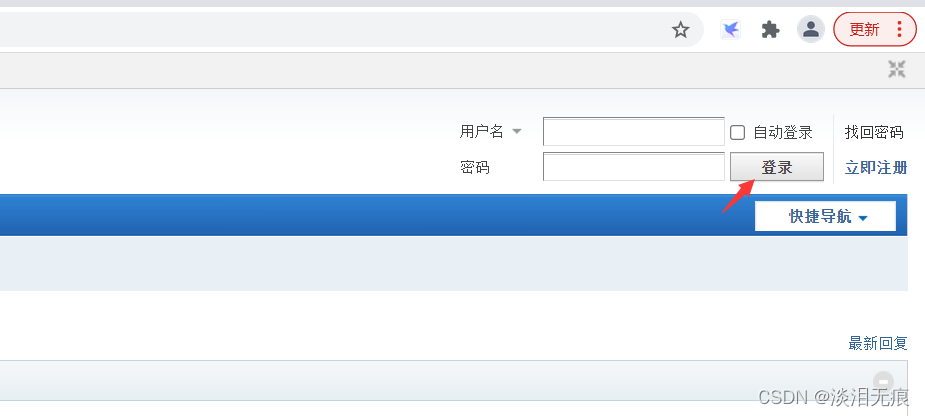

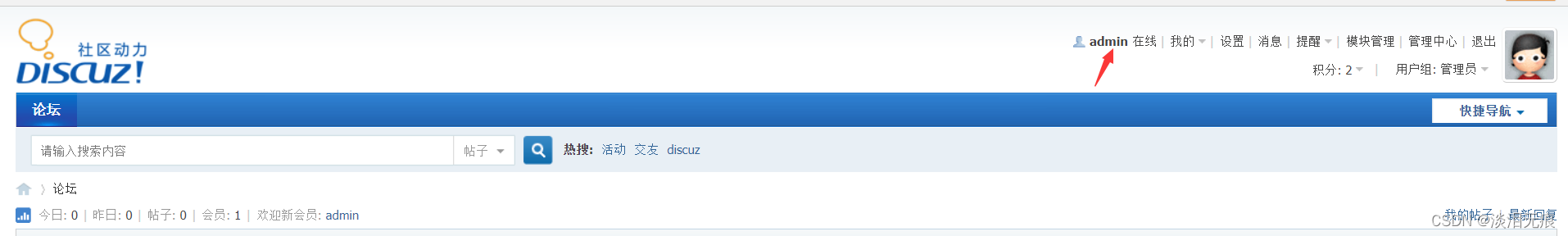

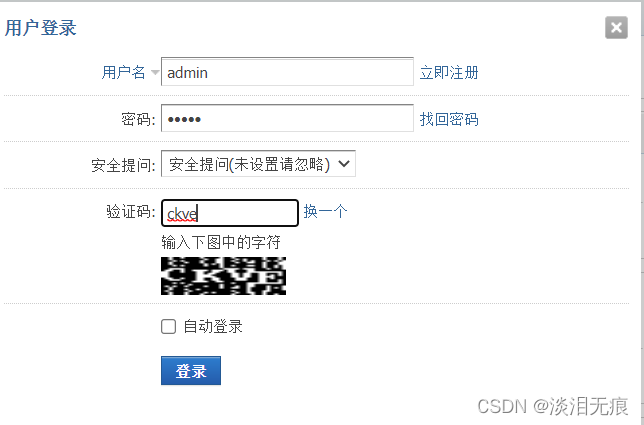

后台登录点这里
三、通过loganalyzer展示数据库中的日志（cgi模式）
yum -y install httpd php php-mysqlnd php-gd mariadb-server rsyslog-mysql
cat /usr/share/doc/rsyslog-8.24.0/mysql-createDB.sql >rsyslog.sql
cat rsyslog.sql 这里定义了rsyslog日志数据库生成方式
systemctl start mariadb 数据库版本要8.0以下，太高不支持
mysql <rsyslog.sql 导入刚才生成的sql语句
mysql 创建账户
create user rsyslog@'%' identified by 'rsyslog';
grant all on Syslog.* to rsyslog@'%';
exit
开启rsyslog日志写入数据库
vi /etc/rsyslog.conf 按照位置添加配置
#### MODULES ####
$ModLoad ommysql
#### RULES ####
*.info;mail.none;authpriv.none;cron.none :ommysql:192.168.116.130,Syslog,rsyslog,rsyslog
systemctl restart rsyslog 重启服务
安装loganalyzer
cd /root
wget https://download.adiscon.com/loganalyzer/loganalyzer-4.1.12.tar.gz --no-check-certificate
tar xf loganalyzer-4.1.12.tar.gz
mv loganalyzer-4.1.12/src/ /var/www/html/log
touch /var/www/html/log/config.php
chmod 666 /var/www/html/log/config.php
chown apache.apache -R /var/www/html/log/
systemctl start httpd 启动服务

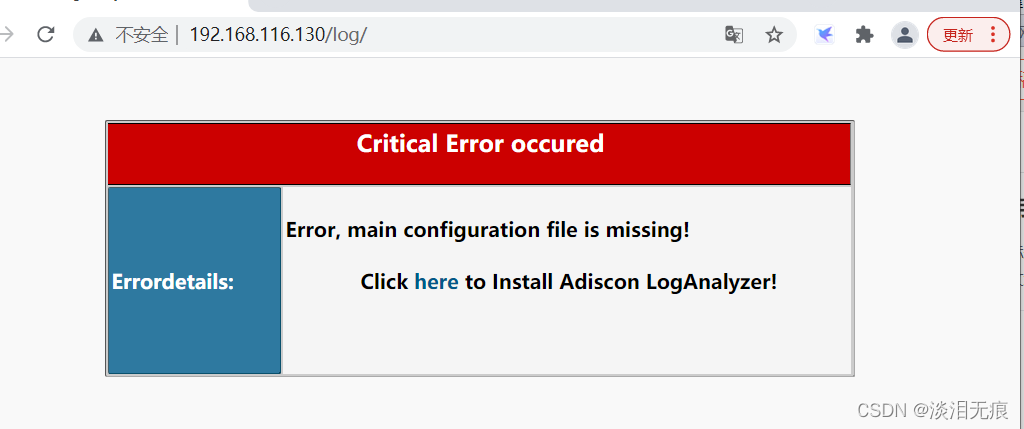

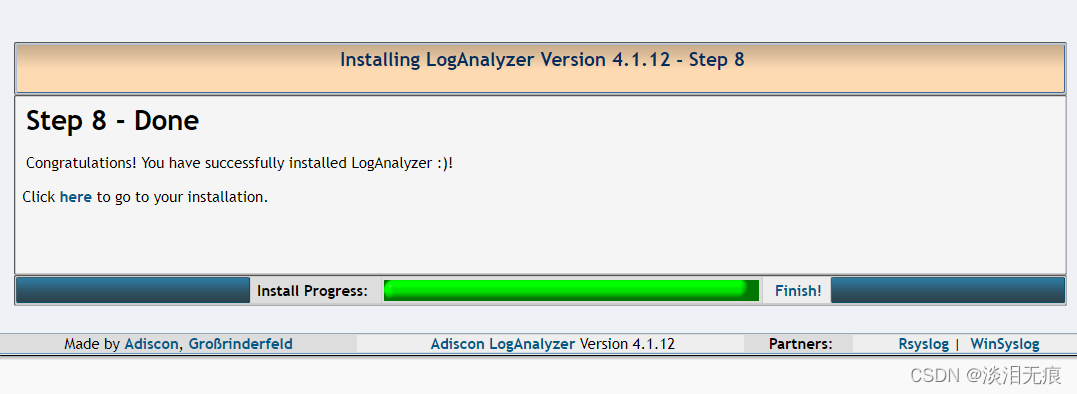

http://192.168.116.130/log/ 开始安装，最好用google或兼容IE的浏览器

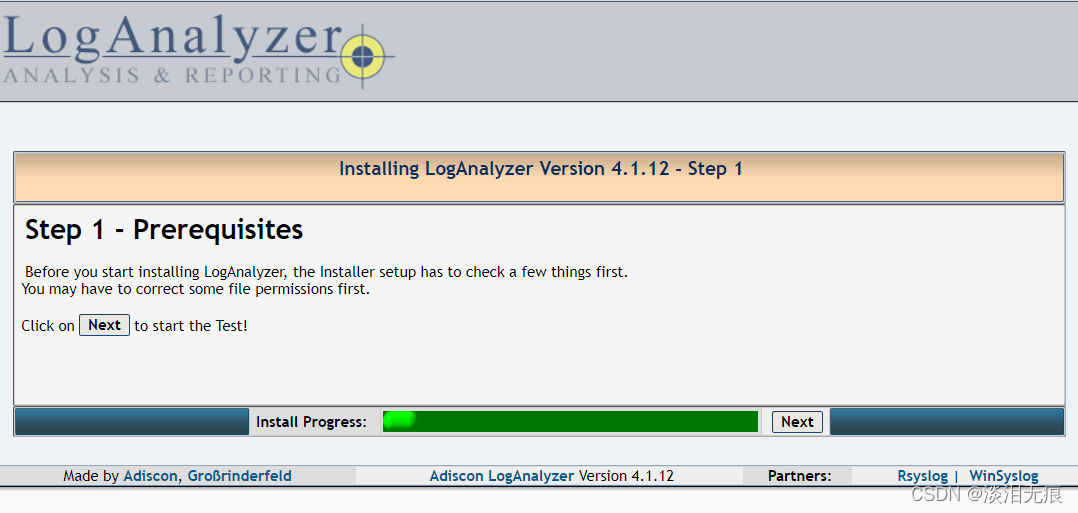

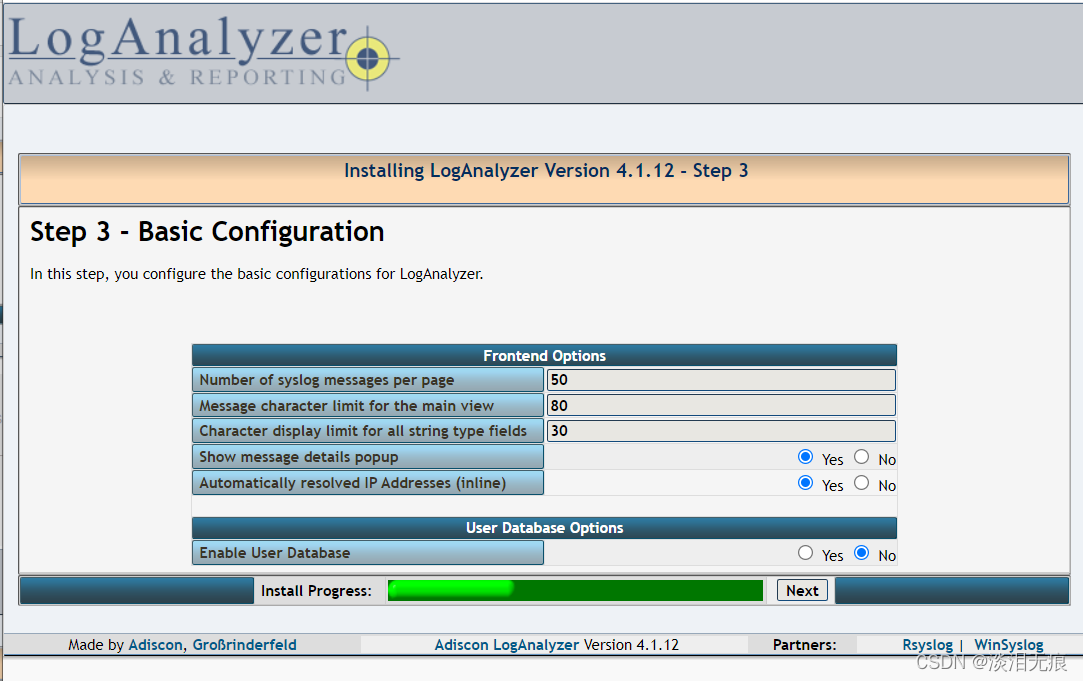

点击here

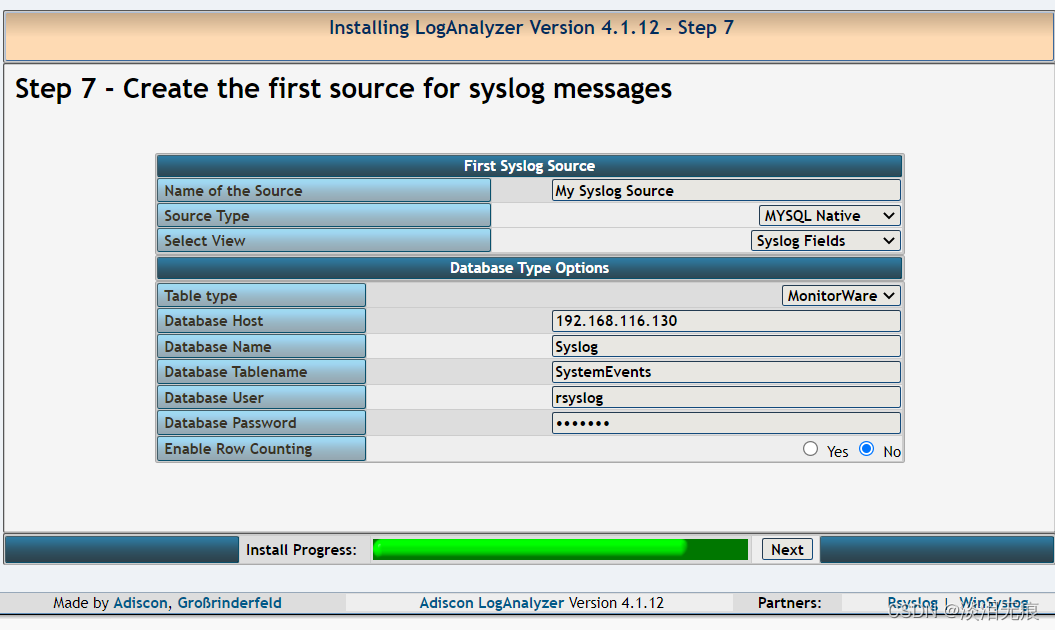

输入数据库名Syslog
输入数据库表SystemEvents
输入数据库账户rsyslog
输入数据库密码rsyslog

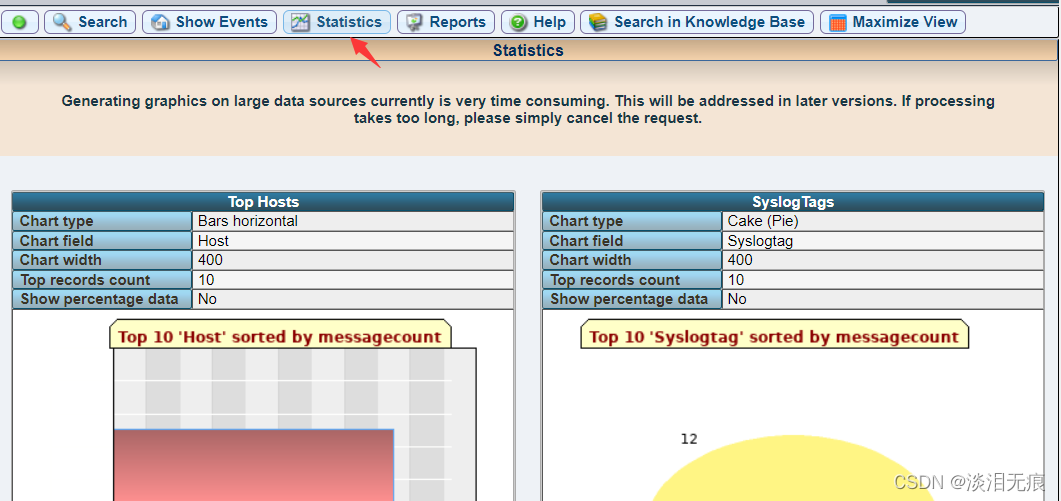

点击这里查看图形化日志
最后记得修改文件权限，这个会导致重新初始化
chown 644 /var/www/html/log/config.php
