以华为的ensp为例

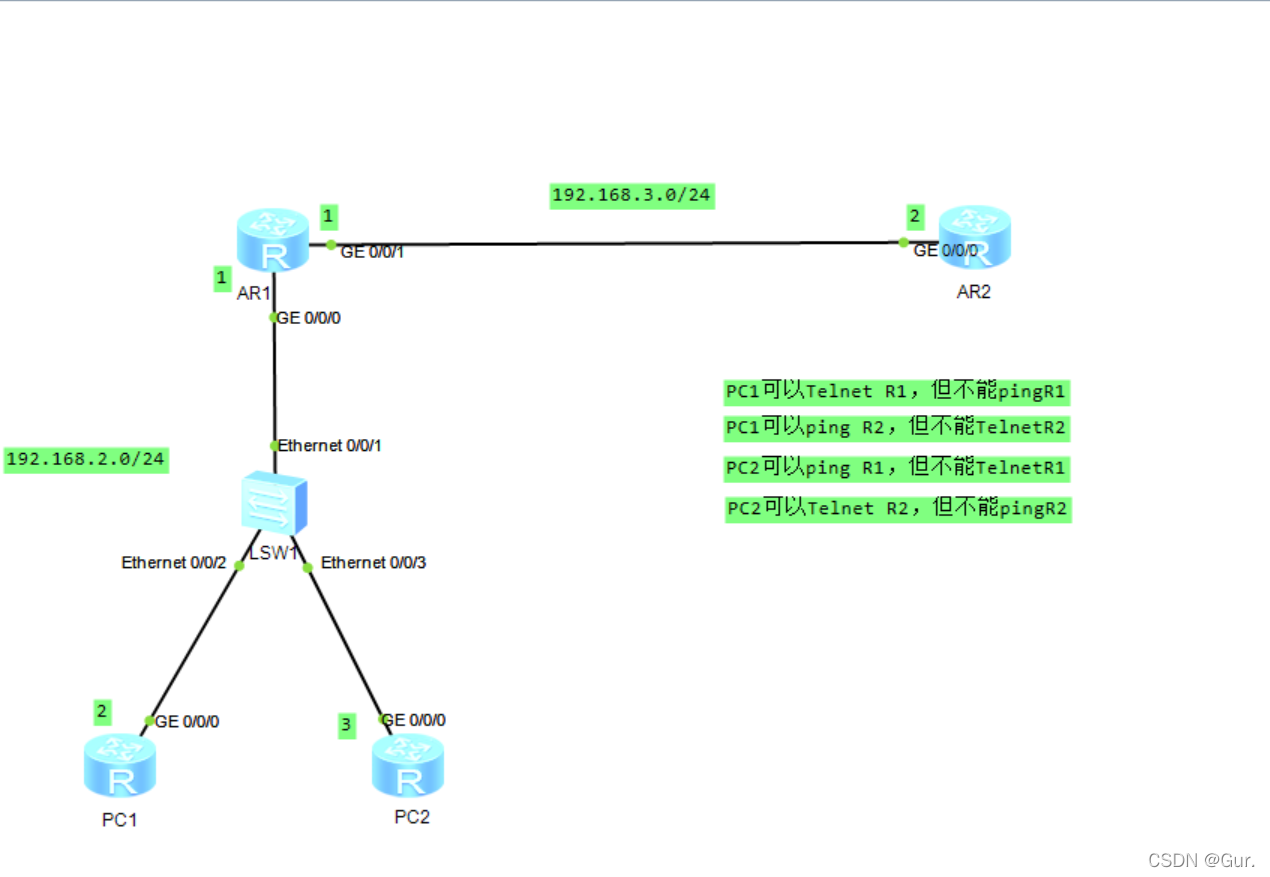

首先进行IP地址的划分
?
?接下来在每个接口上配IP，并且给最下面两个路由器写缺省，下一跳都指向R1的GE0/0/0接口以此来充当两台电脑
[R1]interface GigabitEthernet 0/0/0
[R1-GigabitEthernet0/0/0]ip add 192.168.2.1 24
[R1]interface GigabitEthernet 0/0/1
[R1-GigabitEthernet0/0/1]ip add 192.168.3.1 24
[R2]interface GigabitEthernet 0/0/0
[R2-GigabitEthernet0/0/0]ip add 192.168.3.2 24
[PC1]interface GigabitEthernet 0/0/0
[PC1-GigabitEthernet0/0/0]ip add 192.168.2.2 24
[PC1]ip route-static 0.0.0.0 0 192.168.2.1
[PC2]interface GigabitEthernet 0/0/0
[PC2-GigabitEthernet0/0/0]ip add 192.168.2.3 24
[PC2]ip route-static 0.0.0.0 0 192.168.2.1接下来就是在路由器上写路由表
[R2]ip route-static 192.168.2.0 24 192.168.3.1

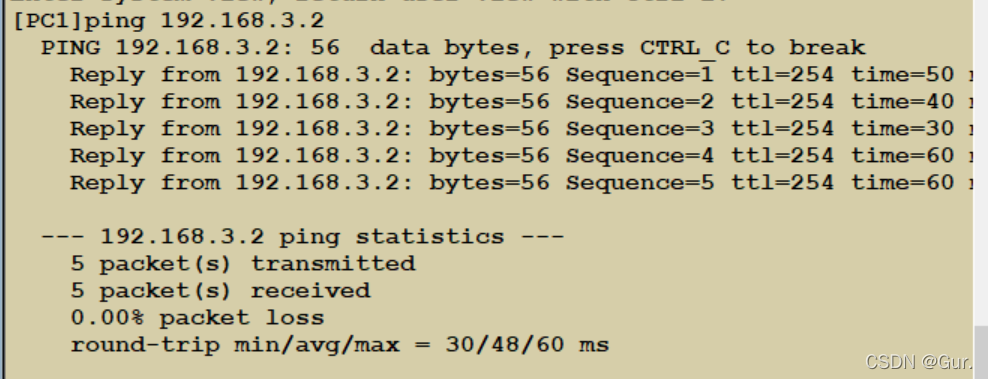

?此时两台电脑都可以ping通
?
但此时题目要求是PC1可以Telnet R1，但不能pingR1，PC1可以ping R2，但不能TelnetR2?，PC2可以ping R1，但不能TelnetR1，PC2可以Telnet R2，但不能pingR2
所以此时先做ping的策略
[R1]acl 3000
[R1-acl-adv-3000]rule deny icmp source 192.168.2.2 0 destination 192.168.2.1 0
[R1-acl-adv-3000]rule deny icmp source 192.168.2.2 0 destination 192.168.3.1 0
[R1-acl-adv-3000]rule deny icmp source 192.168.2.3 0 destination 192.168.3.2 0
[R1-acl-adv-3000]q
[R1]interface GigabitEthernet 0/0/0
[R1-GigabitEthernet0/0/0]traffic-filter inbound acl 3000
[R1]acl 3000
?然后在路由器上开启远程操控接口
[R1]aaa
[R1-aaa]local-user 666 privilege level 15 password cipher 123456
[R1-aaa]local-user 666 service-type telnet
[R1-aaa]q
[R1]user-interface vty 0 4
[R1-ui-vty0-4]authentication-mode aaa
[R2]aaa
[R2-aaa]local-user 666 privilege level 15 password cipher 123456
[R2-aaa]local-user 666 service-type telnet
[R2-aaa]q
[R2]user-interface vty0 4
[R2-ui-vty0-4]authentication-mode aaa
在路由器上根据题目做限制?
[R1-acl-adv-3000]rule deny tcp source 192.168.2.2 0 destination 192.168.3.2 0 de
stination-port eq 23
[R1-acl-adv-3000]rule deny tcp source 192.168.2.3 0 destination 192.168.2.1 0 de
stination-port eq 23
[R1-acl-adv-3000]rule deny tcp source 192.168.2.3 0 destination 192.168.3.1 0 de
stination-port eq 23?查看R1的0/0/0接口上的表
[R1]display acl 3000
Advanced ACL 3000, 6 rules
Acl's step is 5
rule 5 deny icmp source 192.168.2.2 0 destination 192.168.2.1 0
rule 10 deny icmp source 192.168.2.2 0 destination 192.168.3.1 0
rule 15 deny icmp source 192.168.2.3 0 destination 192.168.3.2 0
rule 20 deny tcp source 192.168.2.2 0 destination 192.168.3.2 0 destination-port
eq telnet
rule 25 deny tcp source 192.168.2.3 0 destination 192.168.2.1 0 destination-port
eq telnet (2 matches)
rule 30 deny tcp source 192.168.2.3 0 destination 192.168.3.1 0 destination-port
eq telnet

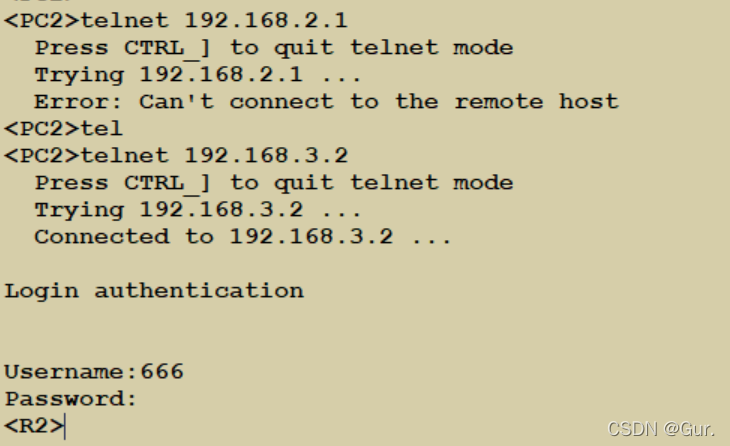

最后可以看到完全满足要求?
?
?
?
?
