1. 源码编译安装haproxy 2.x，配置服务启动脚本。
安装
1）、下载安装包
[root@localhost ~]# wget -c https://repo.huaweicloud.com/haproxy/2.4/src/haproxy-2.4.8.tar.gz
[root@localhost ~]# ls haproxy-2.4.8.tar.gz
haproxy-2.4.8.tar.gz
2）、安装依赖
[root@localhost ~]# curl -R -O http://www.lua.org/ftp/lua-5.4.3.tar.gz
[root@localhost ~]# yum install gcc gcc-c++ make -y3）、解压lua
[root@localhost ~]# tar xf lua-5.4.3.tar.gz -C /usr/local/src/
[root@localhost ~]# cd /usr/local/src/lua-5.4.3/
4)、编译安装lua
[root@localhost lua-5.4.3]# make linux test
[root@localhost lua-5.4.3]# cp src/lua /usr/bin/lua
[root@localhost lua-5.4.3]# lua -v
Lua 5.4.3 Copyright (C) 1994-2021 Lua.org, PUC-Rio5）、解压haproxy
[root@localhost ~]# tar xf haproxy-2.4.8.tar.gz -C /usr/local/src/
[root@localhost ~]# cd /usr/local/src/haproxy-2.4.8/
6）、安装依赖
[root@localhost haproxy-2.4.8]# yum -y install gcc openssl-devel pcre-devel systemd-devel7）、编译安装
[root@localhost haproxy-2.4.8]# make ARCH=x86_64 TARGET=linux-glibc USE_PCRE=1 USE_OPENSSL=1 USE_ZLIB=1 USE_SYSTEMD=1 USE_LUA=1 LUA_INC=/usr/local/src/lua-5.4.3/src/ LUA_LIB=/usr/local/src/lua-5.4.3/src/
[root@localhost haproxy-2.4.8]# make install PREFIX=/usr/local/src/haproxy
查看目录结构
[root@localhost haproxy-2.4.8]# tree /usr/local/haproxy/
/usr/local/haproxy/
├── doc
│?? └── haproxy
│?? ├── 51Degrees-device-detection.txt
│?? ├── architecture.txt
│?? ├── close-options.txt
│?? ├── configuration.txt
│?? ├── cookie-options.txt
│?? ├── DeviceAtlas-device-detection.txt
│?? ├── intro.txt
│?? ├── linux-syn-cookies.txt
│?? ├── lua.txt
│?? ├── management.txt
│?? ├── netscaler-client-ip-insertion-protocol.txt
│?? ├── network-namespaces.txt
│?? ├── peers.txt
│?? ├── peers-v2.0.txt
│?? ├── proxy-protocol.txt
│?? ├── regression-testing.txt
│?? ├── seamless_reload.txt
│?? ├── SOCKS4.protocol.txt
│?? ├── SPOE.txt
│?? └── WURFL-device-detection.txt
├── sbin
│?? └── haproxy
└── share
└── man
└── man1
└── haproxy.1
?8）、设置软链接
[root@localhost haproxy-2.4.8]# ln -sv /usr/local/haproxy/sbin/haproxy /usr/sbin/haproxy
?验证版本
[root@localhost haproxy-2.4.8]# haproxy -v
HAProxy version 2.4.8-d1f8d41 2021/11/03 - https://haproxy.org/
Status: long-term supported branch - will stop receiving fixes around Q2 2026.
Known bugs: http://www.haproxy.org/bugs/bugs-2.4.8.html
Running on: Linux 3.10.0-1160.el7.x86_64 #1 SMP Mon Oct 19 16:18:59 UTC 2020 x86_64
?配置服务脚本
?1）、编写服务脚本
[root@localhost ~]# vim /usr/lib/systemd/system/haproxy.service
[root@localhost ~]# more /usr/lib/systemd/system/haproxy.service
[Unit]
Description=HAProxy Load Balancer
After=syslog.target network.target
[Service]
ExecStartPre=/usr/sbin/haproxy -f /etc/haproxy/haproxy.cfg -c -q
ExecStart=/usr/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg -p /usr/local/haproxy/haproxy.pid
ExecReload=/bin/kill -USR2 $MAINPID
[Install]
WantedBy=multi-user.target
?2）、创建配置文件
[root@localhost ~]# more /etc/haproxy/haproxy.cfg
global
maxconn 10000
stats socket /var/run/haproxy.stat mode 600 level admin
log 127.0.0.1 local0
#uid 200
#gid 200
user haproxy
group haproxy
chroot /usr/local/haproxy
daemon
defaults
mode http
option httplog
log global
timeout client 1m
timeout server 1m
timeout connect 10s
timeout http-keep-alive 2m
timeout queue 15s
timeout tunnel 4h # for websocket
listen stats
mode http
bind :9999
stats enable
log global
stats uri /haproxy-status
stats auth haadmin:123456 //账号密码
listen app1
# this is the address and port we'll listen to, the ones to aim the
# load generators at
bind :80
# create a certificate and uncomment this for SSL
# bind :8443 ssl crt my-cert.pem alpn h2,http/1.1
# Put the server's IP address and port below
server web1 192.168.159.136:80
server web2 192.168.159.138:80
3）、创建用户
[root@localhost ~]# useradd -r -s /sbin/nologin -d /usr/local/haproxy/ haproxy
4）、配置两台web服务，配置静态页面
[root@rs1 ~]# more /var/www/html/index.html
web1 test ip:192.168.159.136
[root@rs2 ~]# more /var/www/html/index.html
web2 test2 ip:192.168.159.138
新开一台虚拟机测试：
[root@localhost ~]# for ((i=1;i<=6;i++))
> do
> curl 192.168.159.133
> done
web2 test2 ip:192.168.159.138
web1 test ip:192.168.159.136
web2 test2 ip:192.168.159.138
web1 test ip:192.168.159.136
web2 test2 ip:192.168.159.138
web1 test ip:192.168.159.136

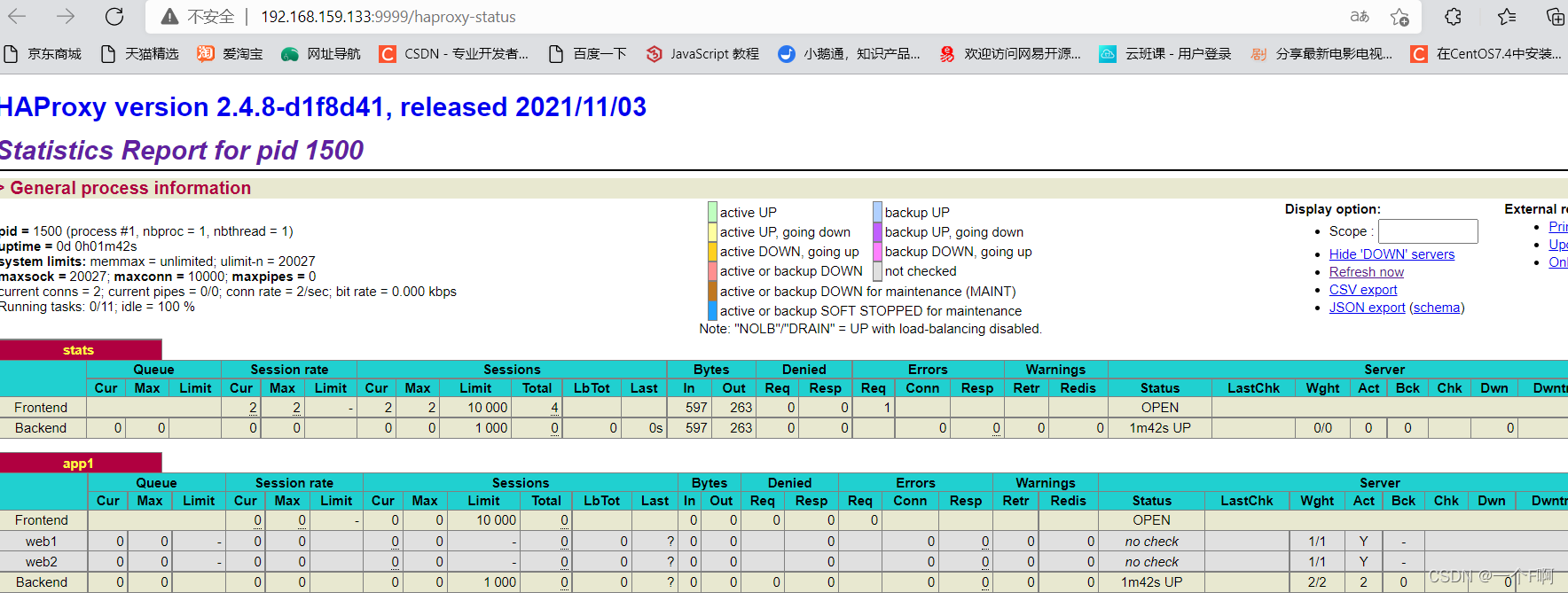

查看haproxy的状态页
账号密码为配置文件中的
账号：haadmin
密码：123456
2. 配置haproxy日志。
1）、 修改配置文件
[root@localhost ~]# vim /etc/haproxy/haproxy.cfg
global
log 127.0.0.1 local2 info
listen app1
log global?2）、rsyslog配置
[root@localhost ~]# vim /etc/rsyslog.conf
#打开这两行注释
$ModLoad imudp
$UDPServerRun 514
#追加
# Save haproxy messages also to haproxy.log
local2.* /var/log/haproxy.log4）、重启服务
[root@localhost ~]# systemctl restart haproxy.service rsyslog5）、查看日志
[root@localhost ~]# tail -f /var/log/haproxy.log
Jan 12 20:55:27 localhost haproxy[1500]: 192.168.159.1:60108 [12/Jan/2022:20:55:27.655] stats stats/<STATS> 0/-1/-1/-1/0 401 263 - - LR-- 2/2/0/0/3 0/0 "GET /haproxy-status HTTP/1.1"
Jan 12 20:55:28 localhost haproxy[1500]: 192.168.159.1:60109 [12/Jan/2022:20:55:27.632] stats stats/<NOSRV> -1/-1/-1/-1/574 400 0 - - CR-- 2/2/0/0/0 0/0 "<BADREQ>"
Jan 12 20:56:25 localhost haproxy[1500]: 192.168.159.1:60130 [12/Jan/2022:20:56:25.386] stats stats/<STATS> 0/0/0/0/0 200 20172 - - LR-- 2/2/0/0/0 0/0 "GET /haproxy-status HTTP/1.1"
Jan 12 20:56:28 localhost haproxy[1500]: 192.168.159.1:60131 [12/Jan/2022:20:56:25.383] stats stats/<NOSRV> -1/-1/-1/-1/2847 400 0 - - CR-- 2/2/0/0/0 0/0 "<BADREQ>"
3. 配置haproxy实现web服务器负载均衡。
1）、对
MySQL
服务实现四层负载
[root@localhost ~]# vim /etc/haproxy/haproxy.cfg
frontend mysql
bind :3306
mode tcp #必须指定tcp模式
default_backend mysqlsrvs
backend mysqlsrvs
mode tcp #必须指定tcp模式
balance leastconn
server mysql1 192.168.159.136:3306
server mysql2 192.168.159.138:3306
[root@localhost ~]# systemctl restart haproxy
2）、?准备两台虚拟机安装和配置mariadb
[root@rs1 ~]# yum install mariadb-server -y
[root@rs2 ~]# yum install mariadb-server -y
?3）、两台虚拟机给MySQL创建用户并授权
mysql> create user 'tom'@'%' identified by '123456';
mysql> grant all on *.* to tom@'%';
4）、修改server id?
[root@rs1 ~]# vim /etc/my.cnf
[mysqld]
server_id = 136
[root@rs2 ~]# vim /etc/my.cnf
[mysqld]
server_id = 1385、重启mariadb
[root@rs1 ~]# systemctl start mariadb
[root@rs2 ~]# systemctl start mariadb
4. 通过haproxy的acl规则实现智能负载均衡（动静分离）。
基于文件后名缀实现动静分离
1）、设置acl
[root@localhost ~]# vim /etc/haproxy/conf.d/test.cfg
[root@localhost ~]# cat /etc/haproxy/conf.d/test.cfg
frontend openlab_http_port
bind 10.0.0.7:80
mode http
balance roundrobin
log global
option httplog
###################### acl setting ###############################
acl acl_static path_end -i .jpg .jpeg .png .gif .css .js
###################### acl setting ###############################
acl acl_static path_end -i .jpg .jpeg .png .gif .css .js
acl dynamic path_end -i .php
###################### acl hosts #################################
use_backend static_pools if acl_static
use_backend dynamic_pools if dynamic
###################### backend hosts #############################
backend static_pools
mode http
server web1 192.168.159.136:80 check
backend dynamic_pools
mode http
server web2 192.168.159.138:80 check
?准备两台虚拟机
一台实现静态，一台实现动态
2）、下载服务
[root@rs1 ~]# yum install httpd -y
[root@rs2 ~]# yum install php -y
3）、动态端配置php
[root@rs2 ~]# vim /var/www/html/test.php
[root@rs2 ~]# cat /var/www/html/test.php
<?php
phpinfo()
?>
[root@rs2 ~]# systemctl restart httpd4）、静态端配置
准备主页和文件
[root@rs1 ~]# cd /var/www/html/
[root@rs1 html]# ls
bjx.jpg index.html
5)、重启haproxy
[root@localhost ~]# systemctl restart haproxy
测试

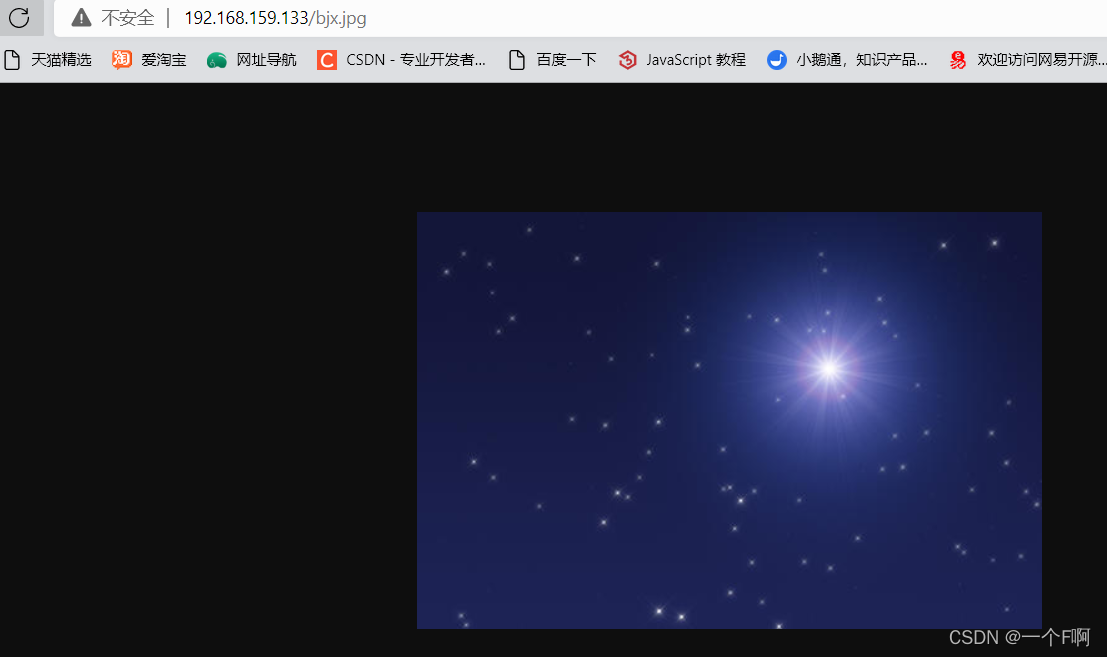

静态
动态?
?
?
