[系统运维]Ubuntu16.04搭建和运行DSO

DSO的GitHub链接：https://github.com/JakobEngel/dso

本博客基于VMware搭建的Ubuntu16.04实现DSO

1. 克隆DSO

sudo apt install git

git clone https://github.com/JakobEngel/dso.git

2. 搭配环境

eigen3

sudo apt install libsuitesparse-dev libeigen3-dev libboost-all-dev

opencv

sudo apt install libopencv-dev

Pangolin

github：https://github.com/stevenlovegrove/Pangolin

1. 克隆

git clone https://github.com/stevenlovegrove/Pangolin.git

2. 安装Pangolin需要的依赖项：

tar -zxvf Pangolin.tar.gz

3. 编译和安装Pangolin

cd [path-to-pangolin]
mkdir build
cd build
cmake ..
make
sudo make install

ziplib

sudo apt-get install zlib1g-dev
cd dso/thirdparty
tar -zxvf libzip-1.1.1.tar.gz
cd libzip-1.1.1/
./configure
make
sudo make install
sudo cp lib/zipconf.h /usr/local/include/zipconf.h   # (no idea why that is needed).

3. 编译DSO

	cd dso
	mkdir build
	cd build
	cmake ..
	make -j4

4. make可能出现的错误

错误一

virtual memory exhausted: 无法分配内存
CMakeFiles/dso.dir/build.make:62: recipe for target 'CMakeFiles/dso.dir/src/FullSystem/FullSystem.cpp.o' failed
make[2]: *** [CMakeFiles/dso.dir/src/FullSystem/FullSystem.cpp.o] Error 1
make[2]: *** 正在等待未完成的任务....
CMakeFiles/Makefile2:104: recipe for target 'CMakeFiles/dso.dir/all' failed
make[1]: *** [CMakeFiles/dso.dir/all] Error 2
Makefile:83: recipe for target 'all' failed
make: *** [all] Error 2

解决方法：
将make -j4该低点 ，改成make -j2

错误二

[ 96%] Linking CXX executable bin/dso_dataset
/usr/bin/ld: CMakeFiles/dso_dataset.dir/src/main_dso_pangolin.cpp.o: undefined reference to symbol 'pthread_create@@GLIBC_2.2.5'
//lib/x86_64-linux-gnu/libpthread.so.0: error adding symbols: DSO missing from command line
collect2: error: ld returned 1 exit status
CMakeFiles/dso_dataset.dir/build.make:129: recipe for target 'bin/dso_dataset' failed
make[2]: *** [bin/dso_dataset] Error 1
CMakeFiles/Makefile2:67: recipe for target 'CMakeFiles/dso_dataset.dir/all' failed
make[1]: *** [CMakeFiles/dso_dataset.dir/all] Error 2
Makefile:83: recipe for target 'all' failed
make: *** [all] Error 2

解决方法：
参考博客：https://blog.csdn.net/qq_17232031/article/details/79540286
修改CMakeLists.txt有关于Thread，首先在CMakeLists.txt中添加一条：

FIND_PACKAGE(Threads QUIET)

然后将：

if (OpenCV_FOUND AND Pangolin_FOUND)
  	message("--- compiling dso_dataset.")
  	add_executable(dso_dataset ${PROJECT_SOURCE_DIR}/src/main_dso_pangolin.cpp )
   target_link_libraries(dso_dataset dso boost_system boost_thread cxsparse ${LIBZIP_LIBRARY} ${Pangolin_LIBRARIES} ${OpenCV_LIBS} )
else()
  	message("--- not building dso_dataset, since either don't have openCV or Pangolin.")
endif()

改为：

if (OpenCV_FOUND AND Pangolin_FOUND)
  	message("--- compiling dso_dataset.")
  	add_executable(dso_dataset ${PROJECT_SOURCE_DIR}/src/main_dso_pangolin.cpp )
    target_link_libraries(dso_dataset dso boost_system boost_thread cxsparse ${LIBZIP_LIBRARY} ${Pangolin_LIBRARIES} ${OpenCV_LIBS} ${CMAKE_THREAD_LIBS_INIT})
else()
  	message("--- not building dso_dataset, since either don't have openCV or Pangolin.")
endif()

然后重新编译：

cmake ..
make -j2

5. 运行数据集

数据来源：https://vision.in.tum.de/data/datasets/mono-dataset?redirect=1

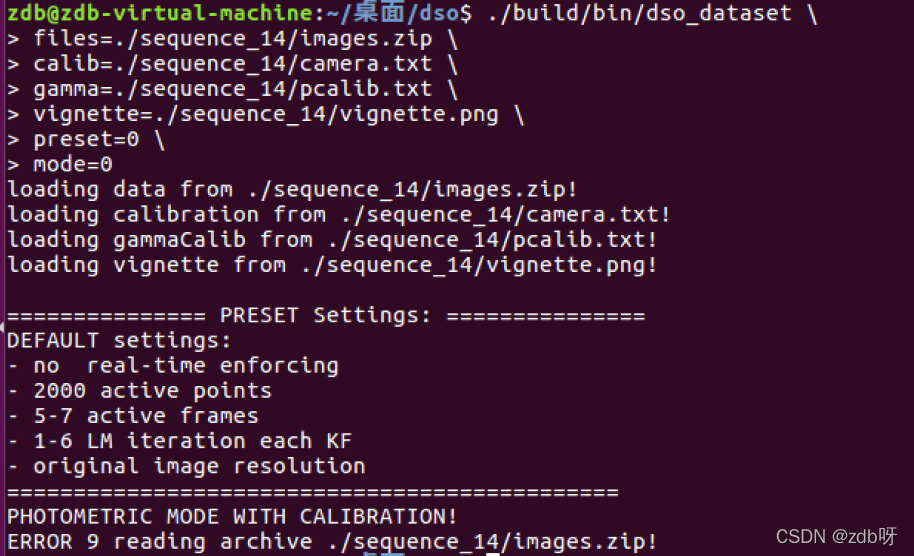

输入以下内容；但是导致了报错

原因：没有解压


所以我们先加压一下；解压suquence_14和里面的images，并删除压缩文件
输入：

./dso_dataset files=./sequence_14/images calib=./sequence_14/camera.txt gamma=./sequence_14/pcalib.txt vignette=./sequence_14/vignette.png preset=0 mode=0

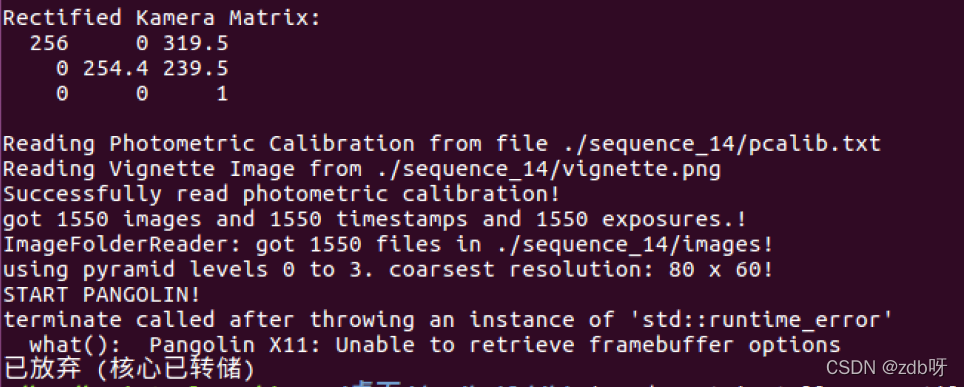

又报了以下错误：

原因：Pangolin没有装好；重新安装Pangolin；参考https://blog.csdn.net/qq_39236499/article/details/122722038里面的Pangolin报错解决方法，两个是一模一样的错误

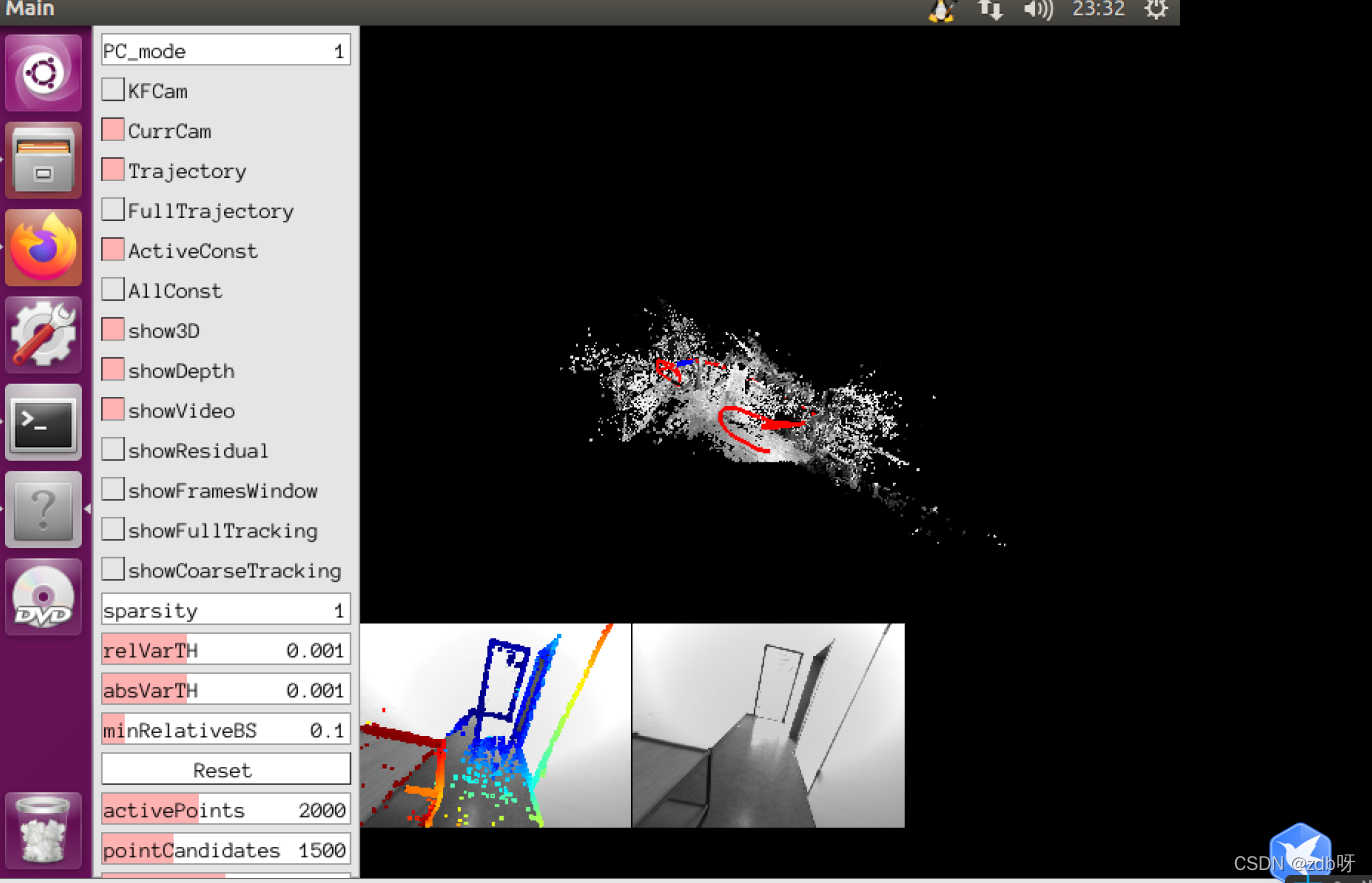

再次输入上面指令！成功！！！

参考博客

https://blog.csdn.net/qq_17232031/article/details/79540286
https://blog.csdn.net/qq_37568167/article/details/106384458
https://blog.csdn.net/qq_39236499/article/details/109010081
