[系统运维]centos7 docker elk

来源1

1 docker elk 搭建

1.1 elk拉取

docker pull sebp/elk

1.2 加大max_map_count

vi /etc/sysctl.conf

--增加
vm.max_map_count=655360
--保存

--退出执行
sysctl -p

1.3 启动

docker run --name elk -d -e LOGSTASH_START=0 -e ES_HEAP_SIZE="1g" -p 5601:5601 -p 9200:9200 -p 5044:5044 sebp/elk

1.4 查看kibana页面

127.0.0.1:5601

2 logstash 配置

docker exec -it 【容器id】 bash
cd /opt/logstash
mkdir conf.d
//创建配置文件
vim ./conf.d/logstash.conf

2.1 logstash file input 配置

快速上手

input{
    file{
        path => "/opt/logs/web-info-2021-11-25.0.log"
    }

}

模版

input{
    file{
        #path属性接受的参数是一个数组，其含义是标明需要读取的文件位置
        path => [‘pathA’，‘pathB’]
        #表示多就去path路径下查看是够有新的文件产生。默认是15秒检查一次。
        discover_interval => 15
        #排除那些文件，也就是不去读取那些文件
        exclude => [‘fileName1’,‘fileNmae2’]
        #被监听的文件多久没更新后断开连接不在监听，默认是一个小时。
        close_older => 3600
        #在每次检查文件列 表的时候， 如果一个文件的最后 修改时间 超过这个值， 就忽略这个文件。 默认一天。
        ignore_older => 86400
        #logstash 每隔多 久检查一次被监听文件状态（ 是否有更新） ， 默认是 1 秒。
        stat_interval => 1
        #sincedb记录数据上一次的读取位置的一个index
        sincedb_path => ’$HOME/. sincedb‘
        #logstash 从什么 位置开始读取文件数据， 默认是结束位置 也可以设置为：beginning 从头开始
        start_position => ‘beginning’
        #注意：这里需要提醒大家的是，如果你需要每次都从同开始读取文件的话，关设置start_position => beginning是没有用的，你可以选择sincedb_path 定义为 /dev/null
    }

}

2.1 logstash jdbc input 配置

input {
  jdbc {
    jdbc_driver_library => "/opt/logstash/conf.d/db2jcc4-4.23.42.jar"
    jdbc_driver_class => "com.ibm.db2.jcc.DB2Driver"
    jdbc_connection_string => "jdbc:db2://10.20.40.40:50000/P962_BW:currentSchema=DURP_CONFIG;"
    jdbc_user => "db2inst1"
    jdbc_password => "db2inst1"
    statement => "select user_log_id, user_log_time, user_log_user_id, user_log_user_name, user_log_module, user_log_opt_result from RECEIVE_USER_LOG where user_log_time > :sql_last_value order by USER_LOG_TIME"
    schedule => "* * * * *"
    type => "jdbc"

    use_column_value => true
    tracking_column => user_log_time
    tracking_column_type => "timestamp"
    record_last_run => true
    last_run_metadata_path => "/opt/logstash/conf.d/track_time.txt"
    clean_run => false
    jdbc_paging_enabled => true
    jdbc_page_size => 1000

  }
}
filter {
}
output {
  stdout {
    codec => json_lines
  }
  elasticsearch {
    hosts => ["http://localhost:9200"]
    index => "logstash-userlog-%{+YYYY.MM.dd}"
  }
}

jdbc_driver_library：db2的jar地址

2.2 保存退出，启动logstash

./bin/logstash -f ./conf.d/userlog.conf

多input output 例子

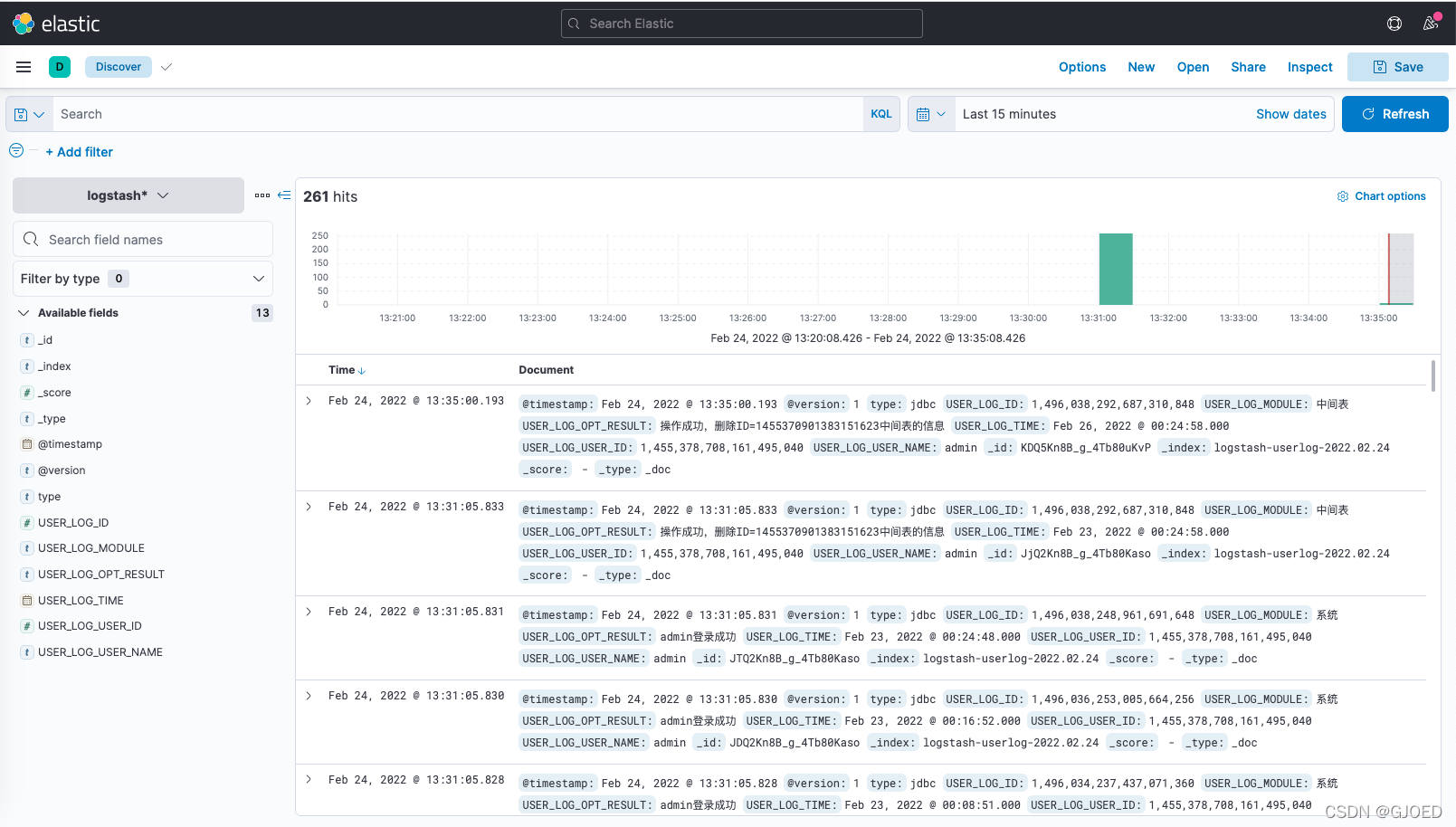

3 查看kibana dicover

首先需要进入index manager创建索引

4 springboot集成es

4.1 pom.xml

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-elasticsearch</artifactId>
</dependency>

4.2 application.xml

spring:
  elasticsearch:
    rest:
      uris: 10.211.55.4:9200

4.3 api

@Autowired
    private RestHighLevelClient restHighLevelClient;

    @Override
    public JSonListByPageVo getAllByPage(String keyword, Object from, Object to, String modelType, int currPage, int pageSize) throws IOException {
        currPage = currPage - 1;
        //索引
        SearchRequest searchRequest = new SearchRequest("logstash*");
        SearchSourceBuilder sourceBuilder = new SearchSourceBuilder();

        //检索条件
        QueryBuilder builder;
        if ("".equals(keyword)) {
            builder = QueryBuilders.matchAllQuery();
        } else if (keyword.contains("id:")) {
            builder = QueryBuilders.termQuery("user_log_id", keyword.replace("id:", ""));
        } else {
            MultiMatchQueryBuilder multiMatchQueryBuilder = QueryBuilders.multiMatchQuery(("*" + keyword + "*"), "user_log_user_name", "user_log_module", "user_log_opt_result");
            builder = QueryBuilders.boolQuery().must(multiMatchQueryBuilder);
        }
        sourceBuilder.query(builder);

        //模块类型
        if (!"".equals(modelType)) {
            MatchQueryBuilder queryBuilder = QueryBuilders.matchQuery("user_log_module", modelType);
            sourceBuilder.query(QueryBuilders.boolQuery().must(queryBuilder));
        }

        //日期区间
        if (!"".equals(from.toString()) && !"".equals(to.toString())) {
            RangeQueryBuilder rangeQueryBuilder = QueryBuilders.rangeQuery("@timestamp").from(from).to(to);
            sourceBuilder.query(QueryBuilders.boolQuery().must(rangeQueryBuilder));
        }

        // 分页
        sourceBuilder.from(currPage * pageSize);
        sourceBuilder.size(pageSize);

        searchRequest.source(sourceBuilder);

        SearchResponse search = restHighLevelClient.search(searchRequest, RequestOptions.DEFAULT);

        //返回值封装
        JSonListByPageVo jSonListByPageVo = new JSonListByPageVo();
        jSonListByPageVo.setDataList(Arrays.stream(search.getHits().getHits()).map(SearchHit::getSourceAsMap).collect(Collectors.toList()));
        jSonListByPageVo.setTotalNum(search.getHits().getTotalHits().value);
        jSonListByPageVo.setTotalPage((search.getHits().getTotalHits().value + (pageSize - 1)) / pageSize);
        return jSonListByPageVo;
    }

    @Override
    public List<String> getModel() throws IOException {
        //选择索引
        SearchRequest searchRequest = new SearchRequest("logstash*");
        SearchSourceBuilder sourceBuilder = new SearchSourceBuilder();

        //分组查询user_log_module
        TermsAggregationBuilder termsAggregationBuilder = AggregationBuilders.terms("group_model").field("user_log_module.keyword");
        sourceBuilder.aggregation(termsAggregationBuilder);
        searchRequest.source(sourceBuilder);

        //检索
        SearchResponse search = restHighLevelClient.search(searchRequest, RequestOptions.DEFAULT);

        //解析
        Aggregations aggregations = search.getAggregations();
        Terms brandName = aggregations.get("group_model");
        return brandName.getBuckets().stream().map(MultiBucketsAggregation.Bucket::getKeyAsString).collect(Collectors.toList());
    }
