[系统运维]5、Ubuntu下使用Clion调用ffmpeg测试开发环境

基本思想：学习视频编解码，先从环境开始～

其实可以不用编译，因为系统库含有ffmpeg库可以直接跳到ngnix环境搭建～

一、先编译x264源码

ubuntu@ubuntu:~$ git clone https://github.com/mirror/x264
ubuntu@ubuntu:~/x264$ mkdir build
ubuntu@ubuntu:~/x264$./configure --enable-static  --prefix=build/
ubuntu@ubuntu:~/x264$make
ubuntu@ubuntu:~/x264$make install
ubuntu@ubuntu:~/x264/build$ tree -l
.
├── bin
│?? └── x264
├── include
│?? ├── x264_config.h
│?? └── x264.h
└── lib
    ├── libx264.a
    └── pkgconfig
        └── x264.pc

4 directories, 5 file

二、编译ffmpeg源码

ubuntu@ubuntu:~/FFmpeg$ export PKG_CONFIG_PATH=../x264/build/lib/pkgconfig

ubuntu@ubuntu:~/FFmpeg$ ./configure --prefix=build/ --enable-static --enable-encoder=libx264 --enable-libx264 --enable-nonfree --enable-muxers --enable-decoders --enable-demuxers --enable-parsers --enable-protocols --enable-neon --enable-hwaccels --enable-gpl --extra-cflags="-I../x264/build/include" --extra-ldflags="-L../x264/build/lib"

ubuntu@ubuntu:~/FFmpeg$ make -j8
ubuntu@ubuntu:~/FFmpeg/build$ tree -L 2
.
├── bin
│?? ├── ffmpeg
│?? ├── ffplay
│?? └── ffprobe
├── include
│?? ├── libavcodec
│?? ├── libavdevice
│?? ├── libavfilter
│?? ├── libavformat
│?? ├── libavutil
│?? ├── libswresample
│?? └── libswscale
├── lib
│?? ├── libavcodec.a
│?? ├── libavdevice.a
│?? ├── libavfilter.a
│?? ├── libavformat.a
│?? ├── libavutil.a
│?? ├── libswresample.a
│?? ├── libswscale.a
│?? └── pkgconfig
└── share
    ├── doc
    ├── ffmpeg
    └── man

15 directories, 10 files

ubuntu@ubuntu:~/FFmpeg/build$ tree -L 2
.
├── bin
│?? ├── ffmpeg
│?? ├── ffplay
│?? └── ffprobe
├── include
│?? ├── libavcodec
│?? ├── libavdevice
│?? ├── libavfilter
│?? ├── libavformat
│?? ├── libavutil
│?? ├── libswresample
│?? └── libswscale
├── lib
│?? ├── libavcodec.a
│?? ├── libavdevice.a
│?? ├── libavfilter.a
│?? ├── libavformat.a
│?? ├── libavutil.a
│?? ├── libswresample.a
│?? ├── libswscale.a
│?? └── pkgconfig
└── share
    ├── doc
    ├── ffmpeg
    └── man

15 directories, 10 files

三、搭建一下linux的nginx+ffmpeg流媒体服务器

ubuntu@ubuntu:~$ wget http://nginx.org/download/nginx-1.19.9.tar.gz
ubuntu@ubuntu:~$ tar -zxvf nginx-1.19.9.tar.gz
ubuntu@ubuntu:~$ cd nginx-1.19.9/
ubuntu@ubuntu:~/nginx-1.19.9$

ubuntu@ubuntu:~/nginx-1.19.9$ ./configure --add-module=nginx-rtmp-module
ubuntu@ubuntu:~/nginx-1.19.9$ make
ubuntu@ubuntu:~/nginx-1.19.9$ sudo make install
ubuntu@ubuntu:~/nginx-1.19.9$ sudo cp /usr/local/nginx/conf/nginx.conf /usr/local/nginx/conf/nginx.conf.bk

ubuntu@ubuntu:~/nginx-1.19.9$ sudo gedit /usr/local/nginx/conf/nginx.conf

覆盖内容

#user  nobody;
worker_processes  1;

#error_log  logs/error.log;
#error_log  logs/error.log  notice;
#error_log  logs/error.log  info;

#pid        logs/nginx.pid;


events {
    worker_connections  1024;
}
rtmp {
    server {

        listen 1935;

        chunk_size 4000;

    application play {
            play /usr/local/nginx/html/play;
        }

    application hls {
            live on;
            hls on;
            hls_path /usr/local/nginx/html/hls;
        hls_fragment 1s;
        hls_playlist_length 4s;
        }

    application live {
            live on;
        }
    }
}

http {
    include       mime.types;
    default_type  application/octet-stream;

    #log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
    #                  '$status $body_bytes_sent "$http_referer" '
    #                  '"$http_user_agent" "$http_x_forwarded_for"';

    #access_log  logs/access.log  main;

    sendfile        on;
    #tcp_nopush     on;

    #keepalive_timeout  0;
    keepalive_timeout  65;

    #gzip  on;

    server {
        listen       80;
        server_name  localhost;

     location /stat {
            rtmp_stat all;
            rtmp_stat_stylesheet stat.xsl;
        }

        location /stat.xsl {
            # XML stylesheet to view RTMP stats.
            # Copy stat.xsl wherever you want
            # and put the full directory path here
            root /usr/local/nginx-rtmp-module;
        }

        location /hls {
            # Serve HLS fragments
            types {
                application/vnd.apple.mpegurl m3u8;
                video/mp2t ts;
            }
            root /usr/local/nginx/html;
            add_header Cache-Control no-cache;
        }
        #charset koi8-r;

        #access_log  logs/host.access.log  main;

        location / {
            root   html;
            index  index.html index.htm;
        }

        #error_page  404              /404.html;

        # redirect server error pages to the static page /50x.html
        #
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root   html;
        }

        # proxy the PHP scripts to Apache listening on 127.0.0.1:80
        #
        #location ~ \.php$ {
        #    proxy_pass   http://127.0.0.1;
        #}

        # pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000
        #
        #location ~ \.php$ {
        #    root           html;
        #    fastcgi_pass   127.0.0.1:9000;
        #    fastcgi_index  index.php;
        #    fastcgi_param  SCRIPT_FILENAME  /scripts$fastcgi_script_name;
        #    include        fastcgi_params;
        #}

        # deny access to .htaccess files, if Apache's document root
        # concurs with nginx's one
        #
        #location ~ /\.ht {
        #    deny  all;
        #}
    }


    # another virtual host using mix of IP-, name-, and port-based configuration
    #
    #server {
    #    listen       8000;
    #    listen       somename:8080;
    #    server_name  somename  alias  another.alias;

    #    location / {
    #        root   html;
    #        index  index.html index.htm;
    #    }
    #}


    # HTTPS server
    #
    #server {
    #    listen       443 ssl;
    #    server_name  localhost;

    #    ssl_certificate      cert.pem;
    #    ssl_certificate_key  cert.key;

    #    ssl_session_cache    shared:SSL:1m;
    #    ssl_session_timeout  5m;

    #    ssl_ciphers  HIGH:!aNULL:!MD5;
    #    ssl_prefer_server_ciphers  on;

    #    location / {
    #        root   html;
    #        index  index.html index.htm;
    #    }
    #}

}

测试一下

ubuntu@ubuntu:~/nginx-1.19.9$ cd /usr/local/nginx/sbin/
ubuntu@ubuntu:/usr/local/nginx/sbin$ sudo ./nginx -c /usr/local/nginx/conf/nginx.conf
ubuntu@ubuntu:/usr/local/nginx/sbin$ ps -ef | grep nginx
root       31560    1667  0 21:58 ?        00:00:00 nginx: master process ./nginx -c /usr/local/nginx/conf/nginx.conf
nobody     31561   31560  0 21:58 ?        00:00:00 nginx: worker process
nobody     31562   31560  0 21:58 ?        00:00:00 nginx: cache manager process
ubuntu     31564    6052  0 21:58 pts/1    00:00:00 grep --color=auto nginx
ubuntu@ubuntu:/usr/local/nginx/sbin$

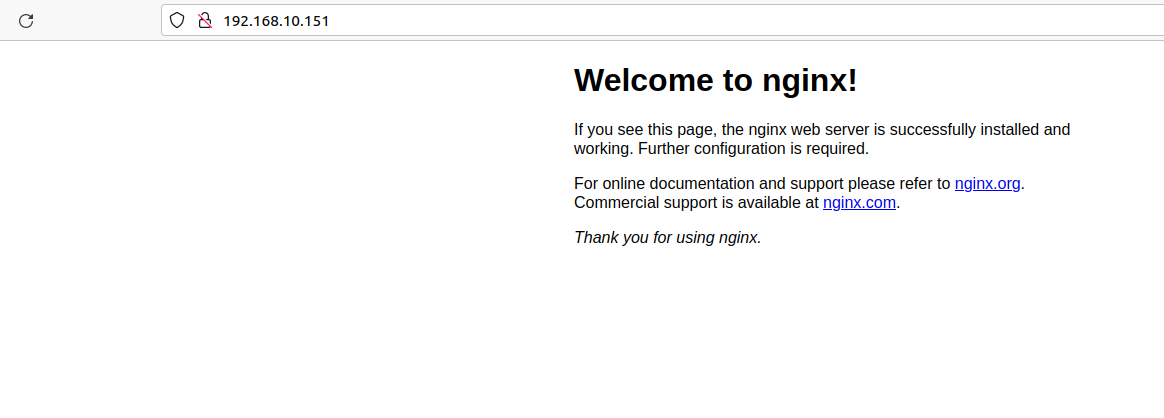

测试一下 輸入192.168.10.151:80

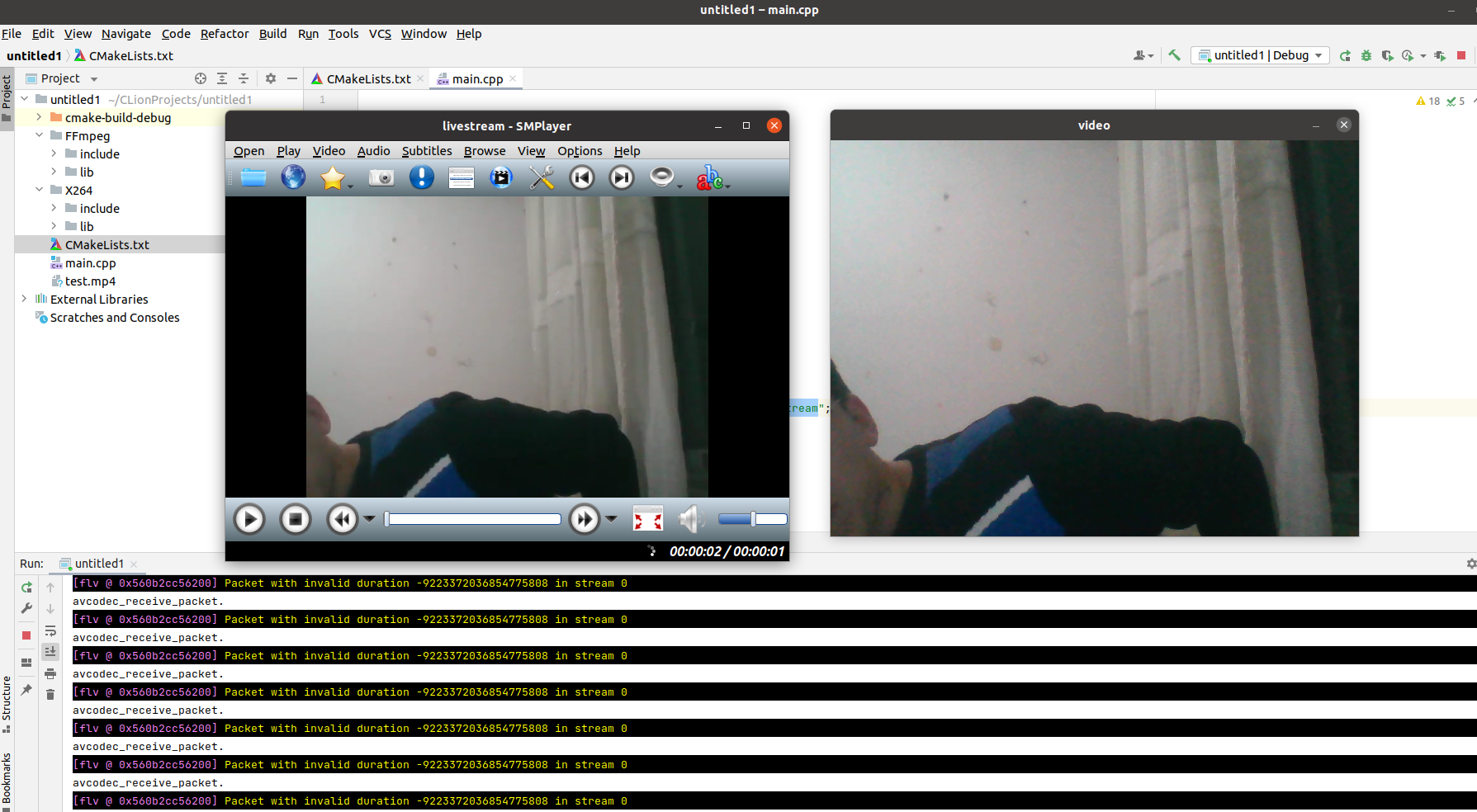

四、测试Clion代码

cmakelists.txt

cmake_minimum_required(VERSION 3.21)
project(untitled1)
find_package(OpenCV REQUIRED)
set(CMAKE_CXX_STANDARD 14)
add_library(libavformat STATIC IMPORTED)
set_target_properties(libavformat PROPERTIES IMPORTED_LOCATION ${CMAKE_SOURCE_DIR}/FFmpeg/lib/libavformat.a)

add_library(libavdevice STATIC IMPORTED)
set_target_properties(libavdevice PROPERTIES IMPORTED_LOCATION ${CMAKE_SOURCE_DIR}/FFmpeg/lib/libavdevice.a)


add_library(libavcodec STATIC IMPORTED)
set_target_properties(libavcodec PROPERTIES IMPORTED_LOCATION ${CMAKE_SOURCE_DIR}/FFmpeg/lib/libavcodec.a)

add_library(libavfilter STATIC IMPORTED)
set_target_properties(libavfilter PROPERTIES IMPORTED_LOCATION ${CMAKE_SOURCE_DIR}/FFmpeg/lib/libavfilter.a)

add_library(libavutil STATIC IMPORTED)
set_target_properties(libavutil PROPERTIES IMPORTED_LOCATION ${CMAKE_SOURCE_DIR}/FFmpeg/lib/libavutil.a)

add_library(libswresample STATIC IMPORTED)
set_target_properties(libswresample PROPERTIES IMPORTED_LOCATION ${CMAKE_SOURCE_DIR}/FFmpeg/lib/libswresample.a)
add_library(libswscale STATIC IMPORTED)
set_target_properties(libswscale PROPERTIES IMPORTED_LOCATION ${CMAKE_SOURCE_DIR}/FFmpeg/lib/libswscale.a)

add_library(libx264 STATIC IMPORTED)
set_target_properties(libx264 PROPERTIES IMPORTED_LOCATION ${CMAKE_SOURCE_DIR}/X264/lib/libx264.a)

add_executable(untitled1 main.cpp)
target_link_libraries(untitled1
        ${OpenCV_LIBS}
        libavformat
        libavdevice
        libavcodec
        libavfilter
        libavutil
        libswresample
        libswscale
        libx264
        -pthread
        -lz
        -llzma
        -ldl

        )

#-pthread
#-lz
#-lX11
#-llzma
#-lva
#-lbz2
#-lva-drm
#-lva-x11
#-lvdpau
#-lx264

假设不编译库，可以使用这样

cmake_minimum_required(VERSION 3.21)
project(untitled1)
find_package(OpenCV REQUIRED)
set(CMAKE_CXX_STANDARD 14)


add_executable(untitled1 main.cpp)
target_link_libraries(untitled1
        ${OpenCV_LIBS}
        -lavformat -lavcodec -lswscale -lavutil -lz
        )

main.cpp

#include <iostream>
#include <vector>
#include <opencv2/highgui.hpp>
#include <opencv2/video.hpp>
#include <opencv2/opencv.hpp>
extern "C"
{
#include <libavformat/avformat.h>
#include <libavcodec/avcodec.h>
#include <libavutil/imgutils.h>
#include <libswscale/swscale.h>
}
using namespace std;
using namespace cv;

int main() {
    const char* out_url = "rtmp://192.168.10.151:1935/live/livestream";

    // 注册所有网络协议
    avformat_network_init();

    // 输出的数据结构
    AVFrame* yuv = NULL;


    Mat frame;

    // 1.使用opencv 打开usb 摄像头
    VideoCapture video_ptr;
    video_ptr.open(0);

    if (!video_ptr.isOpened()) {
        cout << "camera open usb camera error" << endl;
        return -1;
    }

    cout << "open usb camera successful." << endl;

    int width = video_ptr.get(CAP_PROP_FRAME_WIDTH);
    int height = video_ptr.get(CAP_PROP_FRAME_HEIGHT);
    int fps = video_ptr.get(CAP_PROP_FPS);

    // 如果fps为0，这里就设置25。因为在fps=0时，调用avcodec_open2返回-22,
    // 参数不合法
    if (0 == fps) { fps = 25; }

    // 2.初始化格式转换上下文
    SwsContext* sws_context = NULL;
    sws_context = sws_getCachedContext(sws_context,
                                       width, height, AV_PIX_FMT_BGR24,    // 源格式
                                       width, height, AV_PIX_FMT_YUV420P,  // 目标格式
                                       SWS_BICUBIC,    // 尺寸变化使用算法
                                       0, 0, 0);

    if (NULL == sws_context) {
        cout << "sws_getCachedContext error" << endl;
        return -1;
    }



    // 3.初始化输出的数据结构
    yuv = av_frame_alloc();
    yuv->format = AV_PIX_FMT_YUV420P;
    yuv->width = width;
    yuv->height = height;
    yuv->pts = 0;

    // 分配yuv空间
    int ret_code = av_frame_get_buffer(yuv, 32);
    if (0 != ret_code) {
        cout << "  yuv init fail" << endl;
        return -1;
    }

    // 4.初始化编码上下文
    // 4.1找到编码器
    const AVCodec* codec = avcodec_find_encoder(AV_CODEC_ID_H264);
    if (NULL == codec) {
        cout << "Can't find h264 encoder." << endl;
        return -1;
    }

    // 4.2创建编码器上下文
    AVCodecContext* codec_context = avcodec_alloc_context3(codec);
    if (NULL == codec_context) {
        cout << "avcodec_alloc_context3 failed." << endl;
        return -1;
    }


    // 4.3配置编码器参数
    // vc->flags           |= AV_CODEC_FLAG_GLOBAL_HEADER;
    codec_context->codec_id = codec->id;
    codec_context->thread_count = 8;

    // 压缩后每秒视频的bit流 50k
    codec_context->bit_rate = 50 * 1024 * 8;
    codec_context->width = width;
    codec_context->height = height;
    codec_context->time_base = { 1, fps };
    codec_context->framerate = { fps, 1 };

    // 画面组的大小，多少帧一个关键帧
    codec_context->gop_size = 50;
    codec_context->max_b_frames = 0;
    codec_context->pix_fmt = AV_PIX_FMT_YUV420P;
    codec_context->qmin = 10;
    codec_context->qmax = 51;

    AVDictionary* codec_options = nullptr;
    //(baseline | high | high10 | high422 | high444 | main)
    av_dict_set(&codec_options, "profile", "baseline", 0);
    av_dict_set(&codec_options, "preset", "superfast", 0);
    av_dict_set(&codec_options, "tune", "zerolatency", 0);

    // 4.4打开编码器上下文
    ret_code = avcodec_open2(codec_context, codec, &codec_options);
    if (0 != ret_code) {

        return -1;
    }
    cout << "avcodec_open2 success!" << endl;

    // 5.输出封装器和视频流配置
    // 5.1创建输出封装器上下文
    // rtmp flv封装器
    AVFormatContext* format_context = nullptr;
    ret_code = avformat_alloc_output_context2(&format_context, 0, "flv", out_url);
    if (0 != ret_code) {

        return -1;
    }



    // 5.2添加视频流
    AVStream* vs = avformat_new_stream(format_context, NULL);
    if (NULL == vs) {
        cout << "avformat_new_stream failed." << endl;
        return -1;
    }

    vs->codecpar->codec_tag = 0;
    // 从编码器复制参数
    avcodec_parameters_from_context(vs->codecpar, codec_context);
    av_dump_format(format_context, 0, out_url, 1);

    // 打开rtmp 的网络输出IO
    ret_code = avio_open(&format_context->pb, out_url, AVIO_FLAG_WRITE);
    if (0 != ret_code) {
        cout << "avio_open failed." << endl;
        return -1;
    }

    // 写入封装头
    ret_code = avformat_write_header(format_context, NULL);
    if (0 != ret_code) {
        cout << "avformat_write_header failed." << endl;
        return -1;
    }

    AVPacket pack;
    memset(&pack, 0, sizeof(pack));
    int vpts = 0;
    uint8_t* in_data[AV_NUM_DATA_POINTERS] = { 0 };

    int in_size[AV_NUM_DATA_POINTERS] = { 0 };
    for (;;) {

        // 读取rtsp视频帧，解码视频帧
        video_ptr >> frame;
        // If the frame is empty, break immediately
        if (frame.empty()) break;

        imshow("video", frame);
        waitKey(1);

        // rgb to yuv
        in_data[0] = frame.data;
        // 一行（宽）数据的字节数
        in_size[0] = frame.cols * frame.elemSize();
        int h = sws_scale(sws_context, in_data, in_size, 0, frame.rows,
                          yuv->data, yuv->linesize);
        if (h <= 0) { continue; }

        // h264编码
        yuv->pts = vpts;
        vpts++;

        ret_code = avcodec_send_frame(codec_context, yuv);
        if (0 != ret_code) { continue; }

        ret_code = avcodec_receive_packet(codec_context, &pack);

        if (0 != ret_code || pack.buf !=nullptr) {//
            cout << "avcodec_receive_packet." << endl;
        }
        else {
            cout << "avcodec_receive_packet contiune." << endl;
            continue;
        }

        // 推流
        pack.pts = av_rescale_q(pack.pts, codec_context->time_base, vs->time_base);
        pack.dts = av_rescale_q(pack.dts, codec_context->time_base, vs->time_base);
        pack.duration = av_rescale_q(pack.duration,
                                     codec_context->time_base,
                                     vs->time_base);
        ret_code = av_interleaved_write_frame(format_context, &pack);
        if (0 != ret_code)
        {
            cout << "pack is error" << endl;
        }
        av_packet_unref(&pack);
        frame.release();
    }
    av_dict_free(&codec_options);
    avcodec_free_context(&codec_context);
    av_frame_free(&yuv);
    avio_close(format_context->pb);
    avformat_free_context(format_context);
    sws_freeContext(sws_context);
    video_ptr.release();


    destroyAllWindows();
    return 0;
}



测试结果 一推一拉

?开始基础知识学习之旅～
