环境信息：
主节点a: 109.188.14.210
主节点b： 109.188.14.205
虚拟ip：109.188.14.201
主主搭建：
mysql添加参数：
log-bin=mysql-bin
auto_increment_increment=2
auto_increment_offset=1
binlog-ignore=mysql
binlog-ignore=information_schema
binlog-ignore=performance_schema
character_set_server=utf8
a及执行，填b机ip
CREATE USER 'cp_user'@'109.188.14.210' IDENTIFIED WITH mysql_native_password BY 'master2018';
GRANT REPLICATION SLAVE ON *.* TO 'cp_user'@'109.188.14.210';
b及执行，填a机ip
CREATE USER 'cp_user'@'109.188.14.205' IDENTIFIED WITH mysql_native_password BY 'master2018';
GRANT REPLICATION SLAVE ON *.* TO 'cp_user'@'109.188.14.205';
a机执行，填b机ip
CHANGE MASTER TO
? ? ? ?MASTER_HOST='109.188.14.205',
? ? ? ?MASTER_USER='cp_user',
? ? ? ?MASTER_PASSWORD='master2018',
? ? ? ?MASTER_LOG_FILE='binlog.000006',
? ? ? ?MASTER_LOG_POS=688;
? ?start slave；? ??
b机执行，填a机ip
CHANGE MASTER TO
? ? ? ?MASTER_HOST='109.188.14.205',
? ? ? ?MASTER_USER='cp_user',
? ? ? ?MASTER_PASSWORD='master2018',
? ? ? ?MASTER_LOG_FILE='binlog.000006',
? ? ? ?MASTER_LOG_POS=688;
?start slave；? ??
? 两个节点都执行
tar 解压keepalived包
?yum install -y gcc gcc-c++ wget popt-devel openssl openssl-devel
?yum install -y libnl libnl-devel libnl3 libnl3-devel
?yum install -y libnfnetlink-devel
?./configure --sysconf=/etc
?make && make install
?systemctl enable keepalived.service
?cd /etc/keepalived/
?cp keepalived.conf.sample keepalived.conf.bak
?mv keepalived.conf.sample keepalived.conf
?vi keepalived.conf
?[root@mysql8182 keepalived]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
? ?router_id mysql-ha
}
vrrp_instance VI_1 {
? ? state BACKUP
? ? interface eth0
? ? virtual_router_id 210
? ? priority 100 #优先级，高优先级竞选为master
? ? advert_int 1
? ? nopreempt #设置为不抢占 注：这个配置只能设置在backup主机上，而且这个主机优先级要比另外一台高，另一台不要设置这个选项
? ? authentication {
? ? ? ? auth_type PASS
? ? ? ? auth_pass 123456
? ? }
? ? virtual_ipaddress {
? ? ? ? 109.188.14.201
? ? }
}
virtual_server 109.188.14.201 3306 {
? ? delay_loop 2
? ? lb_algo rr
? ? lb_kind DR
? ? persistence_timeout 60
? ? protocol TCP
? ? real_server 109.188.14.210 3306 {
? ? ? ? weight 1
? ? ? ? notify_down /etc/keepalived/mysql.sh
? ? ? ? TCP_CHECK {
? ? ? ? ? ? connect_port 3306
? ? ? ? ? ? connect_timeout 3
? ? ? ? ? ? nb_get_retry 2
? ? ? ? ? ? delay_before_retry 1
? ? ? ? }
? ? }
}
[root@mysql8182 keepalived]# cat /etc/keepalived/mysql.sh
#!/bin/bash
pkill keepalived
chmod 777 /etc/keepalived/mysql.sh
副节点配置keepalived.conf文件的时候注意要把?
real_server 109.188.14.210 3306改为 real_server 109.188.14.205 3306
virtual_router_id 210 改为virtual_router_id 205
priority 100改为priority 90
去掉nopreempt?
两个节点都操作
?/mysql/keepalived-2.2.7/bin/keepalived -f ?/etc/keepalived/keepalived.conf -D

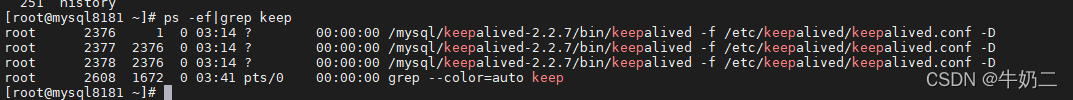

查看状态有三个如下进程：
?
