[系统运维]Jumpserver 源码搭建堡垒机 linux 持续更新

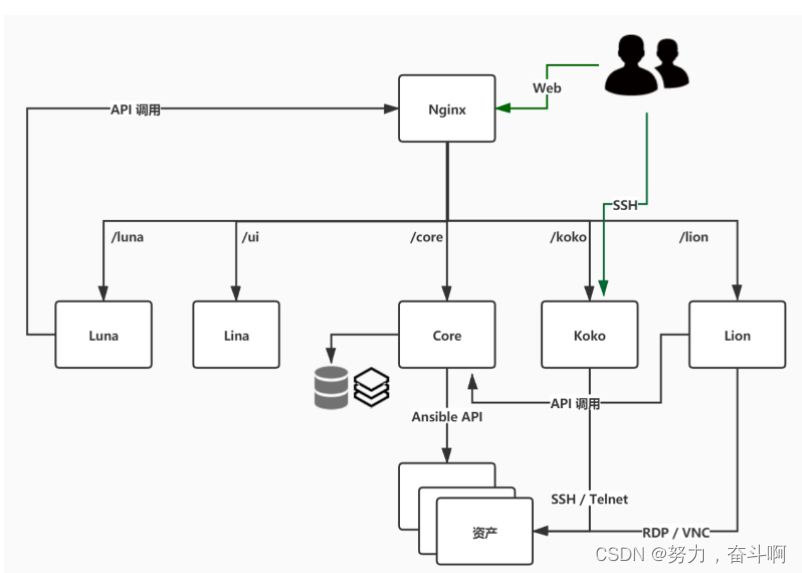

ing### 架构图

JumpServer 分为多个组件，大致的架构如上图所示。其中 Lina 和 Luna 为纯静态文件，最终由 nginx 整合，没有端口，core、koko、lion以服务的形式部署，有端口。
本文主要版本选择为2.15.3

组件版本

安装包下载地址

官网地址
Python3.8.12
Redis6.2.5
Core2.15.3
Nodejs12.2.0
Lina2.15.3
Luna
Go1.15
Koko2.15.3
Lion2.15.3
Nginx1.20.0
guacamole-server1.3.0
GeoLite2-City.mmdb
国内地址
Python3.8.12
Redis6.2.5
Core2.15.3
Nodejs12.2.0
Lina2.15.3
Luna2.15.3
Go1.15.1
Koko2.15.3
Lion2.15.3
Nginx1.20.0
guacamole-server1.3.0
GeoLite2-City.mmdb

本文主要搭建参考：https://docs.jumpserver.org/zh/master/dev/build/

环境介绍

部署Core

一、源码安装python3

1. 当前环境



2. 卸载自带的python3


rpm -qa|grep python3 |xargs rpm -e --allmatches --nodeps

3. 下载指定版本的python3


wget http://8.210.62.122/python/Python-3.8.12.tgz

4. 安装编译工具

yum -y install zlib-devel bzip2-devel openssl-devel ncurses-devel sqlite-devel readline-devel tk-devel gcc make gdbm-devel db4-devel libpcap-devel xz-devel libffi-devel

5. 解压

tar xf Python-3.8.12.tgz -C /usr/local/

6. 编译

cd /usr/local/Python-3.8.12
./configure --prefix=/usr/local/python3
make && make install

7. 配置环境变量

cat /etc/profile.d/python3.sh
export PYTHON_HOME=/usr/local/python3
export PATH=$PYTHON_HOME/bin:$PATH

python3 -V
Python 3.8.12

参考文章：https://blog.csdn.net/weixin_45717886/article/details/123992330
二、yum安装mysql
8. 配置mysql yum仓库
官网地址
国内地址

wget https://dev.mysql.com/get/mysql80-community-release-el7-1.noarch.rpm
rpm -ivh mysql80-community-release-el7-1.noarch.rpm

9. 修改安装mysql的yum源文件

[root@mysql ~]# vim /etc/yum.repos.d/mysql-community.repo
把安装5.7的源打开, 关闭安装8.0的源  1是开启 0是关闭
[root@mysql ~]# yum -y install mysql-community-server
[root@mysql ~]# systemctl start mysqld && systemctl enable mysqld

10. 获取密码

grep "password" /var/log/mysqld.log

参考文章：https://blog.csdn.net/weixin_45717886/article/details/103411025

11. 修改密码并创建授权用户

alter mysql.user '用户名'@'登入主机' identified by '密码';
create database jumpserver default charset utf8 collate utf8_general_ci;

grant all on jumpserver.* to 'jumpsever'@'127.0.0.1' identified by '密码';
grant all on jumpserver.* to 'jumpsever'@'localhost' identified by '密码';
grant all on jumpserver.* to 'jumpsever'@'172.18.%' identified by '密码'; #不是在同一台服务器时授权
flush privileges;

参考文章：https://editor.csdn.net/md/?articleId=103356082
三、安装redis

1. 下载安装包

curl -O https://download.redis.io/releases/redis-6.2.5.tar.gz  #需要什么版本 就修改后面数字

2. 解压

tar xf redis-6.2.5.tar.gz -C /usr/local/

3. 编译

cd /usr/local/redis-6.2.5/
make PREFIX=/usr/local/redis install

4. 配置环境变量

cat /etc/profile.d/redis.sh
export REDIS_HOME=/usr/local/redis
export PATH=$REDIS_HOME/bin:$PATH

source /etc/profile.d/redis.sh
redis-server --version
Redis server v=6.2.5 sha=00000000:0 malloc=jemalloc-5.1.0 bits=64 build=3ec1f34ab2699b91

5. redis配置文件

mkdir /usr/local/redis/{etc,data,log,run}  #创建目录
cp -ar /usr/local/redis-6.2.5/redis.conf /usr/local/redis/etc/  #拷贝redis配置文件

[root@localhost etc]# diff redis.conf /usr/local/redis-6.2.5/redis.conf
75c75
< bind  0.0.0.0  #绑定监听ip
---
> bind 127.0.0.1 -::1
257c257
< daemonize yes  #开启redis后台进程启动
---
> daemonize no
289c289
< pidfile /usr/local/redis/run/redis_6379.pid
---
> pidfile /var/run/redis_6379.pid
302c302
< logfile /usr/local/redis/log/redis.log
---
> logfile ""
454c454
< dir /usr/local/redis/data  #RDB AOF文件存放路径
---
> dir ./
902d901

```shell
#配置文件
cat redis.conf |grep -v -E "^#|^$"
bind  0.0.0.0
protected-mode yes
port 6379
tcp-backlog 511
timeout 0
tcp-keepalive 300
daemonize yes
pidfile /usr/local/redis/run/redis_6379.pid
loglevel notice
logfile /usr/local/redis/log/redis.log
databases 16
always-show-logo no
set-proc-title yes
proc-title-template "{title} {listen-addr} {server-mode}"
stop-writes-on-bgsave-error yes
rdbcompression yes
rdbchecksum yes
dbfilename dump.rdb
rdb-del-sync-files no
dir /usr/local/redis/data
replica-serve-stale-data yes
replica-read-only yes
repl-diskless-sync no
repl-diskless-sync-delay 5
repl-diskless-load disabled
repl-disable-tcp-nodelay no
replica-priority 100
acllog-max-len 128
lazyfree-lazy-eviction no
lazyfree-lazy-expire no
lazyfree-lazy-server-del no
replica-lazy-flush no
lazyfree-lazy-user-del no
lazyfree-lazy-user-flush no
oom-score-adj no
oom-score-adj-values 0 200 800
disable-thp yes
appendonly no
appendfilename "appendonly.aof"
appendfsync everysec
no-appendfsync-on-rewrite no
auto-aof-rewrite-percentage 100
auto-aof-rewrite-min-size 64mb
aof-load-truncated yes
aof-use-rdb-preamble yes
lua-time-limit 5000
slowlog-log-slower-than 10000
slowlog-max-len 128
latency-monitor-threshold 0
notify-keyspace-events ""
hash-max-ziplist-entries 512
hash-max-ziplist-value 64
list-max-ziplist-size -2
list-compress-depth 0
set-max-intset-entries 512
zset-max-ziplist-entries 128
zset-max-ziplist-value 64
hll-sparse-max-bytes 3000
stream-node-max-bytes 4096
stream-node-max-entries 100
activerehashing yes
client-output-buffer-limit normal 0 0 0
client-output-buffer-limit replica 256mb 64mb 60
client-output-buffer-limit pubsub 32mb 8mb 60
hz 10
dynamic-hz yes
aof-rewrite-incremental-fsync yes
rdb-save-incremental-fsync yes
jemalloc-bg-thread yes

6. 内核参数调优

vim /etc/sysctl.conf
net.core.somaxconn=32768    #表示socket监听（listen）的backlog上限 默认为128
net.ipv4.tcp_max_syn_backlog=32768
#backlog 参数控制的是三次握手后server端收到的client ack确认号之后的队列值，即全连接队列(accept queue)  默认为128
vm.overcommit_memory=1
#0表示内核会检查是否有足够的物理内存，有就允许，没有就拒绝； 默认为0
#1表示内核允许分配所有物理内存而不管当前内存使用状态如何；
#2表示内核允许分配超过物理内存和交换空间总和的内存。

大页内存动态分配，需要关闭让redis负责内存管理。
临时关闭
cat /sys/kernel/mm/transparent_hugepage/enabled
[always] madvise never
echo never > /sys/kernel/mm/transparent_hugepage/enabled
cat /sys/kernel/mm/transparent_hugepage/enabled
always madvise [never]
永久关闭
vim /etc/default/grub
GRUB_TIMEOUT=5
GRUB_DISTRIBUTOR="$(sed 's, release .*$,,g' /etc/system-release)"
GRUB_DEFAULT=saved
GRUB_DISABLE_SUBMENU=true
GRUB_TERMINAL_OUTPUT="console"
GRUB_CMDLINE_LINUX="rd.lvm.lv=centos/root rd.lvm.lv=centos/swap rhgb quiet transparent_hugepage=never"
GRUB_DISABLE_RECOVERY="true"

grub2-mkconfig -o /boot/grub2/grub.cfg
reboot  重启机器后使得设备的参数有效

cat /proc/cmdline
BOOT_IMAGE=/vmlinuz-3.10.0-1160.el7.x86_64 root=/dev/mapper/centos-root ro rd.lvm.lv=centos/root rd.lvm.lv=centos/swap rhgb quiet transparent_hugepage=never
[root@localhost ~]# cat /sys/kernel/mm/transparent_hugepage/enabled
always madvise [never]

部分文章参考：https://blog.51cto.com/u_8026776/2074544

6. 配置systemd管理redis服务
   创建启动用户

useradd redis -M -s /sbin/nologin
chown -R redis.redis /usr/local/redis

cat /usr/lib/systemd/system/redis.service
[Unit]
Description=Redis persistent key-value database
After=network.target

[Service]
ExecStart=/usr/local/redis/bin/redis-server /usr/local/redis/etc/redis.conf
Type=forking
User=redis
Group=redis
ExecReload=/bin/kill -s HUP $MAINPID
ExecStop=/bin/kill -s QUIT $MAINPID
PrivateTmp=true

[Install]
WantedBy=multi-user.target

systemctl daemon-reload
systemctl restart redis
systemctl enable redis

文章参考：https://blog.csdn.net/weixin_45717886/article/details/123754781

四、Core安装

1. 下载core

wget http://8.210.62.122/jumpserver/jumpserver-2.15.3.tar.gz

2. 解压core

tar -xf jumpserver-2.15.3.tar.gz -C /opt
cd /opt
mv jumpserver-2.15.3 jumpserver

3. 下载GeoLite2-City.mmdb文件

cd /opt/jumpserver
wget http://8.210.62.122/jumpserver/GeoLite2-City.mmdb -O apps/common/utils/geoip/GeoLite2-City.mmdb

4. 安装rpm依赖

yum -y install `cat requirements/rpm_requirements.txt`

5. 安装python依赖
   为 JumpServer 项目单独创建 python3 虚拟环境。

python3 -m venv /opt/py3
source /opt/py3/bin/activate

每次运行项目都需要先执行 source /opt/py3/bin/activate 载入此环境。
配置python3安装模块源

[root@jumpserver jumpserver]# cat ~/.pip/pip.conf
[global]
index-url=http://mirrors.cloud.aliyuncs.com/pypi/simple/

[install]
trusted-host=mirrors.cloud.aliyuncs.com

pip3 install -U pip
pip3 install --upgrade pip
python3 -m pip install --upgrade setuptools

文章参考：https://stackoverflow.com/posts/62500932/edit

6. 修改安装模块文件

[root@jumpserver jumpserver]# cat requirements/requirements.txt |grep huawei
#huaweicloud-sdk-python==1.0.21
注释这个模块 后面会手动安装

7. 安装python项目的相关模块

pip install -r requirements/requirements.txt

8. 手动安装huaweicloud-sdk-python模块

pip3 install huaweicloud-sdk-python

9. 修改core配置文件

cp config_example.yml config.yml

[root@jumpserver jumpserver]# diff config.yml config_example.yml
4c4
< SECRET_KEY: ******************************
---
> SECRET_KEY:
8c8
< BOOTSTRAP_TOKEN: ********************
---
> BOOTSTRAP_TOKEN:
13d12
< DEBUG: true
18d16
< LOG_LEVEL: DEBUG
25d22
< SESSION_EXPIRE_AT_BROWSER_CLOSE: true
41c38
< DB_PASSWORD: YingjiaN@123
---
> DB_PASSWORD:

完整版配置文件

# SECURITY WARNING: keep the secret key used in production secret!
# 加密密钥 生产环境中请修改为随机字符串，请勿外泄, 可使用命令生成
# $ cat /dev/urandom | tr -dc A-Za-z0-9 | head -c 49;echo
SECRET_KEY: **************************

# SECURITY WARNING: keep the bootstrap token used in production secret!
# 预共享Token coco和guacamole用来注册服务账号，不在使用原来的注册接受机制
# $ cat /dev/urandom | tr -dc A-Za-z0-9 | head -c 24;echo
BOOTSTRAP_TOKEN: *************

# Development env open this, when error occur display the full process track, Production disable it
# DEBUG 模式 开启DEBUG后遇到错误时可以看到更多日志
# DEBUG: true
DEBUG: true

# DEBUG, INFO, WARNING, ERROR, CRITICAL can set. See https://docs.djangoproject.com/en/1.10/topics/logging/
# 日志级别
# LOG_LEVEL: DEBUG
LOG_LEVEL: DEBUG
# LOG_DIR:

# Session expiration setting, Default 24 hour, Also set expired on on browser close
# 浏览器Session过期时间，默认24小时, 也可以设置浏览器关闭则过期
# SESSION_COOKIE_AGE: 86400
# SESSION_EXPIRE_AT_BROWSER_CLOSE: false
SESSION_EXPIRE_AT_BROWSER_CLOSE: true

# Database setting, Support sqlite3, mysql, postgres ....
# 数据库设置
# See https://docs.djangoproject.com/en/1.10/ref/settings/#databases

# SQLite setting:
# 使用单文件sqlite数据库
# DB_ENGINE: sqlite3
# DB_NAME:
# MySQL or postgres setting like:
# 使用Mysql作为数据库
DB_ENGINE: mysql
DB_HOST: 127.0.0.1
DB_PORT: 3306
DB_USER: jumpserver
DB_PASSWORD: *****
DB_NAME: jumpserver

# When Django start it will bind this host and port
# ./manage.py runserver 127.0.0.1:8080
# 运行时绑定端口
HTTP_BIND_HOST: 0.0.0.0
HTTP_LISTEN_PORT: 8080
WS_LISTEN_PORT: 8070

# Use Redis as broker for celery and web socket
# Redis配置
REDIS_HOST: 127.0.0.1
REDIS_PORT: 6379
# REDIS_PASSWORD:   开启后配置redis的登陆密码
# REDIS_DB_CELERY: 3
# REDIS_DB_CACHE: 4

# Use OpenID Authorization
# 使用 OpenID 进行认证设置
# AUTH_OPENID: False # True or False
# BASE_SITE_URL: None
# AUTH_OPENID_CLIENT_ID: client-id
# AUTH_OPENID_CLIENT_SECRET: client-secret
# AUTH_OPENID_PROVIDER_ENDPOINT: https://op-example.com/
# AUTH_OPENID_PROVIDER_AUTHORIZATION_ENDPOINT: https://op-example.com/authorize
# AUTH_OPENID_PROVIDER_TOKEN_ENDPOINT: https://op-example.com/token
# AUTH_OPENID_PROVIDER_JWKS_ENDPOINT: https://op-example.com/jwks
# AUTH_OPENID_PROVIDER_USERINFO_ENDPOINT: https://op-example.com/userinfo
# AUTH_OPENID_PROVIDER_END_SESSION_ENDPOINT: https://op-example.com/logout
# AUTH_OPENID_PROVIDER_SIGNATURE_ALG: HS256
# AUTH_OPENID_PROVIDER_SIGNATURE_KEY: None
# AUTH_OPENID_SCOPES: "openid profile email"
# AUTH_OPENID_ID_TOKEN_MAX_AGE: 60
# AUTH_OPENID_ID_TOKEN_INCLUDE_CLAIMS: True
# AUTH_OPENID_USE_STATE: True
# AUTH_OPENID_USE_NONCE: True
# AUTH_OPENID_SHARE_SESSION: True
# AUTH_OPENID_IGNORE_SSL_VERIFICATION: True
# AUTH_OPENID_ALWAYS_UPDATE_USER: True

# Use Radius authorization
# 使用Radius来认证
# AUTH_RADIUS: false
# RADIUS_SERVER: localhost
# RADIUS_PORT: 1812
# RADIUS_SECRET:

# CAS 配置
# AUTH_CAS': False,
# CAS_SERVER_URL': "http://host/cas/",
# CAS_ROOT_PROXIED_AS': 'http://jumpserver-host:port',
# CAS_LOGOUT_COMPLETELY': True,
# CAS_VERSION': 3,

# LDAP/AD settings
# LDAP 搜索分页数量
# AUTH_LDAP_SEARCH_PAGED_SIZE: 1000
#
# 定时同步用户
# 启用 / 禁用
# AUTH_LDAP_SYNC_IS_PERIODIC: True
# 同步间隔 (单位: 时) (优先）
# AUTH_LDAP_SYNC_INTERVAL: 12
# Crontab 表达式
# AUTH_LDAP_SYNC_CRONTAB: * 6 * * *
#
# LDAP 用户登录时仅允许在用户列表中的用户执行 LDAP Server 认证
# AUTH_LDAP_USER_LOGIN_ONLY_IN_USERS: False
#
# LDAP 认证时如果日志中出现以下信息将参数设置为 0 (详情参见：https://www.python-ldap.org/en/latest/faq.html)
# In order to perform this operation a successful bind must be completed on the connection
# AUTH_LDAP_OPTIONS_OPT_REFERRALS: -1

# OTP settings
# OTP/MFA 配置
# OTP_VALID_WINDOW: 0
# OTP_ISSUER_NAME: Jumpserver

# Perm show single asset to ungrouped node
# 是否把未授权节点资产放入到 未分组 节点中
# PERM_SINGLE_ASSET_TO_UNGROUP_NODE: False
#
# 同一账号仅允许在一台设备登录
# USER_LOGIN_SINGLE_MACHINE_ENABLED: False
#
# 启用定时任务
# PERIOD_TASK_ENABLED: True
#
# Windows 登录跳过手动输入密码
# WINDOWS_SKIP_ALL_MANUAL_PASSWORD: False

# 是否开启 Luna 水印
# SECURITY_WATERMARK_ENABLED: False

# 健康检查的token，默认是空
# HEALTH_CHECK_TOKEN: ''

# 浏览器关闭页面后，会话过期
# SESSION_EXPIRE_AT_BROWSER_CLOSE_FORCE: False

# 每次api请求，session续期
# SESSION_SAVE_EVERY_REQUEST: True

# 硬盘检查
# DISK_CHECK_ENABLED: True

# 仅允许用户从来源处登录
# ONLY_ALLOW_AUTH_FROM_SOURCE: False

# 仅允许已存在的用户登录，不允许第三方认证后，自动创建用户
# ONLY_ALLOW_EXIST_USER_AUTH: False

10. 处理国际化

rm -f apps/locale/zh/LC_MESSAGES/django.mo
python apps/manage.py compilemessages

11. 启动core
    后台运行可以加 -d，./jms start -d

./jms start

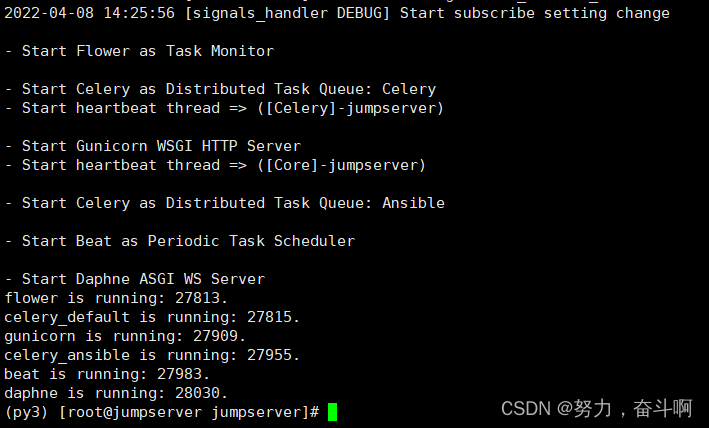

启动成功后效果

文章参考：https://www.pythonf.cn/read/100015
部署完core 退出venv环境 继续下面组件部署

部署Lina

1. 安装、解压nodejs

wget http://8.210.62.122/jumpserver/node-v12.20.0-linux-x64.tar.xz
tar xf node-v12.20.0-linux-x64.tar.xz -C /usr/local
cd /usr/local
mv node-v12.20.0-linux-x64 node

2. 配置nodejs环境变量

[root@jumpserver local]# cat /etc/profile.d/node.sh
export NODE_HOME=/usr/local/node
export PATH=$NODE_HOME/bin:$PATH

source /etc/profile.d/node.sh

3. 下载Lina

wget http://8.210.62.122/jumpserver/lina-2.15.3.tar.gz

4. 解压lina

tar xf lina-2.15.3.tar.gz -C /opt

5. 安装依赖

cd /opt/lina-2.15.3
npm config set sass_binary_site https://npm.taobao.org/mirrors/node-sass
npm config set registry https://registry.npm.taobao.org
npm install -g yarn
yarn config set registry https://registry.npm.taobao.org
yarn install

6. 修改lina的配置文件

vim .env.development
# 全局环境变量 请勿随意改动
ENV = 'development'

# base api
VUE_APP_BASE_API = ''
VUE_APP_PUBLIC_PATH = '/ui/'

# vue-cli uses the VUE_CLI_BABEL_TRANSPILE_MODULES environment variable,
# to control whether the babel-plugin-dynamic-import-node plugin is enabled.
# It only does one thing by converting all import() to require().
# This configuration can significantly increase the speed of hot updates,
# when you have a large number of pages.
# Detail:  https://github.com/vuejs/vue-cli/blob/dev/packages/@vue/babel-preset-app/index.js

VUE_CLI_BABEL_TRANSPILE_MODULES = true

# External auth
VUE_APP_LOGIN_PATH = '/core/auth/login/'
VUE_APP_LOGOUT_PATH = '/core/auth/logout/'


# Dev server for core proxy
VUE_APP_CORE_HOST = 'http://localhost:8080/' #修改成 Core 的 url 地址 **localhost修改为域名 后面stmp邮件发送回以这个域名，如果是localhost，客户将无法打开链接。  如果没改 云服务器记得开放8080安全组**
VUE_APP_CORE_WS = 'http://localhost:8070/' #localhost修改为域名
VUE_APP_ENV = 'development'

如果只是调试则使用如下命令运行，运行成功后会显示临时地址和端口号进行访问lina前端

yarn serve

如果是构建lina，使用如下命令进行编译生成lina包，直接和nginx部署

yarn build:prod

mv lina /opt

编译完成后在目录下面会生成lina文件夹，配合jumpserver.conf的lina配置部分进行配置即可，配置如下

server {
  listen 80;

  gzip on;
  gzip_min_length 1k;
  gzip_buffers 4 16k;
  #gzip_http_version 1.0;
  gzip_comp_level 8;
  gzip_types text/plain application/javascript application/x-javascript text/css application/xml text/javascript application/x-httpd-php image/jpeg image/gif image/png;
  gzip_vary off;
  gzip_static on;
  gzip_disable "MSIE [1-6].";

  location /ui/ {
    try_files $uri / /ui/index.html;
    alias /opt/lina/;
  }

  location / {
      rewrite ^/(.*)$ /ui/$1 last;
  }
}

部署Luna

1. 下载luna

wget http://8.210.62.122/jumpserver/luna-2.15.3.tar.gz

2. 解压

tar xf luna-2.15.3.tar.gz -C /opt

3. 安装依赖

cd /opt/luna-2.15.3
npm install
npm install --dev
npm rebuild node-sass

4. 修改配置文件

cp proxy.conf.json proxy.conf.json.bak
[root@jumpserver luna-2.15.3]# cat proxy.conf.json
{
  "/koko": {
    "target": "http://localhost:5000",  # KoKo 地址 分开部署时配置其他服务器的ip
    "secure": false,
    "ws": true
  },
  "/media/": {
    "target": "http://localhost:8080",  # Core 地址   生产使用配置域名  测试用公网ip
    "secure": false,
    "changeOrigin": true
  },
  "/api/": {
    "target": "http://localhost:8080",  # Core 地址  生产使用配置域名  测试用公网ip
    "secure": false,                    # https ssl 需要开启
    "changeOrigin": true
  },
  "/core": {
    "target": "http://localhost:8080",  # Core 地址  生产使用配置域名  测试用公网ip
    "secure": false,
    "changeOrigin": true
  },
  "/static": {
    "target": "http://localhost:8080",  # Core 地址  生产使用配置域名  测试用公网ip
    "secure": false,
    "changeOrigin": true
  },
  "/lion": {
    "target": "http://localhost:9529",  # Lion 地址 分开部署时配置其他服务器的ip
    "secure": false,
    "pathRewrite": {
      "^/lion/monitor": "/monitor"
    },
    "ws": true,
    "changeOrigin": true
  },
  "/omnidb": {
    "target": "http://localhost:8082",
    "secure": false,
    "ws": true,
    "changeOrigin": true
  }
}

同lina一样，如果只是调试运行，运行如下命令：

npm install -g @angular/cli #选YES
ng servre #直接执行会报错

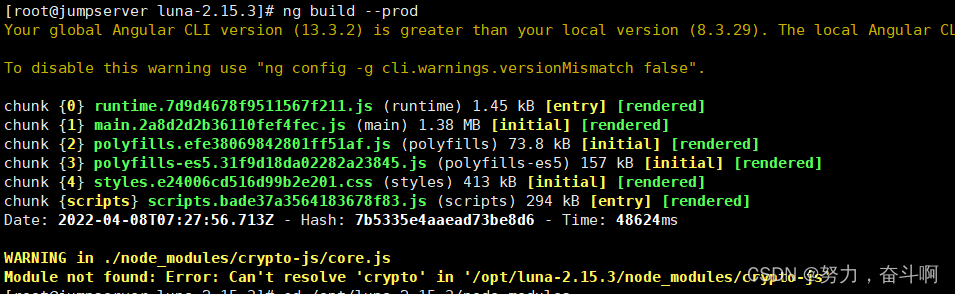

如果是构建luna，则运行如下命令

ng build --prod

缺少这个模块，手动下载

npm install crypto-js

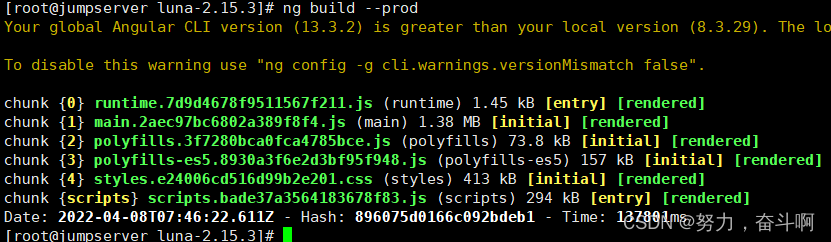

再次构建
ng build --prod

[root@jumpserver luna-2.15.3]# cat nginx.conf
server {
  listen 80;

  location /luna/ {
    try_files $uri / /index.html;
    alias /opt/luna/;
  }
}

部署Koko

1. 安装、解压go

wget http://8.210.62.122/jumpserver/go1.15.linux-amd64.tar.gz
tar -xf go1.15.linux-amd64.tar.gz -C /usr/local/

2. 配置go环境变量

[root@jumpserver luna-2.15.3]# cat /etc/profile.d/go.sh
export GO_HOME=/usr/local/go
export PATH=$GO_HOME/bin:$PATH

source /etc/profile.d/go.sh

3. 下载、解压koko

wget http://8.210.62.122/jumpserver/koko-2.15.3.tar.gz
tar xf koko-2.15.3.tar.gz -C /opt

4. 编译

/opt/koko-2.15.3
make

报错执行

go env -w GOPROXY=https://goproxy.cn,direct

重新编译

make clean
make

会在build目录下生成该文件

5. 修改koko配置文件

tar xzf koko---linux-amd64.tar.gz
cd koko---linux-amd64
[root@jumpserver koko---linux-amd64]# pwd
/opt/koko-2.15.3/build/koko---linux-amd64
cp config_example.yml config.yml

[root@jumpserver koko---linux-amd64]# cat config.yml
# 项目名称, 会用来向Jumpserver注册, 识别而已, 不能重复
# NAME:

# Jumpserver项目的url, api请求注册会使用
CORE_HOST: http://127.0.0.1:8080   # Core 的地址

# Bootstrap Token, 预共享秘钥, 用来注册coco使用的service account和terminal
# 请和jumpserver 配置文件中保持一致，注册完成后可以删除
BOOTSTRAP_TOKEN: ********  # 和 Core config.yml 的值保持一致

# 启动时绑定的ip, 默认 0.0.0.0
BIND_HOST: 0.0.0.0

# 监听的SSH端口号, 默认2222
SSHD_PORT: 2222            # 使用 0.0.0.0:2222

# 监听的HTTP/WS端口号，默认5000
HTTPD_PORT: 5000           # 使用 0.0.0.0:5000

# 项目使用的ACCESS KEY, 默认会注册,并保存到 ACCESS_KEY_STORE中,
# 如果有需求, 可以写到配置文件中, 格式 access_key_id:access_key_secret
# ACCESS_KEY: null

# ACCESS KEY 保存的地址, 默认注册后会保存到该文件中
# ACCESS_KEY_FILE: data/keys/.access_key

# 设置日志级别 [DEBUG, INFO, WARN, ERROR, FATAL, CRITICAL]
LOG_LEVEL: DEBUG           # 开发建议设置 DEBUG, 生产环境推荐使用 ERROR

# SSH连接超时时间 (default 15 seconds)
# SSH_TIMEOUT: 15

# 语言 [en,zh]
# LANGUAGE_CODE: zh

# SFTP的根目录, 可选 /tmp, Home其他自定义目录
# SFTP_ROOT: /tmp

# SFTP是否显示隐藏文件
# SFTP_SHOW_HIDDEN_FILE: false

# 是否复用和用户后端资产已建立的连接(用户不会复用其他用户的连接)
# REUSE_CONNECTION: true

# 资产加载策略, 可根据资产规模自行调整. 默认异步加载资产, 异步搜索分页; 如果为all, 则资产全部加载, 本地搜索分页.
# ASSET_LOAD_POLICY:

# zip压缩的最大额度 (单位: M)
# ZIP_MAX_SIZE: 1024M

# zip压缩存放的临时目录 /tmp
# ZIP_TMP_PATH: /tmp

# 向 SSH Client 连接发送心跳的时间间隔 (单位: 秒)，默认为30, 0则表示不发送
# CLIENT_ALIVE_INTERVAL: 30

# 向资产发送心跳包的重试次数，默认为3
# RETRY_ALIVE_COUNT_MAX: 3

# 会话共享使用的类型 [local, redis], 默认local
# SHARE_ROOM_TYPE: local

# Redis配置
# REDIS_HOST: 127.0.0.1      # 如果需要部署多个 koko, 需要通过 redis 来保持会话
# REDIS_PORT: 6379
# REDIS_PASSWORD:
# REDIS_CLUSTERS:
# REDIS_DB_ROOM:
# 是否开启本地转发 (目前仅对 vscode remote ssh 有效果)
# ENABLE_LOCAL_PORT_FORWARD: false

# 是否开启 针对 vscode 的 remote-ssh 远程开发支持 (前置条件: 必须开启 ENABLE_LOCAL_PORT_FORWARD )
# ENABLE_VSCODE_SUPPORT: false

6. 启动koko
   后台运行可以加 -d，./koko -d

./koko

部署Lion

Lion 使用了 Apache 软件基金会的开源项目 Guacamole，JumpServer 使用 Golang 和 Vue 重构了 Guacamole 实现 RDP/VNC 协议跳板机功能。

1. 下载、解压guacamole-server

wget http://8.210.62.122/jumpserver/guacamole-server-1.3.0.tar.gz
tar xf guacamole-server-1.3.0.tar.gz -C /opt

2. 下载依赖

yum -y localinstall --nogpgcheck https://mirrors.aliyun.com/rpmfusion/free/el/rpmfusion-free-release-7.noarch.rpm
yum install -y cairo-devel libjpeg-turbo-devel libpng-devel libtool uuid-devel
yum install -y ffmpeg-devel freerdp-devel pango-devel libssh2-devel libtelnet-devel libvncserver-devel libwebsockets-devel pulseaudio-libs-devel openssl-devel libvorbis-devel libwebp-devel

3. 构建 guacd

./configure --with-init-dir=/etc/init.d
make
make install
ldconfig

如果希望使用 systemd 管理, 可以使用 ./configure --with-systemd-dir=/etc/systemd/system/

./configure --with-systemd-dir=/etc/systemd/system/
make
make install
systemctl daemon-reload

4. 下载、解压lion

wget http://8.210.62.122/jumpserver/lion-v2.15.3-linux-amd64.tar.gz
tar xf lion-v2.15.3-linux-amd64.tar.gz -C /opt

5. 修改lion配置文件

cd /opt/lion-v2.15.3-linux-amd64
cp config_example.yml config.yml

# 项目名称, 会用来向Jumpserver注册, 识别而已, 不能重复
# NAME: {{ Hostname }}

# Jumpserver项目的url, api请求注册会使用
CORE_HOST: http://127.0.0.1:8080

# Bootstrap Token, 预共享秘钥, 用来注册使用的service account和terminal
# 请和jumpserver 配置文件中保持一致，注册完成后可以删除
BOOTSTRAP_TOKEN: ********

# 启动时绑定的ip, 默认 0.0.0.0
# BIND_HOST: 0.0.0.0
BIND_HOST: 0.0.0.0

# 监听的HTTP/WS端口号，默认8081
# HTTPD_PORT: 8081
HTTPD_PORT: 8081

# 设置日志级别 [DEBUG, INFO, WARN, ERROR, FATAL, CRITICAL]
# LOG_LEVEL: INFO
LOG_LEVEL: DEBUG

# Guacamole Server ip， 默认127.0.0.1
# GUA_HOST: 127.0.0.1

# Guacamole Server 端口号，默认4822
# GUA_PORT: 4822

# 会话共享使用的类型 [local, redis], 默认local
# SHARE_ROOM_TYPE: local

# Redis配置
# REDIS_HOST: 127.0.0.1
# REDIS_PORT: 6379
# REDIS_PASSWORD:
# REDIS_DB_ROOM:

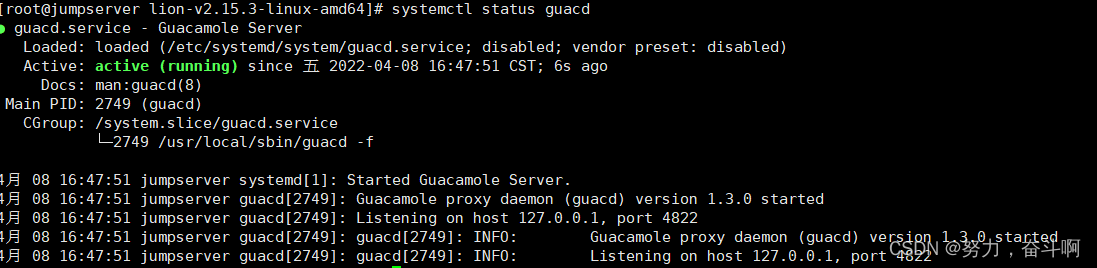

6. 启动Guacd服务

systemctl restart guacd
systemctl enable guacd

7. 启动Lion

./lion

放到后台启动

部署Nginx

1. 安装nginx

wget http://8.210.62.122/nginx/scripts/install_ngix.sh
bash install_ngix.sh
[root@jumpserver lion-v2.15.3-linux-amd64]# /usr/local/nginx/sbin/nginx -V
nginx version: nginx/1.20.0
built by gcc 4.8.5 20150623 (Red Hat 4.8.5-44) (GCC)
built with OpenSSL 1.0.2k-fips  26 Jan 2017
TLS SNI support enabled
configure arguments: --prefix=/usr/local/nginx --sbin-path=/usr/local/nginx/sbin/nginx --conf-path=/usr/local/nginx/conf/nginx.conf --error-log-path=/var/log/nginx/error.log --http-log-path=/var/log/nginx/access.log --pid-path=/var/run/nginx/nginx.pid --lock-path=/var/lock/nginx.lock --user=nginx --group=nginx --with-http_ssl_module --with-http_stub_status_module --with-http_gzip_static_module --http-client-body-temp-path=/var/tmp/nginx/client/ --http-proxy-temp-path=/var/tmp/nginx/proxy/ --http-fastcgi-temp-path=/var/tmp/nginx/fcgi/ --http-uwsgi-temp-path=/var/tmp/nginx/uwsgi --http-scgi-temp-path=/var/tmp/nginx/scgi --with-pcre
##可查看安装目录 配置文件目录

2. 修改nginx.conf配置文件

[root@jumpserver conf]# cat nginx.conf |grep -Ev "^$|^*#"
user  nginx;
worker_processes  auto;
error_log  /var/log/nginx/error.log;
pid        /tmp/nginx/nginx.pid;
events {
    worker_connections  10240;
}
http {
    include       mime.types;
    default_type  application/octet-stream;
    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for"';
    access_log  /var/log/nginx/access.log  main;
    sendfile       on;
    tcp_nopush     on;
    tcp_nodelay         on;
    keepalive_timeout   65;
    types_hash_max_size 2048;
    include /usr/local/nginx/conf/conf.d/*.conf;

3. 修改jumpserver.conf配置文件

[root@jumpserver conf]# cat conf.d/jumpserver.conf
server {
  listen 80;
  # server_name _;

  gzip on;
  gzip_min_length 1k;
  gzip_buffers 4 16k;
  #gzip_http_version 1.0;
  gzip_comp_level 8;
  gzip_types text/plain application/javascript application/x-javascript text/css application/xml text/javascript application/x-httpd-php image/jpeg image/gif image/png;
  gzip_vary off;
  gzip_static on;
  gzip_disable "MSIE [1-6].";

  client_max_body_size 5000m; #文件大小限制

  # Luna 配置
  location /luna/ {
    #proxy_pass http://luna:4200;
    try_files $uri / /index.html;
    alias /opt/dist/;
  }

  # Core data 静态资源
  location /media/replay/ {
    add_header Content-Encoding gzip;
    root /opt/jumpserver/data/;
  }

  location /media/ {
    root /opt/jumpserver/data/;
  }

  location /static/ {
    root /opt/jumpserver/data/;
  }

  # KoKo Lion 配置
  location /koko/ {
    proxy_pass       http://localhost:5000;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_set_header Host $host;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_http_version 1.1;
    proxy_buffering off;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection "upgrade";
  }

  # lion 配置
  location /lion/ {
    proxy_pass http://localhost:8081;
    proxy_buffering off;
    proxy_request_buffering off;
    proxy_http_version 1.1;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection $http_connection;
    proxy_ignore_client_abort on;
    proxy_connect_timeout 600;
    proxy_send_timeout 600;
    proxy_read_timeout 600;
    send_timeout 6000;
  }

  # Core 配置
  location /ws/ {
    proxy_pass http://localhost:8070;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_set_header Host $host;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_http_version 1.1;
    proxy_buffering off;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection "upgrade";
  }

  location /api/ {
    proxy_pass http://localhost:8080;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_set_header Host $host;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
  }

  location /core/ {
    proxy_pass http://localhost:8080;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_set_header Host $host;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
  }

  # 前端 Lina
  location /ui/ {
#    proxy_pass http://localhost:9528;
#    proxy_set_header X-Real-IP $remote_addr;
#    proxy_set_header Host $host;
#    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
     try_files $uri / /ui/index.html;
     alias /opt/lina/;
  }

  location / {
    rewrite ^/(.*)$ /ui/$1 last;
  }
}

4. nginx 配置检查

[root@jumpserver conf]# /usr/local/nginx/sbin/nginx -t
nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful
#创建nginx命令软连接
ln -s /usr/local/nginx/sbin/nginx /usr/bin/nginx

由于nginx.cof中pid目录不存在

mkdir /tmp/nginx

5. 启动nginx

systemctl restart nginx

文章参考：https://www.jianshu.com/p/5a583c67e8aa
文章参考：https://blog.csdn.net/IT_ZRS/article/details/120587671
文章参考：https://www.jianshu.com/p/5a583c67e8aa
文章参考：https://blog.csdn.net/IT_ZRS/article/details/120587671
文章参考：https://blog.csdn.net/u013896064/article/details/122919250
文章参考：https://www.pythonf.cn/read/100015
文章参考：https://blog.csdn.net/weixin_38623994/article/details/106920048

使用文档待建

《新程序员》：云原生和全面数字化实践

50位技术专家共同创作，文字、视频、音频交互阅读
