[root@localhost ~]# systemctl stop firewalld.service
[root@localhost ~]# systemctl disable firewalld.service
Removed symlink /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed symlink /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
[root@localhost ~]# setenforce 0
[root@localhost ~]#

2.修改主机名

[root@localhost ~]# hostnamectl set-hostname master
[root@localhost ~]# su
[root@master ~]#

3.映射

[root@master ~]# vim /etc/hosts


192.168.29.55 master
192.168.29.11 node1
192.168.29.66 node2

三.部署（每一台设备都进行相同操作）

1.安装docker（并设置开机自启）
2.安装kubeadm、kubelet核kubectl

cat > /etc/yum.repos.d/kubernetes.repo << EOF
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

3.指定版本

yum install -y kubelet-1.15.0 kubeadm-1.15.0 kubectl-1.15.0


#查看版本

rpm -qa | grep kube




#设置开机自启动
systemctl enable kubelet

4.关闭swap分区


swapoff -a
sed -i 's/.*swap.*/#&/' /etc/fstab
cat <<EOF >  /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF
sysctl --system

四.master节点操作

1.初始化


mkdir k8s && cd k8s
kubeadm init \
--apiserver-advertise-address=192.168.29.55 \        #修改为master节点IP
--image-repository registry.aliyuncs.com/google_containers \
--kubernetes-version v1.15.0 \
--service-cidr=10.1.0.0/16 \
--pod-network-cidr=10.244.0.0/16

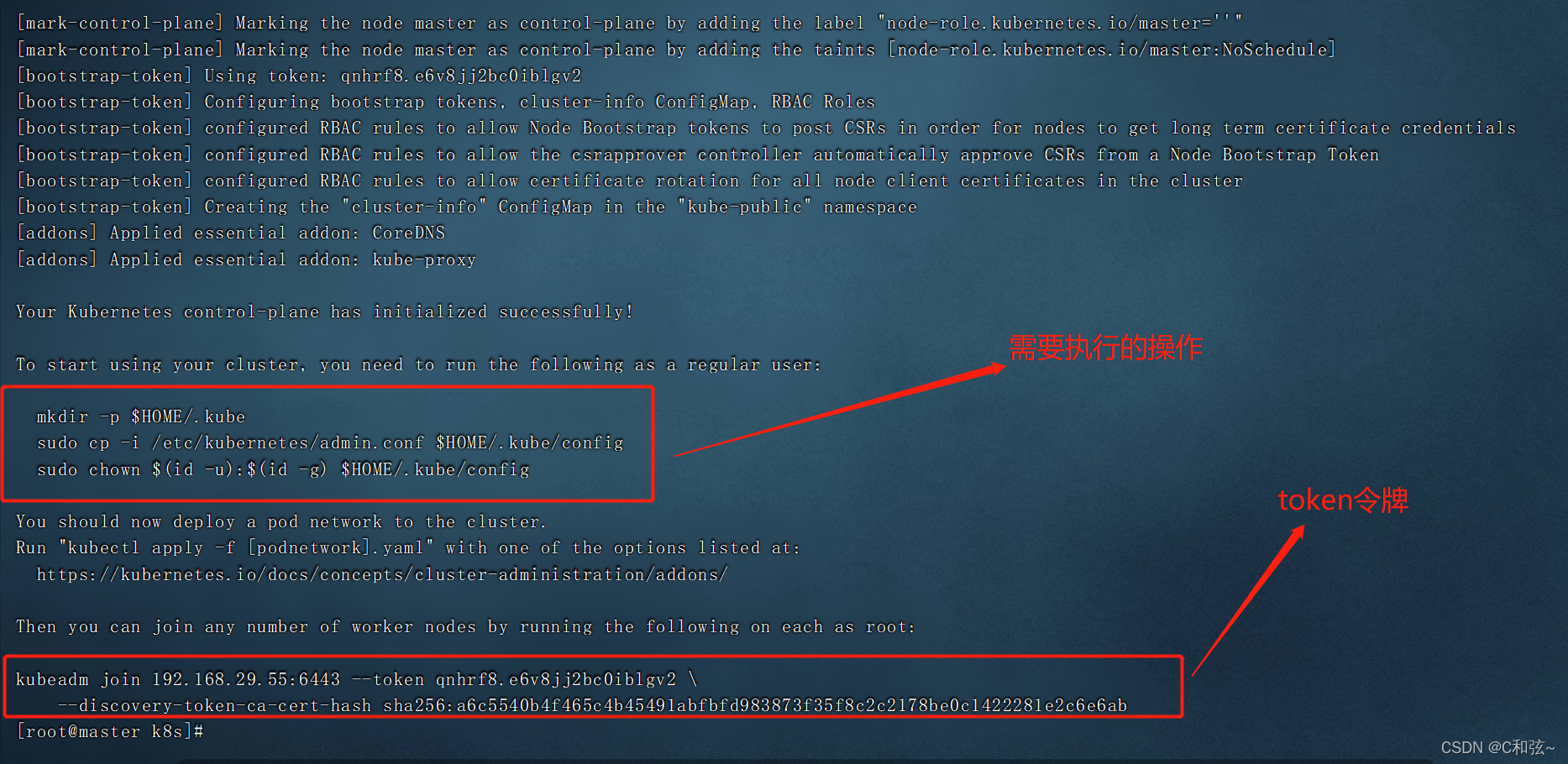

初始化成功的页面

2.执行初始化完成后提示的操作

 mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

3.安装网络插件（本案例中使用的是flannel）

[root@master k8s]# kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/a70459be0084506e4ec919aa1c114638878db11b/Documentation/kube-flannel.yml

4.查看一下主件信息

[root@master k8s]# kubectl get cs
NAME                 STATUS    MESSAGE             ERROR
scheduler            Healthy   ok
controller-manager   Healthy   ok
etcd-0               Healthy   {"health":"true"}
[root@master k8s]# kubectl get node
NAME     STATUS   ROLES    AGE     VERSION
master   Ready    master   4m58s   v1.15.0
[root@master k8s]#

五.node节点操作

1.添加网络插件（flannel）

#获取镜像
docker pull lizhenliang/flannel:v0.11.0-amd64

2.加入集群

#使用master节点初始化是生成的令牌加入

kubeadm join 192.168.29.55:6443 --token qnhrf8.e6v8jj2bc0iblgv2 \
    --discovery-token-ca-cert-hash sha256:a6c5540b4f465c4b45491abfbfd983873f35f8c2c2178be0c1422281e2c6e6ab

#默认token有效期为24小时，当过期之后，该token就不可用了，需要重新创建token，命令如下

kubeadm token create --print-join-command

3.回到master节点检查node节点是否接入成功，节点和组件状态是否正常

[root@master k8s]# kubectl get node
NAME     STATUS   ROLES    AGE   VERSION
master   Ready    master   11m   v1.15.0
node1    Ready    <none>   42s   v1.15.0
node2    Ready    <none>   38s   v1.15.0
[root@master k8s]# kubectl get cs
NAME                 STATUS    MESSAGE             ERROR
controller-manager   Healthy   ok
scheduler            Healthy   ok
etcd-0               Healthy   {"health":"true"}
[root@master k8s]#

4. 给node节点打标签（master节点上操作）

#打node标签
kubectl label node node1 node-role.kubernetes.io/node=work
kubectl label node node2 node-role.kubernetes.io/node=work

5.查看部署结果（master节点操作）

[root@master k8s]# kubectl get node
NAME     STATUS   ROLES    AGE     VERSION
master   Ready    master   16m     v1.15.0
node1    Ready    node     4m49s   v1.15.0
node2    Ready    node     4m45s   v1.15.0
[root@master k8s]# kubectl get cs
NAME                 STATUS    MESSAGE             ERROR
controller-manager   Healthy   ok
scheduler            Healthy   ok
etcd-0               Healthy   {"health":"true"}
[root@master k8s]# kubectl get pod -A
NAMESPACE     NAME                             READY   STATUS    RESTARTS   AGE
kube-system   coredns-bccdc95cf-45wc2          1/1     Running   0          17m
kube-system   coredns-bccdc95cf-8vztt          1/1     Running   0          17m
kube-system   etcd-master                      1/1     Running   0          16m
kube-system   kube-apiserver-master            1/1     Running   0          15m
kube-system   kube-controller-manager-master   1/1     Running   0          16m
kube-system   kube-flannel-ds-amd64-cdg7d      1/1     Running   0          6m8s
kube-system   kube-flannel-ds-amd64-q44h7      1/1     Running   0          13m
kube-system   kube-flannel-ds-amd64-xmc9w      1/1     Running   0          6m5s
kube-system   kube-proxy-k88l9                 1/1     Running   0          17m
kube-system   kube-proxy-kwtgz                 1/1     Running   0          6m5s
kube-system   kube-proxy-vvswm                 1/1     Running   0          6m8s
kube-system   kube-scheduler-master            1/1     Running   0          16m
[root@master k8s]#
